Battery GSM UltraDIAL Alarm with 1 x BT PIR

The UltraDIAL IP66 Standalone 3G GSM Alarm is a battery-powered, covert security solution supplied with a wireless BT PIR featuring a powerful 130dB built-in siren. When triggered, it contacts up to three key-holders by phone call and SMS. The kit includes two remote controls, making it ideal for workshops, garages, caravans, boats, rental homes, and more.

How It Works

• The system includes a 3G GSM UltraDIAL Covert Alarm Dialler and a wireless PIR with siren.

• Both devices are wirelessly linked and arm/disarm together using the supplied remotes.

• When the PIR detects movement, it silently triggers the UltraDIAL, which begins contacting key-holders, before activating its built-in siren.

• If additional PIRs or sirens are paired (no limit), all devices sound simultaneously.

• For maximum security, hide or lock away the UltraDIAL—thanks to its wireless, battery-powered design, it can be easily concealed out of reach.

Applications

Perfect for:

• Workshops, sheds & garages

• Caravans & motorhomes

• Boats & cabins

• New builds & renovation sites

• Rental & temporary homes

• Exhibition stands

Communication & SIM Options

• Operates on the mobile network via standard SIM card (PAYG or contract).

• Calls and sends SMS alerts to up to 3 key-holders (your own pre-recorded message is played during calls).

• Optional roaming SIM cards are available, ensuring strong coverage across all major UK networks.

• Or, use your own preferred SIM provider.

Expandable Security

• Pair with unlimited additional devices such as:

  • Indoor battery sirens

  • Outdoor solar/battery sirens & strobes

  • Standard PIRs (with or without hood)

  • UltraPIR detectors (with or without SIM in silent mode)

  • Wireless door contacts

• Covers multiple buildings up to 100m line-of-sight range (40–50m in typical use).

BT PIR Features

• Built-in 130dB siren

• Detection range: 8m

• Coverage: 120° horizontal / 90° vertical

• Entry delay: 5 seconds

• Exit delay: 30 seconds

• Siren duration: 60 seconds (remains armed until disarmed)

• Power: 3 x AA batteries (supplied)

• Battery life: 12–18 months

• Size: 68 (W) x 108 (H) x 36 (D) mm

Arming & Disarming

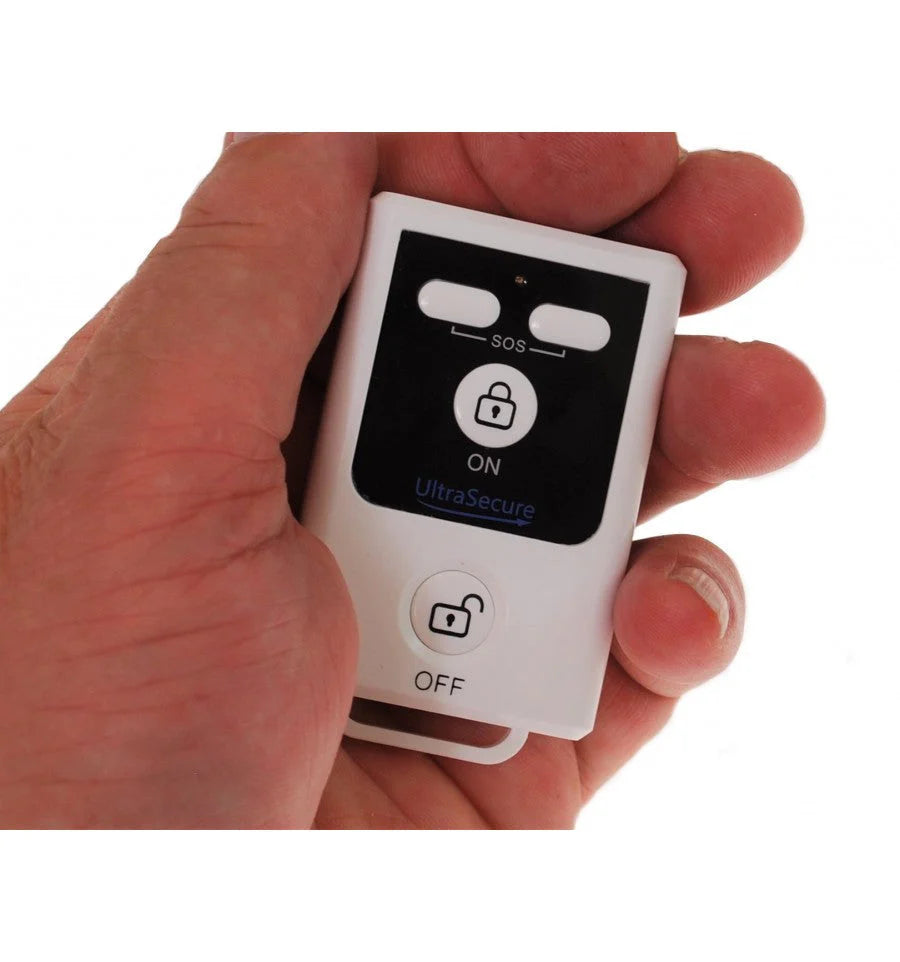

• Controlled by 2 supplied remote controls (up to 100m range).

• Supports up to 9 remote controls per system.

• If connected to 5V external power, the alarm can also be controlled by SMS commands.

• Built-in 30-second exit delay for easy operation.

Key Features

• Silent Triggering: UltraDIAL contacts key-holders before any siren activates.

• Custom Message: Record a 30-second voice alert for phone calls.

• Flexible Power: Runs on 3 x AA lithium batteries (6 months) or optional 5V DC supply with battery backup.

• Weatherproof: IP66-rated for outdoor installations.

• Notifications: Low battery alerts, mains failure alerts, optional weekly status report.

• Security: Supplied with 4 security screws and tool; low-profile covert branding.

• Easy Setup: Simple keypad programming.

Kit Includes

• 1 x UltraDIAL GSM Alarm

• 1 x BT PIR & Mounting Bracket

• 2 x Remote Controls

• 3 x Lithium AA Batteries (for UltraDIAL)

• 3 x AA Batteries (for PIR)

• 1 x Manual

• 1 x Security Tool

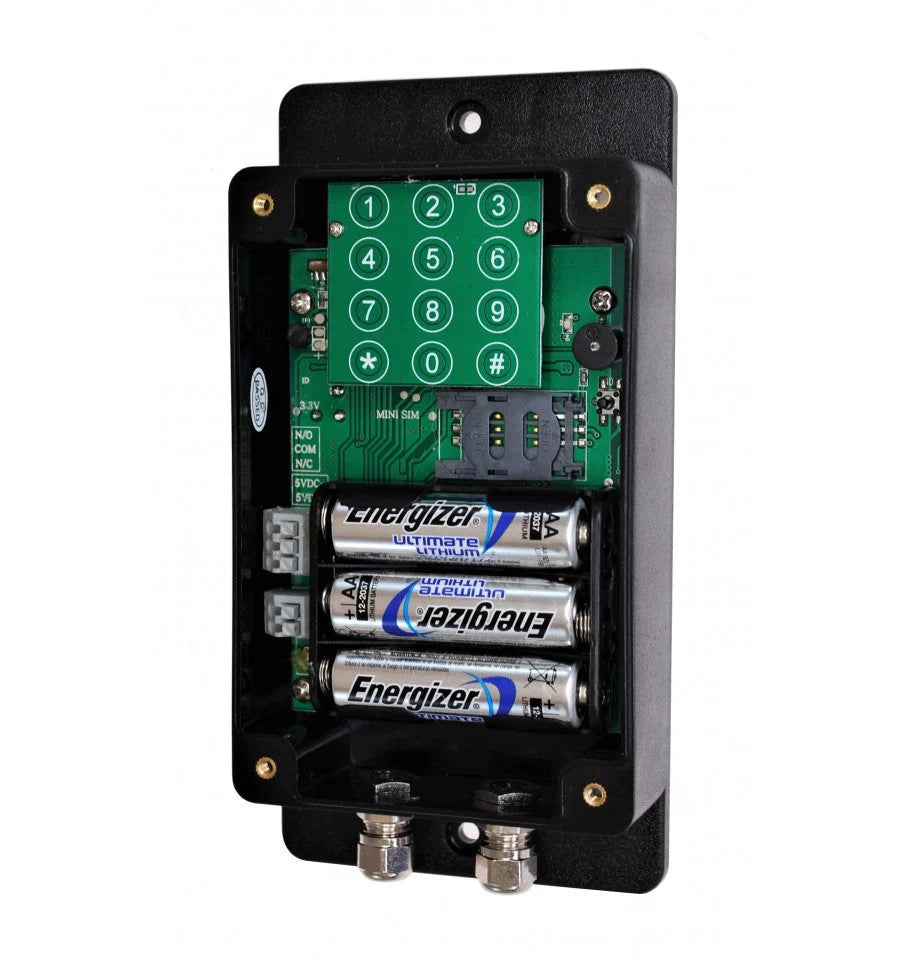

UltraDIAL Specifications

• Power: 3 x Lithium AA Batteries (6-month life) or optional 5V DC transformer

• Size: 160 (L) x 82 (W) x 42 (D) mm

• Colour: Black

• Wireless Range: 100m (line of sight)

• Inputs: 1 x volt-free N/O or N/C

• GSM: 3G (standard SIM required)

• Notifications: Calls & SMS (up to 3 key-holders)

• Recording: 30-second custom message

• Mounting: 2 x screw holes in flange

• Weatherproof: IP66

• Remote Operation:

  • On battery: # disarms, * stops calls but stays armed

  • On mains: # disarms, * stops calls, SMS arm/disarm
