Long Range Driveway PIR Alarm with Outdoor Receiver & 118 dB Siren

The Protect-800 Long Range Driveway PIR Alarm features a weatherproof outdoor receiver and a loud 118 dB siren, designed to alert both occupants and intruders. The siren duration is fully adjustable and can be controlled using the included long-range remote. When armed, the siren triggers for the selected duration whenever motion is detected by the PIR, and can also be manually activated using the SOS button on the remote.

How It Works:

• The battery-powered wireless PIR can be installed up to 800 metres from the outdoor receiver (typically 400–600 metres in most settings).

• When a person or vehicle passes the PIR, a wireless signal is sent to the receiver. If armed, the 118 dB siren activates for the preset duration, which can be cancelled via the long-range remote.

• The SOS button can trigger the siren in emergencies, keeping it latched ON until deactivated.

• The outdoor receiver is weatherproof and powered by a 12 V plug-in transformer, with waterproof cable entry glands.

• Optional indoor chime receivers can be added to provide notifications inside the home or office.

Siren Duration:
Adjustable via internal dip-switches, options include:

• 1, 3, 10, 15, 20, or 30 seconds or minutes

• Latched ON (until disarmed via remote control)

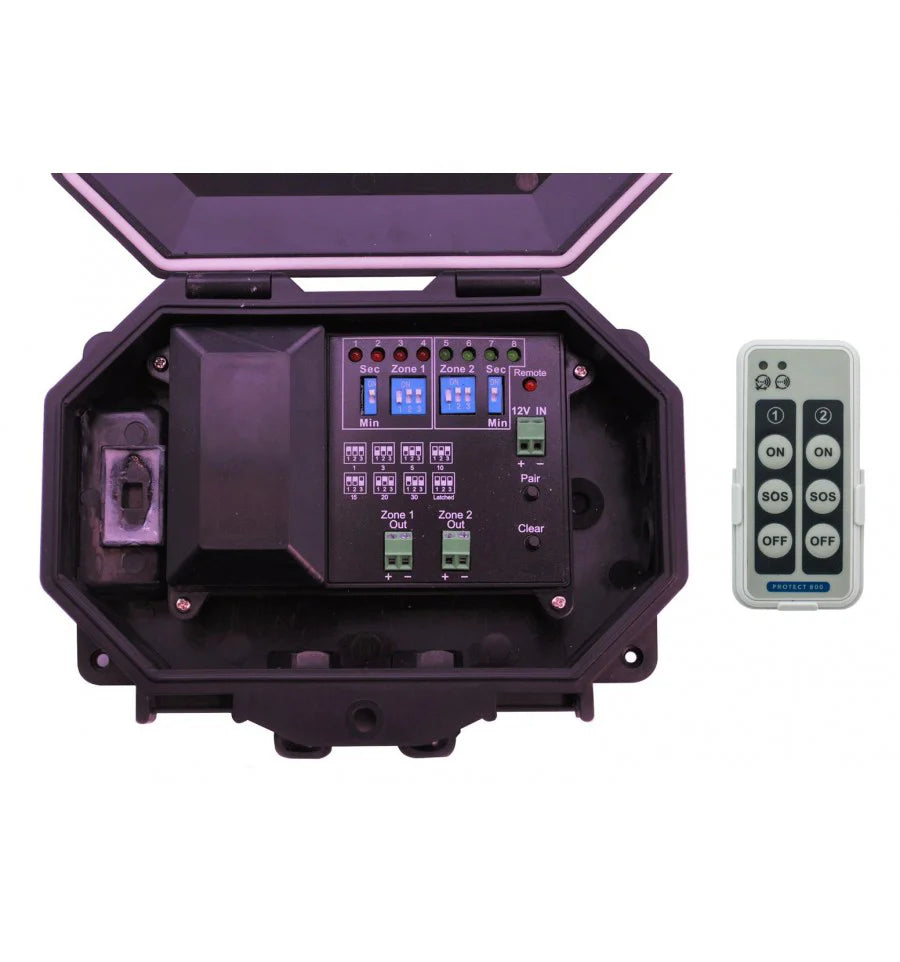

Outdoor Receiver:

• Weatherproof, two channels with 12 V outputs

• Supports up to four Protect-800 sensors per channel (PIRs, vehicle probes, MT transmitters, gate contacts, bird box PIRs, transmitter boards)

• Multiple 12 V devices can be added, each with independent duration settings (e.g., siren for 20 s, floodlight for 10 min)

Remote Control Features:

• Arm/disarm each channel

• SOS trigger for connected devices (siren, buzzer, floodlight, or any 12 V device), latching ON until deactivated

• Feedback LED confirms successful signal

• Unlimited remote pairing

• 800 metres line-of-sight range (approx. 400–600 metres typical)

• Powered by 2 × AAA batteries

PIR Sensor Features:

• 800 metre wireless range

• Fully waterproof with sunshade and rain hood

• Detection range up to 15 metres (extendable for large objects)

• Adjustable sensitivity

• Up to 16 PIRs per system

• Lens adjustment caps for vehicle detection

• Powered by 4 × AA batteries (included, lasting 9–12 months)

• Operation modes: 24-hour or night-only detection

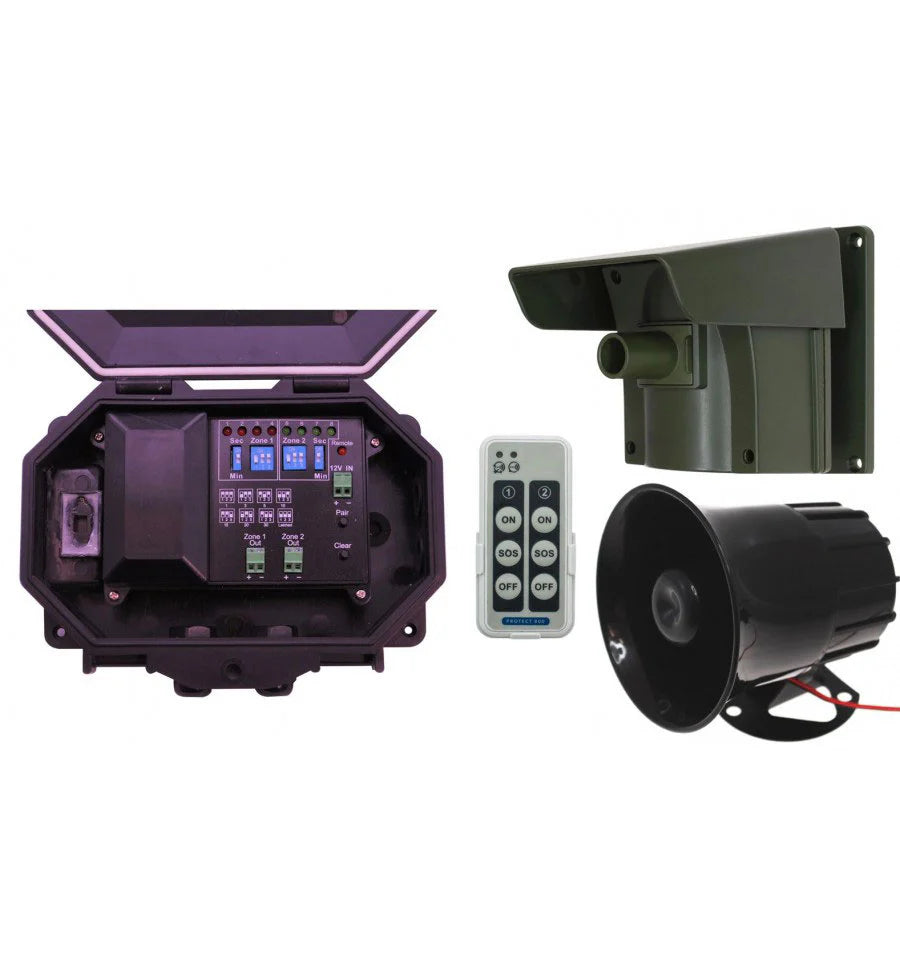

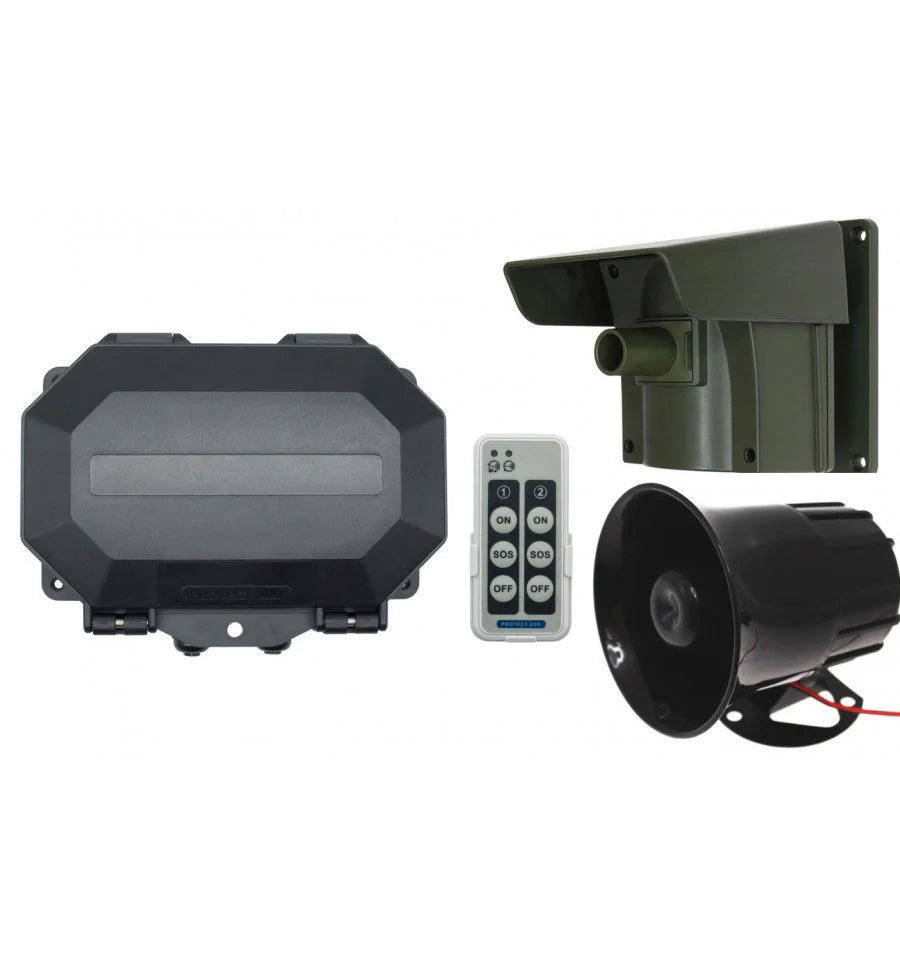

Kit Includes:

• 1 × Outdoor Receiver (P800-WSR/1)

• 1 × Remote Control (P800-WSK/1) with batteries

• 1 × 12 V DC plug-in power supply

• 2 × AAA batteries

• 1 × Protect-800 Wireless Driveway PIR

• Mounting bracket, sun & rain hood, detection caps, screwdriver, screws

• 1 × 118 dB siren

Specifications:

Outdoor Receiver:

• Weatherproof, 12 V DC, 5 A

• Two channels, four sensors per channel

• Output duration: 1 s, 3 s, 10 s, 15 s, 20 s, 30 s, or latched ON

• Frequency: 869.400–869.650 MHz

• Size: 170 × 125 × 60 mm

Remote Control:

• Arm/disarm & SOS per channel

• Feedback LED, unlimited remote pairing

• Powered by 2 × AA batteries

• Size: 85 × 40 × 25 mm

PIR Sensor:

• 800 m wireless range

• Waterproof, sunshade, rain hood

• Detection: up to 15 m, adjustable sensitivity

• Powered by 4 × AA batteries

Siren:

• Weatherproof, 118 dB (2-tone)

• Voltage: 12 V DC

• Colour: Black
