Long Range Wireless Gate/Door Left Open Alert with Flashing LED (Protect-800)

A reliable wireless silent alert system designed to activate a flashing blue LED strobe whenever a gate, roller shutter, or door is left open. Perfect for customers who need to ensure gates remain closed to protect children, pets, or property security.

Unlike traditional alarms, this system provides a visual but silent notification. Optional sirens or buzzers can be added on request.

How It Works

• Two battery-powered transmitters are housed inside a weatherproof box with an operating range of up to 800 metres (line of sight) — typically 400–600 metres in real-world conditions.

• Each transmitter is powered by a 3v CR123A lithium battery (supplied), with a life expectancy of 12–18 months.

• A wired contact with protective armoured sleeve is mounted to the gatepost, door frame, or floor (for roller shutters).

• A magnet is fixed to the moving part of the gate/door and supplied with a right-hand mounting bracket for easier installation.

• The outdoor wireless receiver is powered by a 12v plug-in transformer and includes waterproof cable glands for secure installation.

• The blue flashing strobe light connects to the receiver via cable and can also be mounted directly on the receiver box if required.

• Using the supplied remote control, you can easily arm/disarm the system or trigger the strobe manually in case of medical or security emergencies.

When armed, the strobe activates and continues to flash as long as the gate/door remains open. In SOS situations, the strobe can be latched on until turned off via the remote.

An optional indoor chime receiver can also be added to provide in-house notification (non-latching).

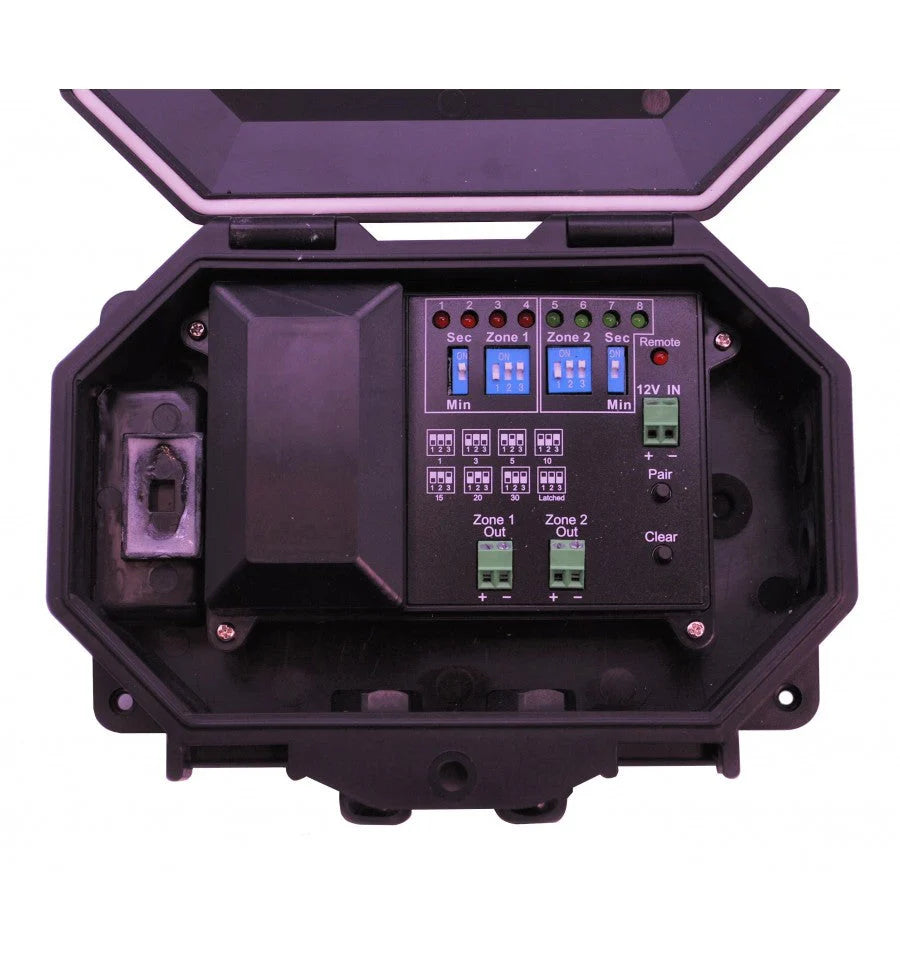

Outdoor Receiver Features

• Two channels with 12v outputs for connecting additional sensors.

• Compatible with a range of Protect-800 sensors, including:

  • PIR detectors

  • Vehicle probes

  • MT transmitters

  • Gate contacts & transmitters

  • PIR in bird boxes

Remote Control Features

• Arm/disarm each channel independently.

• Trigger SOS function (latches output until disarmed).

• LED feedback indicator confirms successful operation.

• Long-range operation up to 800 metres (line of sight).

• Powered by 2 x AAA batteries (supplied).

• Multiple remotes can be paired with no limit.

• Supplied with a wall bracket.

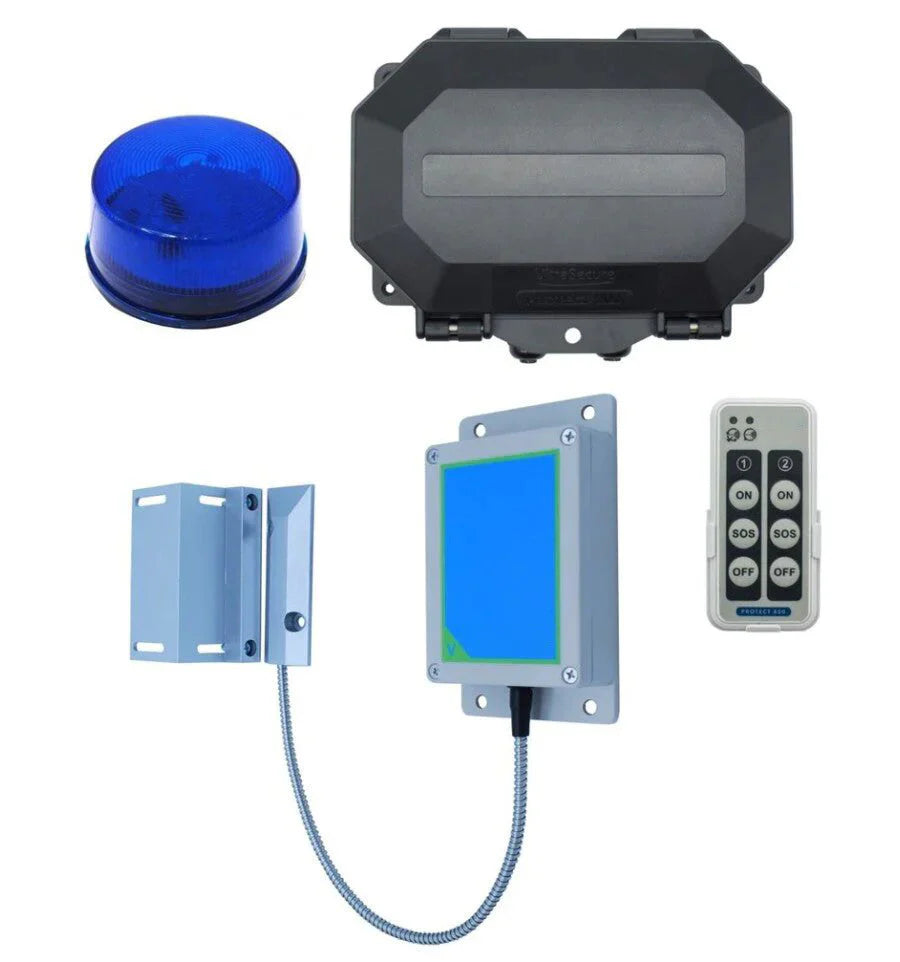

Kit Includes

• 1 x Outdoor Receiver (P800-WSR/1) with 12v plug-in transformer

• 1 x Remote Control (P800-WSK/1) with batteries

• 1 x Wireless Gate Contact Kit with 2 x transmitters (004-5540)

• 1 x Blue Flashing Wired Strobe Light

Technical Specifications

Receiver

• Weatherproof: Yes

• Power: 12v DC, 5A

• Channels: 2 (4 sensors per channel)

• Range: 800m (line of sight)

• Output: 2 x 12v DC

• Output Mode: Latched ON until reset (configurable via dip-switches)

• Size: 170 x 125 x 60 mm

• Frequency: 869.400 – 869.650 MHz

Remote Control

• Operation: Arm, Disarm, SOS (per channel)

• Range: 800m (line of sight)

• Power: 2 x AAA batteries (supplied)

• Size: 85 x 40 x 25 mm

• Wall Bracket: Included

• Unlimited pairing

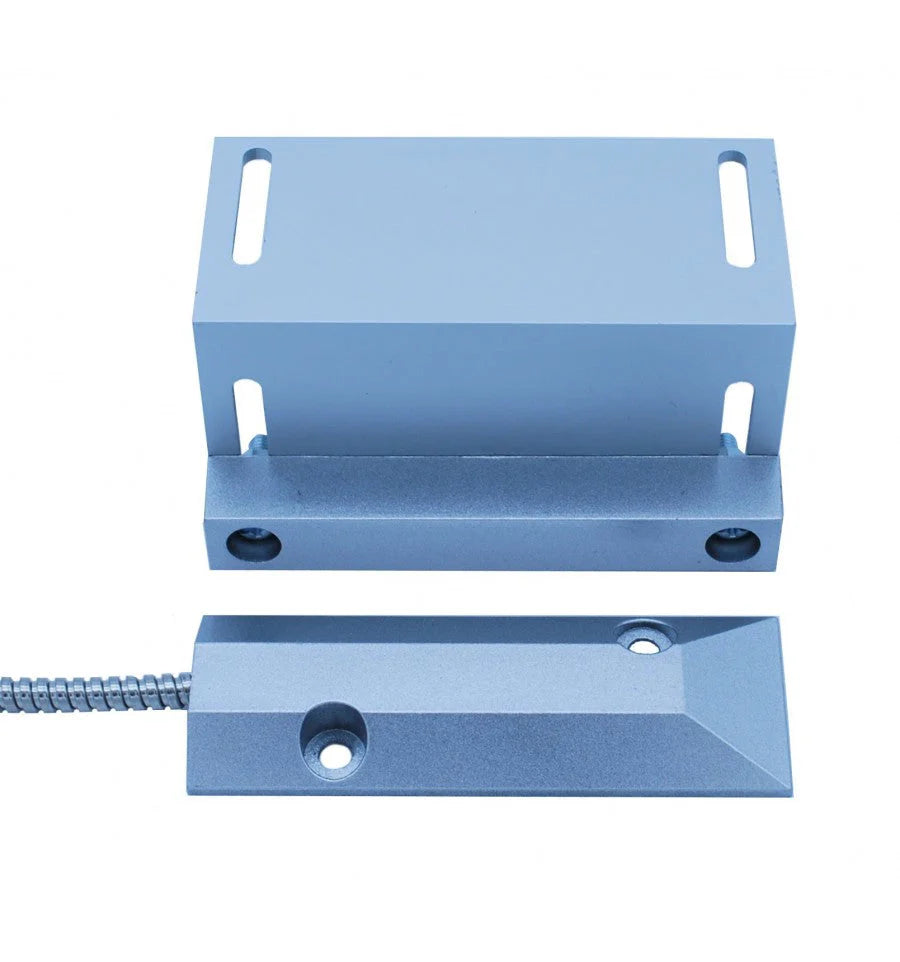

Gate Contact & Transmitter

• Range: 800m (line of sight)

• Power: 1 x 3v CR123A lithium battery

• Battery Life: 12–18 months

• Weatherproof Housing: IP65

• Box Size: 150 x 85 x 34 mm (external)

• Contact Type: NO/NC switch

• Armoured cable for protection

• Magnet Size: 105 x 15 x 15 mm

• Mounting Bracket: 105 x 50 x 50 mm

Strobe

• Colour: Blue

• Voltage: 9–12v DC

• Size: Ø75 mm x 55 mm depth

• Mounting: Screws or double-sided tape (supplied)
