Protect 800 Long-Range Driveway PIR Alarm with Outdoor Receiver & Adjustable Siren

The Protect 800 Driveway PIR Alarm is a long-range, wireless security system designed to detect movement on your driveway, yard, or property. It features a weatherproof outdoor receiver with an adjustable siren, perfect for alerting intruders while ensuring the alarm can be heard outside.

Key Features:

• Adjustable Siren: Volume (0–106 dB) and tone can be customized to suit your environment.

• Remote Control Operation: Fully adjustable alarm duration and SOS activation via long-range remote (up to 800 m line-of-sight).

• Wireless PIR Detection: Battery-powered, fully weatherproof PIR sensors can detect vehicles and people, with a transmission range up to 800 m (approx. 400–600 m typical).

• Internal Notifications: Optional indoor chime receivers allow alerts to be heard inside your home or office.

How It Works:
When movement is detected, the PIR transmits a wireless signal to the outdoor receiver. If armed, the adjustable siren triggers for the selected duration, volume, and tone. The alarm can also be manually triggered using the SOS button on the remote for emergencies, remaining latched ON until turned off. Multiple remotes can be paired to the system with no limit.

Siren Duration Settings:

• 1, 3, 10, 15, 20, 30 seconds or minutes

• Latched ON until disarmed via remote

Outdoor Receiver:

• 2 channels with 12 V outputs, each supporting up to 4 Protect 800 sensors (PIRs, vehicle probes, gate contacts, MT transmitters, or bird box PIRs)

• Separate 12 V devices can be triggered per channel with independent durations (e.g., siren for 20 s, floodlight for 10 min)

Remote Control Features:

• Arm/disarm each channel

• SOS trigger for siren, buzzer, floodlight, or any 12 V DC device

• Intelligent LED feedback confirms successful commands

• Operating range: 800 m line-of-sight

• Powered by 2 × AAA batteries (supplied)

PIR Sensor Features:

• Wireless range up to 800 m

• Fully weatherproof

• Detection up to 15 m (further with larger objects)

• Adjustable sensitivity

• Includes sunshade, rain hood, and lens caps for vehicle detection

• Battery powered (4 × AA included, 9–12 months typical)

• Up to 16 PIRs per system

• Operates in 24-hour or night-only modes

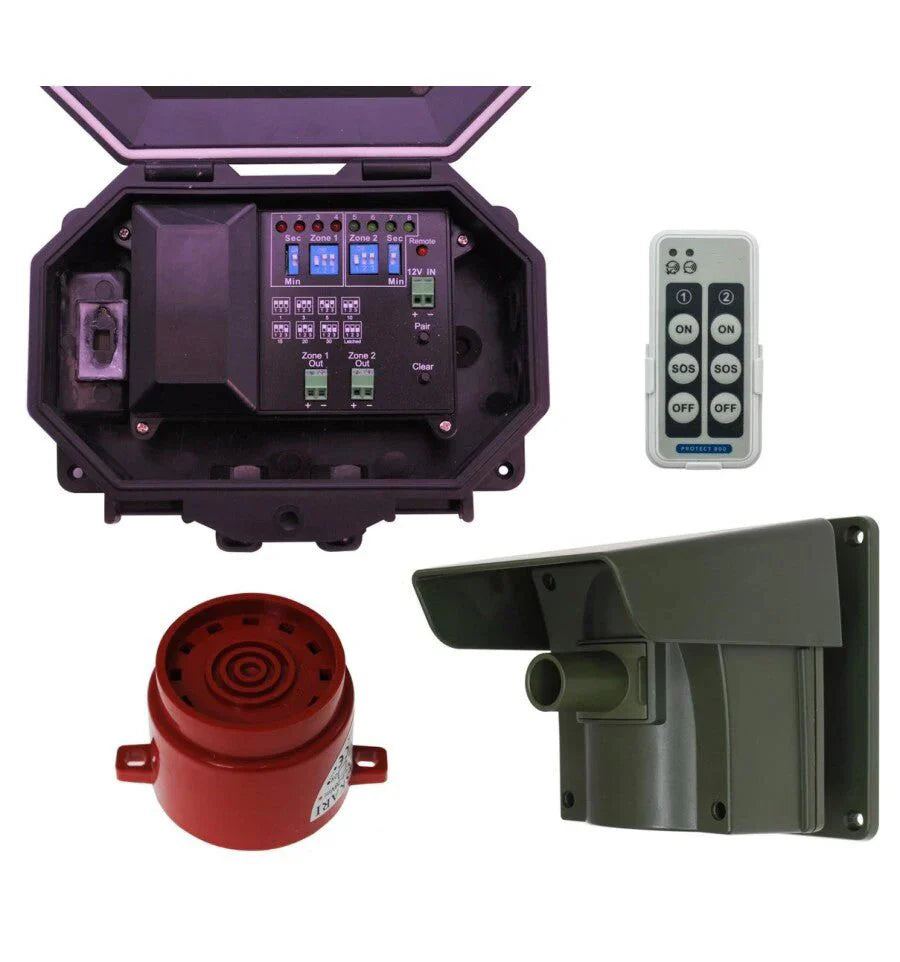

Kit Includes:

• 1 × Outdoor Receiver (P800-WSR/1)

• 1 × Remote Control (P800-WSK/1) with 2 × AAA batteries

• 1 × 12 V DC Plug-in Power Supply

• 1 × Protect 800 Wireless PIR with mounting bracket, 4 × AA batteries, sun & rain hood, and removable lens caps

• 1 × Adjustable Siren

• Screws and screwdriver for installation

Specifications:

Outdoor Receiver:

• Weatherproof, 12 V 5 A DC

• Channels: 2, sensors per channel: 4

• Operating range: 800 m line-of-sight

• Duration: 1, 3, 10, 15, 20, 30 s/min or latched ON

• Frequency: 869.400–869.650 MHz

• Size: 170 × 125 × 60 mm

Remote Control:

• Arm, disarm, and SOS for each channel

• Feedback LED indicator

• Range: 800 m line-of-sight

• Powered by 2 × AAA batteries

• Size: 85 × 40 × 25 mm

Siren:

• Weatherproof, red

• Adjustable tone and volume (0–106 dB)

• 12 V DC input

PIR Sensor:

• Wireless range: 800 m line-of-sight

• Detection up to 15 m

• Lens attachments for pencil, narrow, or wide beam

• Battery powered (4 × AA batteries)

This Protect 800 Driveway PIR Alarm offers flexible, long-range security for your property with adjustable siren settings, multiple sensors, and both outdoor and indoor notifications.
