Protect-800 Wireless Driveway Alarm with Security Floodlight, Adjustable Siren, and Indoor/Outdoor Receivers

The Protect-800 Long Range Wireless Driveway Alarm is a complete security solution featuring an Outdoor Receiver, bright 12V security floodlight, adjustable siren, 2 outdoor PIR sensors, and an indoor chime receiver. It provides customizable outdoor alerts with bright light and siren and adjustable chimes indoors.

Zones & Remote Control

• Two independent zones allow pairing PIR sensors with the floodlight or siren.

• Duration of light and siren is fully adjustable via the 800-metre remote control. Example:

  • Zone 1: Floodlight operates for 5–15 minutes when triggered

  • Zone 2: Adjustable siren operates for 10 seconds–3 minutes when triggered

• Zones are active only when armed via the remote.

• The SOS button can trigger one or both zones regardless of armed status, latching outputs ON until disarmed—ideal for security or medical emergencies.

• Both PIRs can be paired in a single zone for simultaneous operation with the same duration.

How It Works

• Wireless battery-powered PIRs can be installed up to 800 metres from the outdoor receiver (approx. 400–600 metres in typical applications).

• When a person or vehicle is detected, a wireless signal is sent to the indoor and outdoor receivers.

• If armed, the outdoor receiver activates the floodlight or siren. Alerts can be manually turned off using the remote control.

• The indoor receiver provides adjustable-volume chimes and 32 melody options to notify occupants inside the house or office.

• The weatherproof outdoor receiver is powered by a 12V plug-in transformer, with cable entry via waterproof glands.

PIR Sensors

• Wireless transmission up to 800 metres (line-of-sight)

• Detection range up to 15 metres (larger objects may extend range)

• Adjustable sensitivity and lens caps for optimized detection

• Weatherproof with sunshade and rain hood

• Battery powered (4 × AA batteries, included) with low battery alert

• Supports up to 8 PIRs per outdoor receiver (expandable to 16)

• Operational modes: 24-hour or night-only

• Lens cap options:

  • Pencil Beam: narrow, avoids small/medium animals

  • Medium Beam: narrow, detects vehicles efficiently

  • No Cap: optimized for vehicle detection

• Easy installation and strong wireless transmission for flexible mounting locations

Outdoor Receiver

• Two channels, each supporting up to 4 sensors: PIRs, vehicle probes, gate contacts, MT transmitters, or bird-box PIRs

• 12V DC outputs with adjustable duration

• Weatherproof and controlled via long-range remote control

• Supports up to 16 detectors and multiple receivers

• Zone indicators and dry relay outputs for external devices (sirens, bells, diallers, LEDs)

Remote Control

• Arm/disarm either channel

• SOS button to trigger connected devices

• LED feedback confirms successful signal

• 800-metre operating range (line-of-sight)

• Unlimited additional remotes supported

• Powered by 2 × AAA batteries

Floodlight & Adjustable Siren

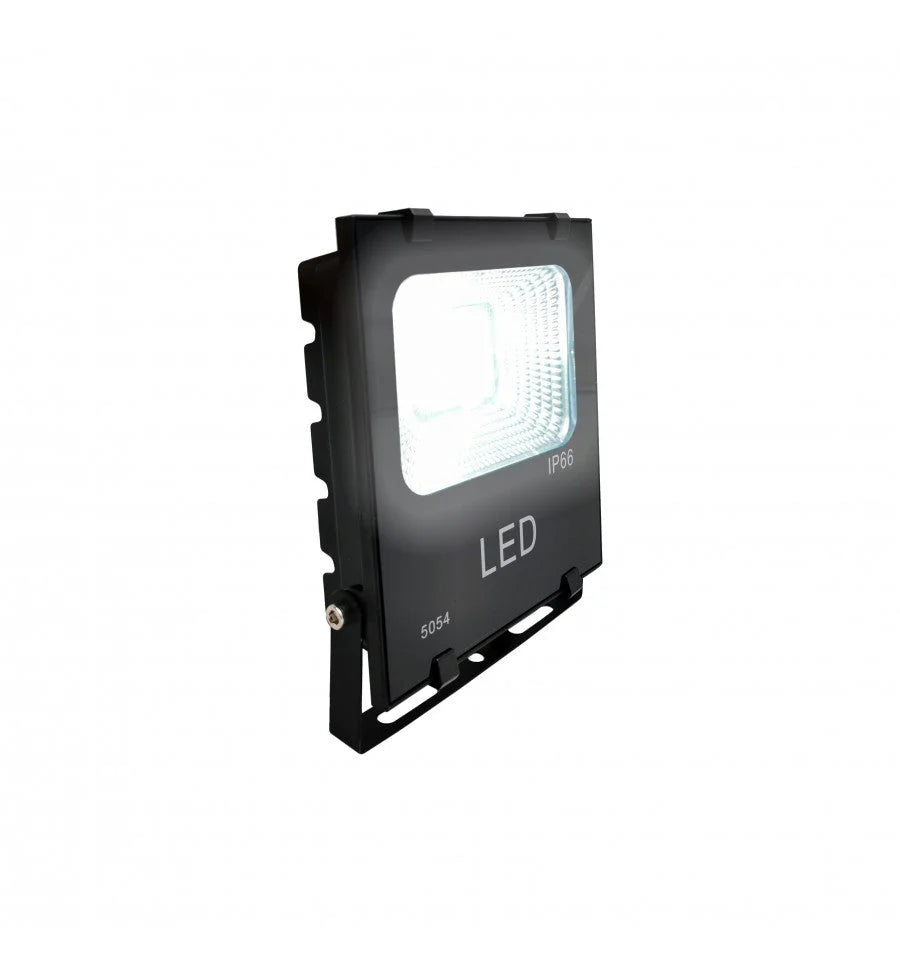

• Floodlight: 12V DC, 20W, black, adjustable bracket, 155 × 180 × 65 mm

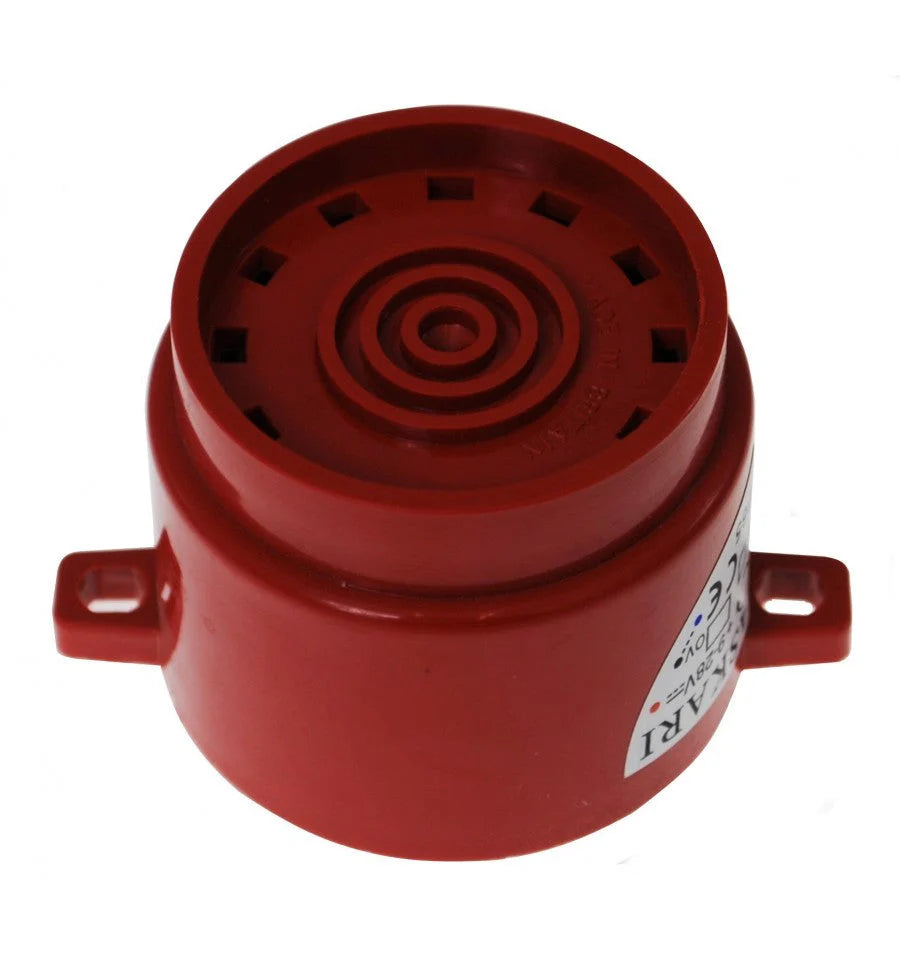

• Adjustable siren: 12V DC, 32 selectable tones, weatherproof (IP65), volume adjustable 0–106 dB, 45 mm height, red, 2 mounting lugs

Indoor Receiver

• Wireless range: 800 metres (line-of-sight)

• Adjustable volume (up to 85 dB) and 32 melodies

• Mains powered (3-pin UK & 2-pin European), optional 4 × AAA battery backup

• Low battery and loss of mains notifications

• Supports up to 16 detectors, multiple receivers, and zone indicators

• 12V DC output with adjustable durations (5, 30, 60 seconds or 10 minutes)

• Wall or desk mountable

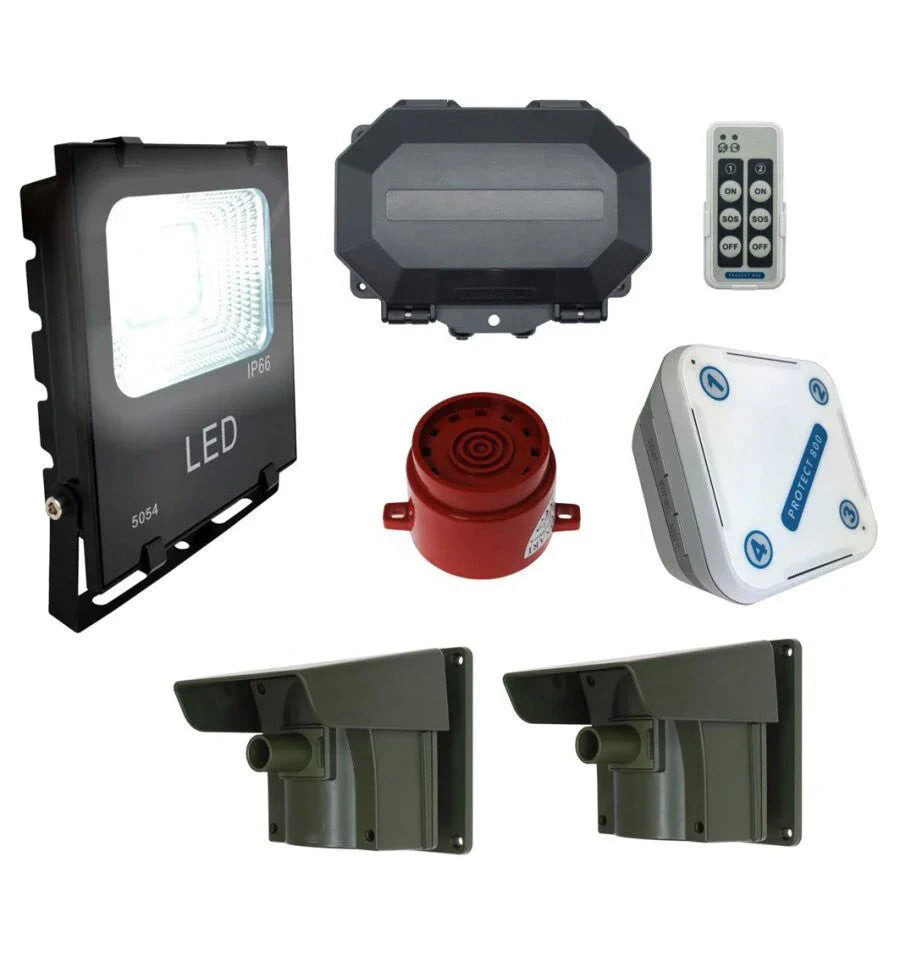

Kit Includes

• 1 × Outdoor Receiver (P800-WSR/1)

• 1 × Remote Control (P800-WSK/1)

• 1 × 12V DC Plug-in Power Supply

• 2 × AAA Batteries

• 2 × Protect-800 PIRs with brackets, sun/rain hoods, lens caps, and batteries

• 1 × Set of Screws

• 1 × 12V Floodlight

• 1 × 12V Adjustable Wired Siren

• 1 × Indoor Chime Receiver with power supply

Specifications Summary

Outdoor Receiver: Weatherproof, 12V 5A DC, 2 channels, 4 sensors per channel, 12V outputs, adjustable durations, remote-controlled.

PIRs: 800m wireless range, up to 15m detection, angle 9–12°, weatherproof, adjustable sensitivity, 4 × AA batteries (9–12 months), 24h or night-only operation.

Floodlight: 12V DC, 20W, black, adjustable mount, 155 × 180 × 65 mm.

Adjustable Siren: 12V DC, 32 tones, 0–106 dB, red, 45 mm height.

Indoor Receiver: 800m wireless range, adjustable volume, 32 melodies, battery backup optional, supports 16 detectors, 12V outputs with adjustable duration.
