Protect-800 Wireless Driveway Alarm with Security Floodlight, Siren, PIR & Vehicle Probe

The Protect-800 Long Range Wireless Driveway Alarm is a comprehensive security system featuring an Outdoor Receiver, bright 12V security floodlight, loud 118 dB siren, 1 outdoor PIR, and 1 underground vehicle sensing probe.

Both the floodlight and siren are fully adjustable in duration and controlled independently via the long-range remote control, allowing you to configure your system to suit any security setup.

Flexible Zone Control

• Zone 1 can operate the floodlight paired with either the PIR or vehicle probe.

• Zone 2 can operate the siren paired with the other detector.

• Each zone can have independent activation durations: for example, zone 1 may run for 5 or 15 minutes, while zone 2 may operate for 10 seconds or 3 minutes.

• Zones are activated only when armed via the remote control, and can also be triggered manually using the SOS button—ideal for security or medical emergencies.

• Multiple PIRs can be paired to a single zone alongside the floodlight and siren for synchronized operation.

How It Works

• Wireless PIRs can be positioned up to 800 metres (line of sight) from the outdoor receiver (typically 400–600 metres in real-world conditions).

• The underground vehicle sensing probe is buried alongside driveways, grass verges, or under gates. It connects via cable to a battery-powered wireless transmitter, which communicates with the outdoor receiver.

• When the PIR or probe is triggered, a wireless signal activates the relevant zone if the receiver is armed.

• The floodlight or siren can be turned off at any time using the long-range remote.

Outdoor Receiver Features

• Fully weatherproof with cable entry glands

• Powered by a 12V DC plug-in transformer

• Two channels, each supporting up to 4 Protect-800 sensors, including:

  • PIRs

  • Vehicle probes

  • Gate contacts & transmitters

  • MT transmitters

  • PIRs in bird boxes

  • Transmitter boards

• Adjustable output duration from 1 second/minute to latched ON via internal dip-switches

• Operates via long-range remote control (800 m line of sight)

Remote Control Features

• Arm/disarm either zone

• SOS button triggers connected accessories (siren, floodlight, buzzer, or any 12V DC device)

• Latching function keeps activated zones ON until turned off

• Intelligent feedback LED confirms successful signal transmission

• Unlimited additional remotes can be paired

• Powered by 2 × AAA batteries (supplied)

Wireless PIR Features

• Range: 800 metres line of sight

• Detection up to 15 metres (larger objects may extend range)

• Adjustable sensitivity

• Waterproof with sunshade & rain hood

• Supports up to 8 PIRs per receiver

• Lens cap options:

  • Pencil beam: avoids small to medium animals

  • Medium beam: optimized for vehicles, reduces small animal detection

  • No cap: ideal for vehicle detection

• Battery-powered (4 × AA, included, 9–12 months)

• 24-hour or night-time operation

• Size: 85 × 80 × 100 mm (without hood), 120 × 80 × 100 mm (with hood)

Vehicle Sensing Probe Features

• Weatherproof transmitter box (155 × 100 × 65 mm)

• Powered by 3 × CR123 lithium batteries

• Adjustable sensitivity with reset settings (3–5–9 seconds)

• Probe: 315 × 35 mm with 14-metre 2-core cable

• Wireless transmission up to 800 metres line of sight

Floodlight & Siren Specifications

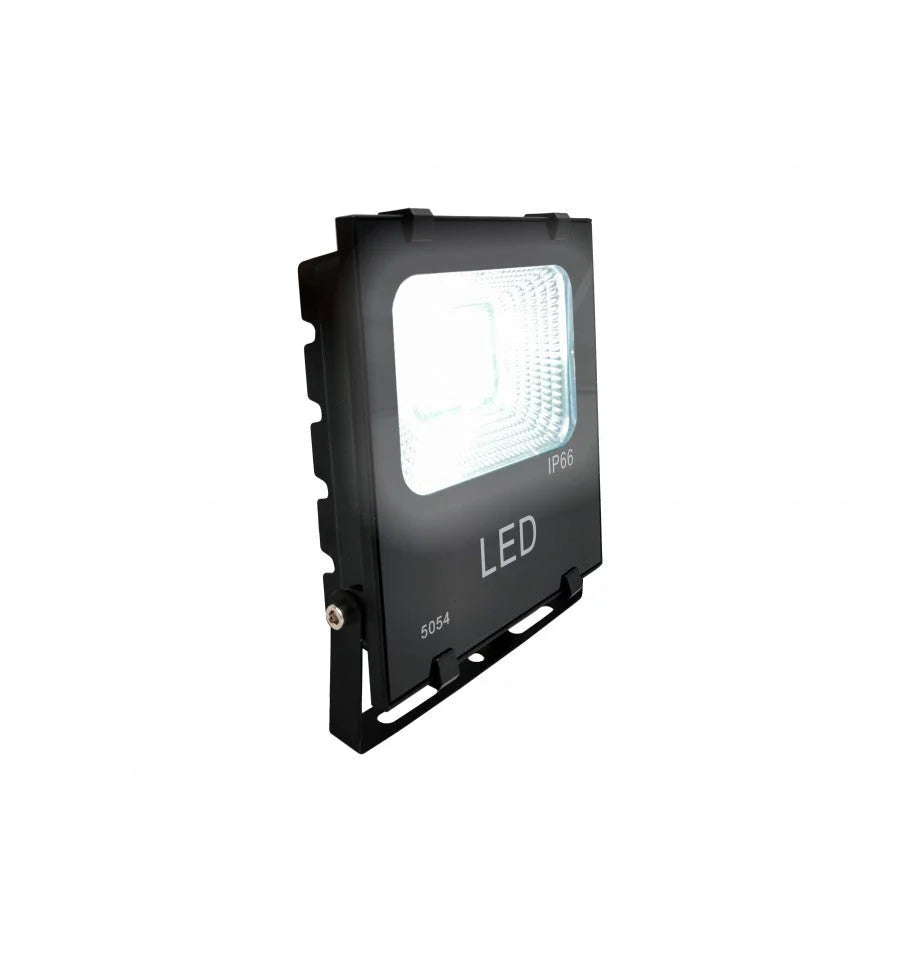

• Floodlight: 12V DC, 20W, adjustable bracket, black, 155 × 180 × 65 mm

• Siren: 12V DC, 118 dB, 6-tone, black, 101 × 96 mm, current 310 mA

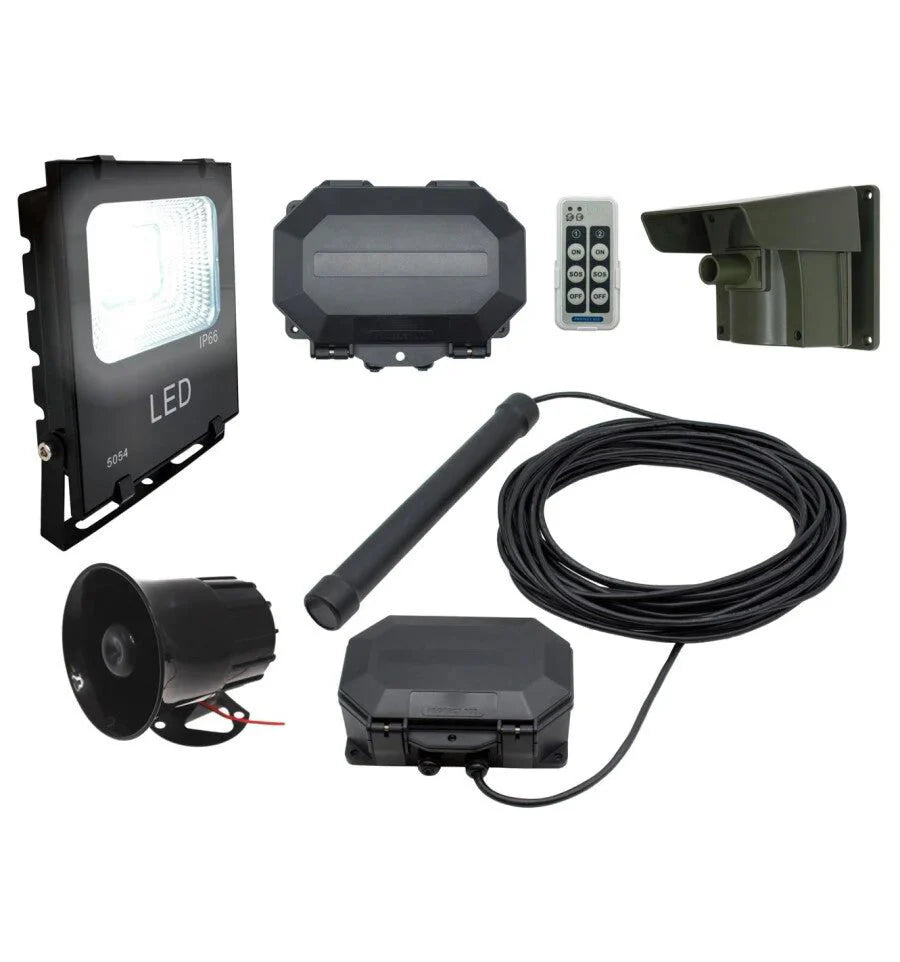

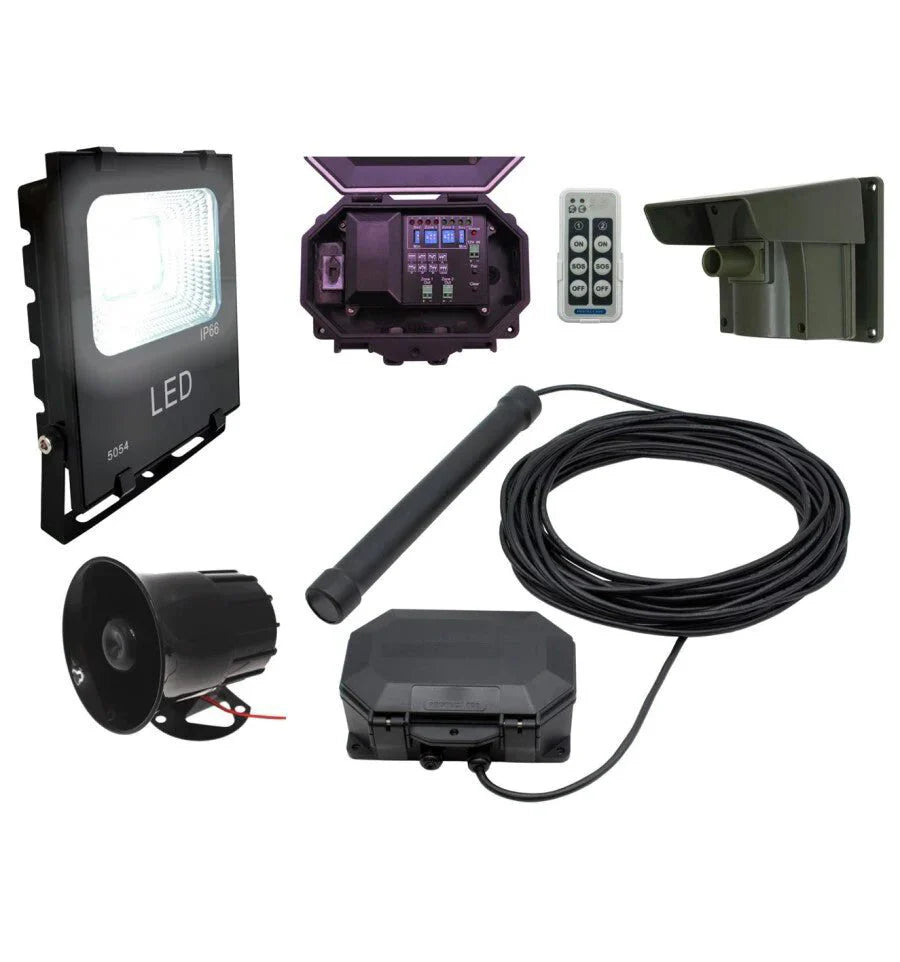

Kit Includes

• 1 × Outdoor Receiver (P800-WSR/1)

• 1 × Remote Control (P800-WSK/1)

• 1 × 12V DC plug-in power supply

• 2 × AAA batteries

• 1 × Protect-800 PIR (with bracket, rain/sun hood, lens caps, batteries)

• 1 × Protect-800 Vehicle Sensing Probe & Transmitter

• 1 × 12V Floodlight

• 1 × 12V Wired Siren

• Screws for installation
