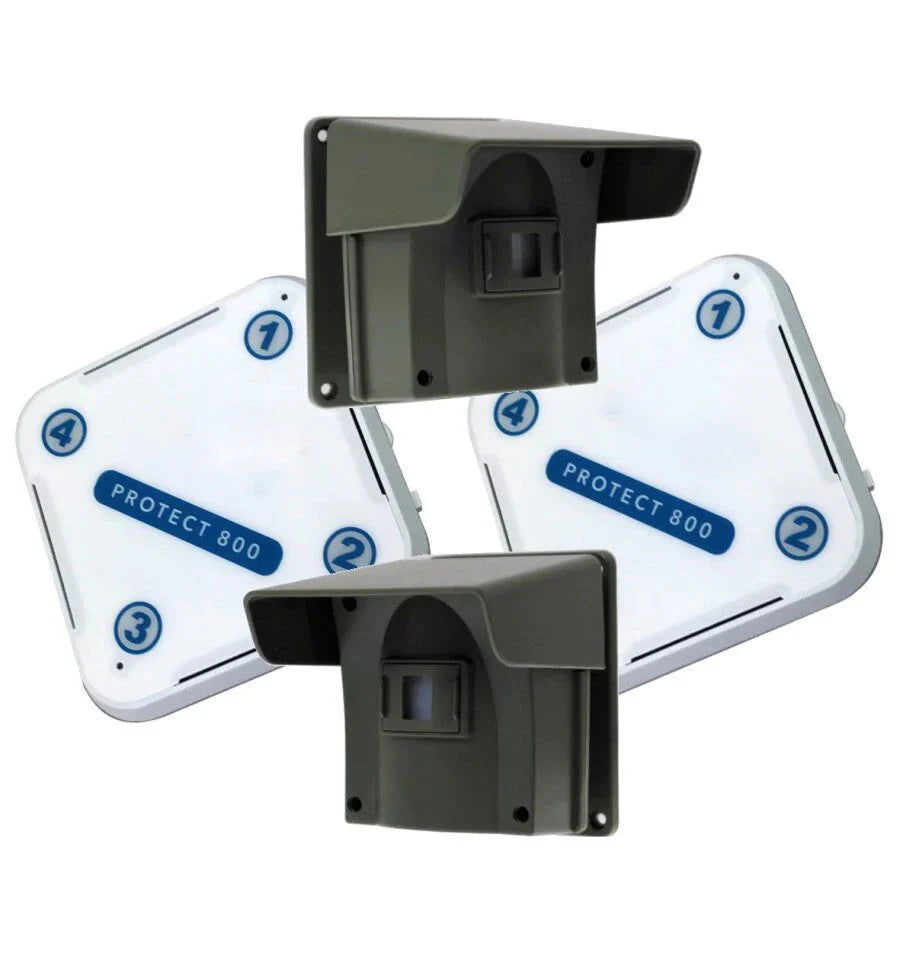

Protect 800 Wireless Driveway Alert System – Twin PIR & Receivers

The Protect 800 Long-Range (800 m) Wireless Driveway Alert Twin System is designed to monitor and protect driveways, yards, gardens, homes, or commercial properties. This kit includes:

• 2 × Indoor 4-channel Wireless Receivers

• 2 × Outdoor Wireless PIR Sensors with attachable lens caps

How It Works:

• The battery-powered, weatherproof PIR sensors can be installed at key locations such as driveways, gardens, sheds, garages, or fuel tanks.

• Each PIR uses a single-sided beam for quick, hassle-free installation—no alignment with other devices required.

• They detect both vehicles and people, with optional clip-on lens caps to prevent detection of small animals like foxes and cats.

• When movement is detected, a wireless signal is sent up to 800 m (line-of-sight; typically 400–600 m indoors) to the indoor receivers, which then play the selected chime at the chosen volume.

• Additional detectors such as PIRs, vehicle sensors, gate contacts, push buttons, or transmitters can be added, along with unlimited indoor and outdoor receivers.

Receivers Features:

• Wireless reception up to 800 m line-of-sight

• Adjustable volume (low to 85 dB) with 32 selectable melodies

• Mains powered with plug-in transformers (3-pin UK & 2-pin EU)

• Optional battery backup (4 × AAA, not supplied)

• LED notifications for power loss and low battery

• Supports up to 16 detectors per system

• Zone indicator (visual and chime)

• 1 × dry relay output and 12 V DC output with adjustable durations (5, 30, 60 s, or 10 min)

• Wall or desk mountable

• PIR battery check and optional pause modes

PIR Sensor Features:

• Wireless transmission up to 800 m line-of-sight

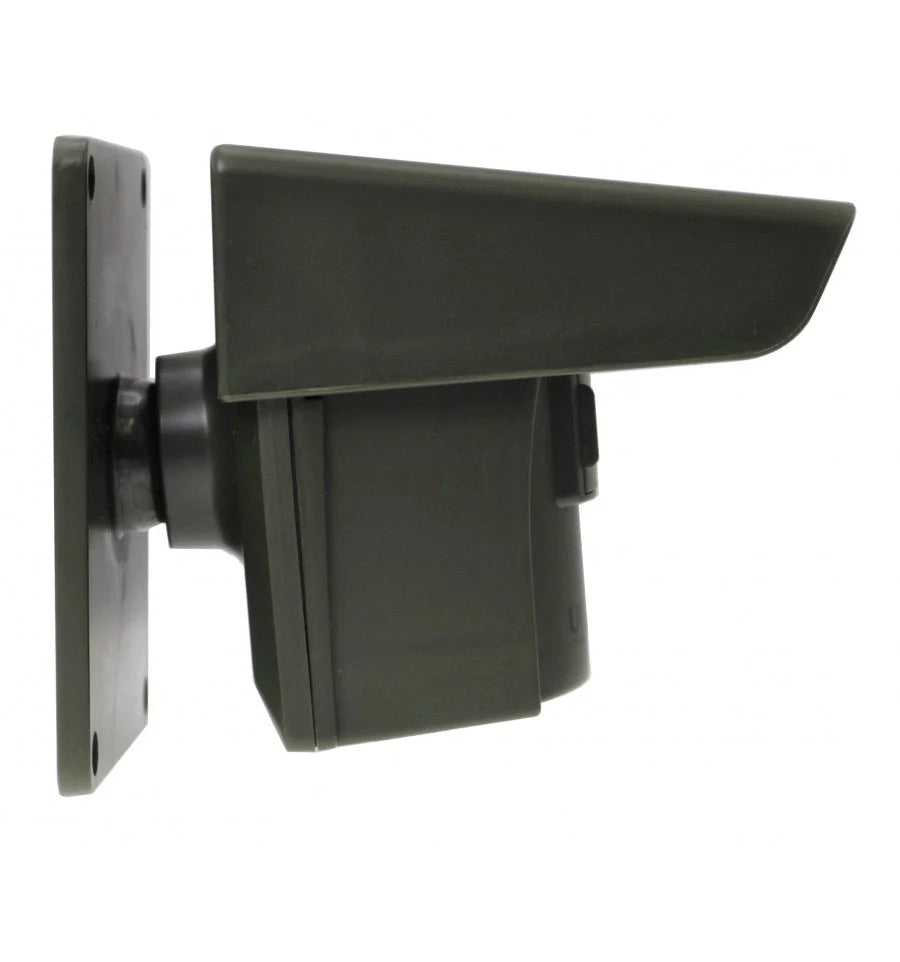

• Fully weatherproof with sunshade and rain hood

• Detection range: up to 15 m (longer for large objects)

• Adjustable sensitivity

• Supports up to 16 PIRs per system

• Battery powered (4 × AA, 9–12 months typical) with low battery warning and status check

• Lens cap attachments for Pencil, Narrow, or Wide beam coverage

• Quick and easy installation with flexible mounting options

• Operational modes: 24-hour detection or night-time only

Installation Tips:

• Mount PIRs away from direct sunlight to optimize performance.

• Can be discreetly concealed in structures while maintaining strong 800 m wireless coverage.

• Unique operational flexibility allows one PIR to run all day with a subtle chime and the other to activate at night with a louder alert, ideal for workshops or sensitive areas.

Kit Includes:

Receivers:

• 2 × Protect 800 Wireless Receivers

• 2 × Optional wall brackets

• 2 × Plug-in transformers (3-pin UK & 2-pin EU)

• 1 × Manual

PIR Sensors:

• 2 × Protect 800 Wireless PIRs

• 8 × AA batteries

• 2 × Sets of removable detection caps

• 2 × Sun & rain hoods

• 1 × Screwdriver and screws

• 1 × Manual

Specifications:

Receivers:

• Wireless range: 800 m line-of-sight

• Adjustable volume up to 85 dB; 32 melody options

• Optional battery backup (4 × AAA, not supplied)

• Dry relay outputs: 1 per receiver

• 12 V DC output with adjustable duration: 5, 30, 60 s or 10 min

• Wall or desk mountable

• Input voltage: 12 V DC 500 mA

• Frequency: 869.400–869.650 MHz

PIR Sensors:

• Detection range: up to 15 m; angle: 9–12° at 12 m

• Lens caps: Pencil, Narrow, Wide (removable)

• Wireless range: 800 m line-of-sight

• Battery: 4 × AA (9–12 months) with low battery warning

• Vehicle detection optimized with lens cap removed

• Size: 85 (D) × 80 (W) × 100 (H) mm (without sun hood); 120 (D) × 80 (W) × 100 (H) mm (with sun hood)

• Frequency: 869.400–869.650 MHz

• Temperature range: -20 °C to 50 °C

• Operation modes: 24-hour or night-time only

This Protect 800 Twin System offers complete driveway and property protection with up to 16 PIRs and unlimited receivers for flexible coverage.
