Wireless Commercial Bell Kit – Push Button, Loud Adjustable Bell & Extra Chime Receiver

The Protect-800 Wireless Commercial Bell Kit is a complete long-range alert system designed for demanding business and industrial environments. It includes a heavy-duty push button, 800m wireless transmitter, powerful outdoor bell with adjustable ringing duration, and an additional internal chime receiver for flexible coverage. Perfect for warehouses, factories, workshops, offices, and entry points.

Key Features & Benefits

Heavy-Duty Push Button & Transmitter

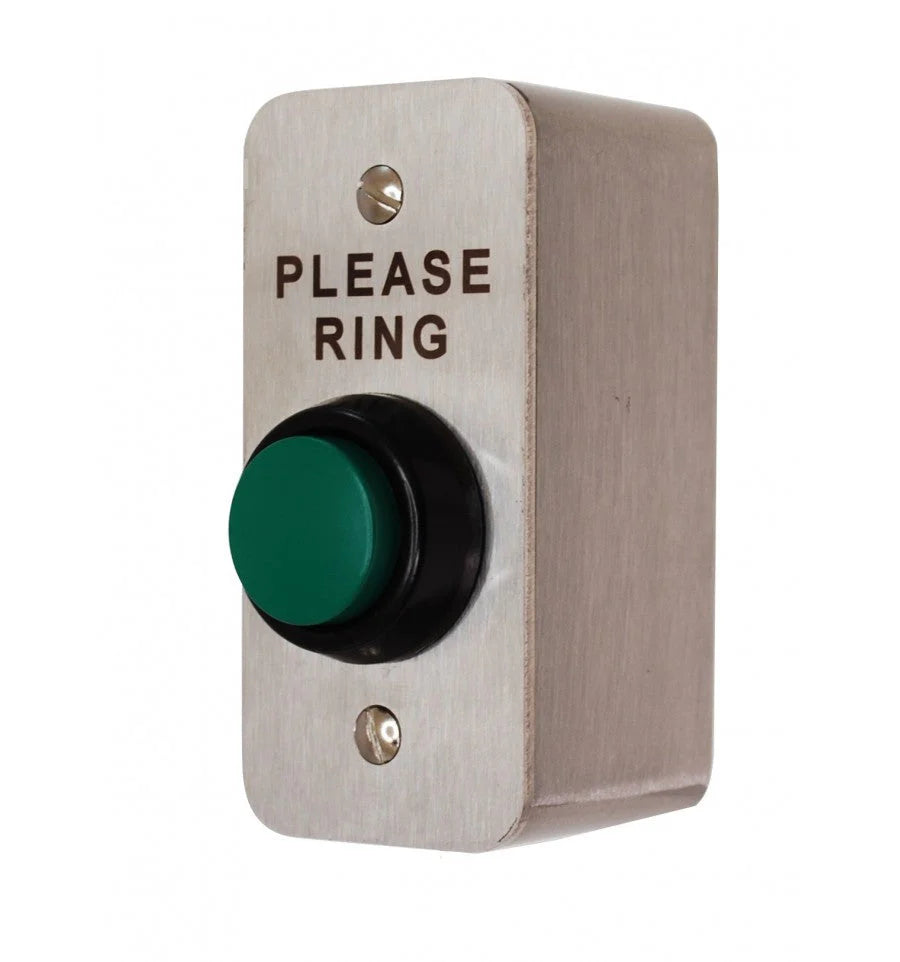

• Steel Push Button: Embossed with “Please Ring” for clear visibility.

• Flexible Installation: Connected to the transmitter via 3m cable, allowing optimal placement of both button and transmitter.

• Long-Range Signal: Up to 800m line of sight (approx. 400–600m in real-world use).

• Power: Supplied with a long-life CR123A battery (12–18 months typical use).

• Expandable: Additional push buttons and transmitters can be added for multiple entrances.

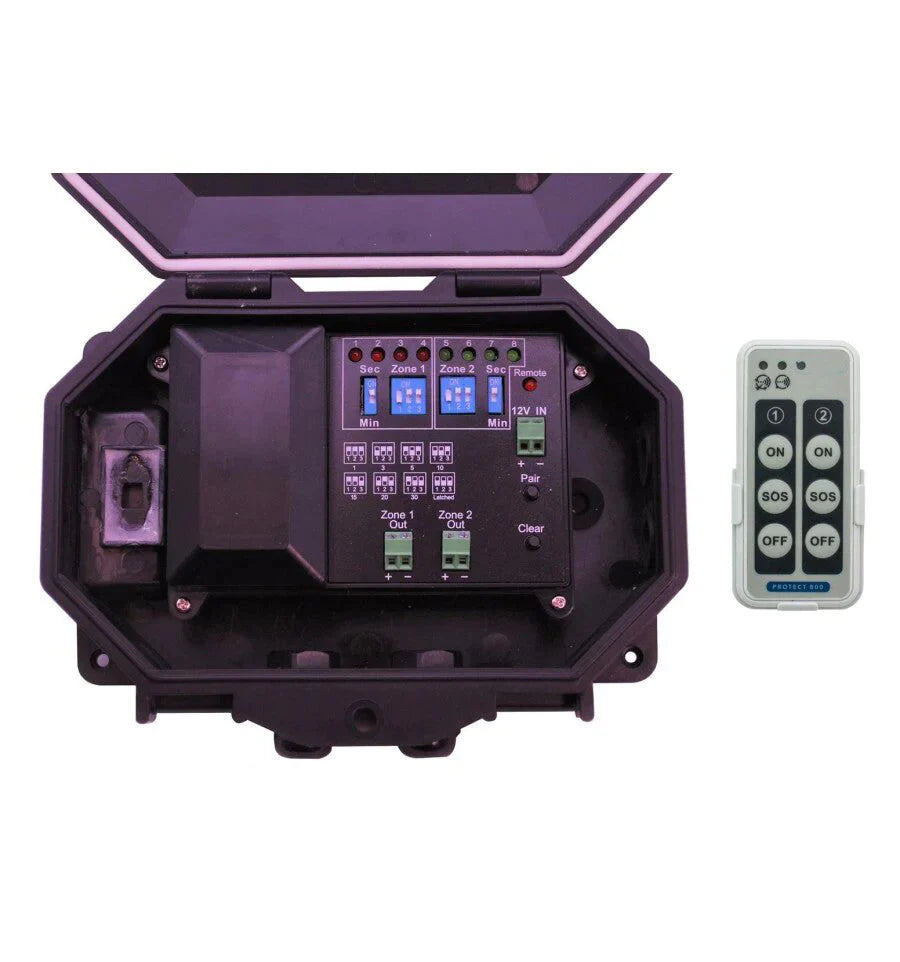

Outdoor Bell Receiver

• Loud 85dB Bell: Alerts staff instantly when triggered.

• Adjustable Duration: 1 second, 3/10/15/20/30 seconds or minutes, or Latched ON until reset.

• SOS Emergency Function: Bell can be manually activated at any time using the remote control.

• Dual Channels: Supports up to 4 sensors per channel (PIRs, vehicle probes, gate contacts, etc.).

• Weatherproof Construction: IP-rated enclosure with secure cable glands.

• Power Supply: 12V plug-in transformer included.

Remote Control (800m Range)

• Full Control: Arm/disarm channels or activate SOS alarm.

• Emergency Use: Can trigger sirens, floodlights, or other 12V devices.

• Feedback Indicator: Confirms successful command.

• No Limit on Pairing: Multiple remotes can be added.

• Battery-Powered: 2 x AAA batteries (supplied).

Indoor Chime Receiver

• Additional Coverage: Works independently of the outdoor bell.

• 32 Chime Options: Selectable melodies with adjustable volume (up to 85dB).

• Zone Alerts: Visual and audible indicators for multiple detectors.

• Backup Power: Operates via mains with optional AAA battery backup.

• Expandable: Supports up to 16 detectors and unlimited receivers.

Ideal Applications

• Warehouses & loading bays

• Shops & offices

• Security checkpoints

• Schools, workshops & medical facilities

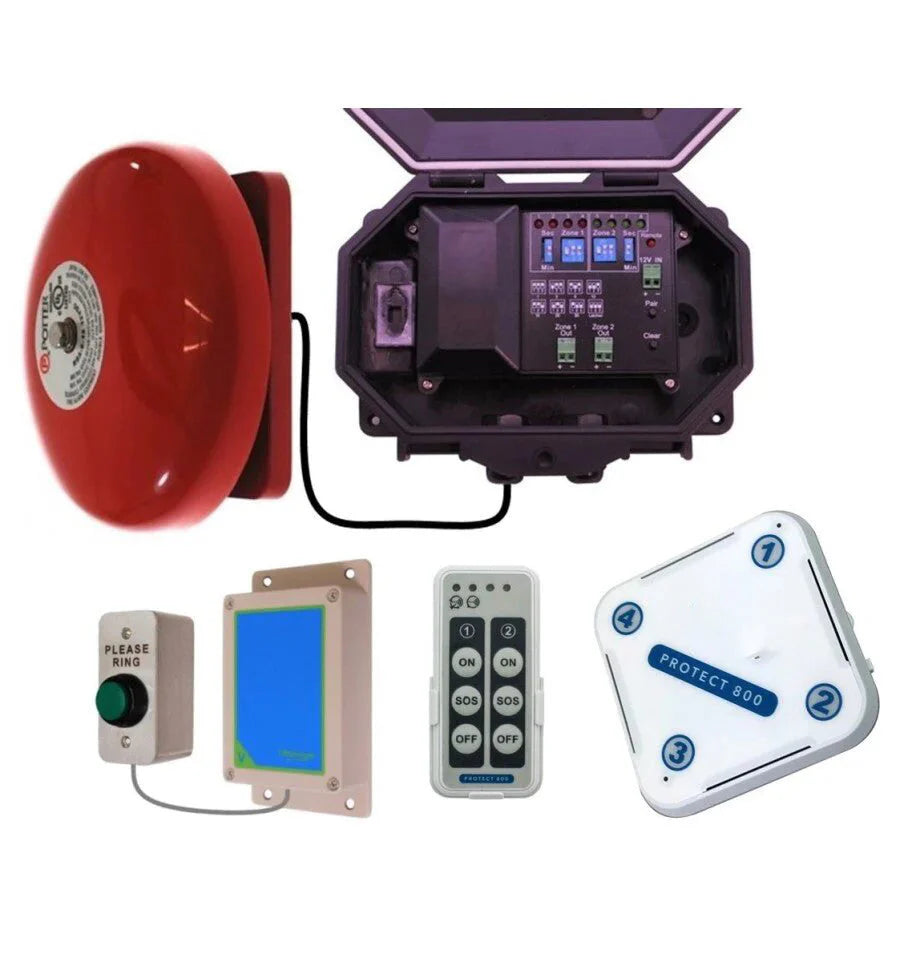

Kit Includes

• 1 x Outdoor Receiver (P800-WSR/1) & Power Supply

• 1 x Remote Control (P800-WSK/1) + 2 x AAA Batteries

• 1 x MT Transmitter (with protective box)

• 1 x Heavy-Duty Steel Push Button (with 3m cable)

• 1 x 85dB Loud Bell

• 1 x Internal Chime Receiver & Power Supply

• Fixings (screws included)

Technical Specifications

Outdoor Receiver:

• Weatherproof, 2 channels, 12V outputs

• Adjustable duration: 1s–30min or latched ON

• Range: 800m (line of sight)

• Size: 170 × 125 × 60 mm

Remote Control:

• 800m range, Arm/Disarm/SOS functions

• Powered by 2 x AAA batteries

• Size: 85 × 40 × 25 mm

Push Button & Transmitter:

• Button size: 85 × 40 × 40 mm (IP67)

• Transmitter range: 800m, CR123A battery (12–18 months)

• Box size: 150 × 85 × 34 mm (IP65)

Chime Receiver:

• Range: 800m

• 32 melodies, adjustable volume (up to 85dB)

• Power: Mains with optional battery backup

• Supports up to 16 detectors, unlimited receivers
