Wireless Vehicle Detecting Driveway Alarm with 2 x Indoor Receivers (Protect-800)

The Protect-800 Wireless Vehicle Detecting Driveway Alarm is designed to detect moving steel only, making it ideal for driveways or entrances where animals may be present. This system comes complete with 2 indoor 4-channel wireless receivers and an outdoor wireless battery transmitter with a 14-metre vehicle detecting probe.

How It Works

• When the hidden probe detects moving steel, it sends a wireless signal up to 800 metres (line of sight; approx. 400–600 metres in most setups) to the indoor receivers.

• The receivers will chime and can activate any connected devices such as sirens, flashing LEDs, or other alert systems.

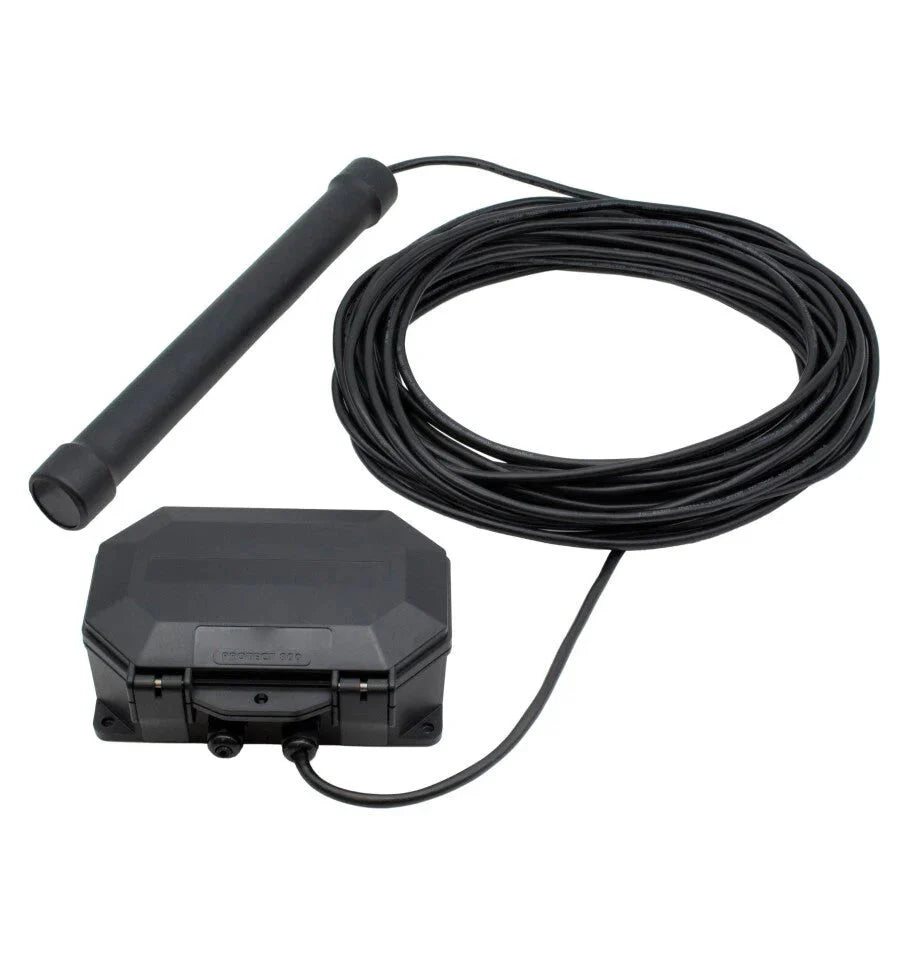

Wireless Transmitter & Vehicle Detecting Probe

• Weatherproof transmitter powered by 3 × CR123A lithium batteries

• Vehicle detecting probe includes 14 metres of cable, allowing the transmitter box to be placed in a covert, optimal location for wireless transmission

• Designed to be buried just under the surface or grass, parallel to the driveway

• Detects moving steel only, making it safe for locations with large animals

• Can detect a steel gate when it moves

• Cable protection recommended to prevent damage from small animals

• Sensitivity adjustment on the transmitter board allows fine-tuning of detection

Indoor Receivers

• Wireless reception range: 800 metres (line of sight)

• Volume: Adjustable from low to ~85 dB

• Melody options: 32 selectable sounds

• Power supply: Mains via plug-in transformer (3-pin UK & 2-pin EU supplied)

• Optional battery backup: 4 × AAA batteries (not supplied)

• LED notifications: Loss of mains power & low battery

• Supports up to 16 detectors

• Multiple receivers can be used simultaneously

• Zone indicators (visual and chime)

• Dry relay outputs: 4 (N/O & N/C, momentary) for triggering diallers, sirens, flashers, or bells

• 12V DC output: Adjustable duration (5, 30, 60 seconds, or 10 minutes)

• Mounting: Wall or desk mounted

• Detector battery check and optional pause modes

Expandable System Options

The Protect-800 alarm system can integrate up to 16 detectors, including:

• Additional vehicle detectors

• PIR sensors

• Universal MT transmitters

• PIR sensors inside wooden bird boxes

• Wireless gate contact kits

• Wireless SOS buttons

• Universal transmitter boards

• Wireless pull cords

Receivers can also be expanded without limit and are capable of operating external 12V devices such as floodlights, sirens, bells, or GSM auto-diallers.

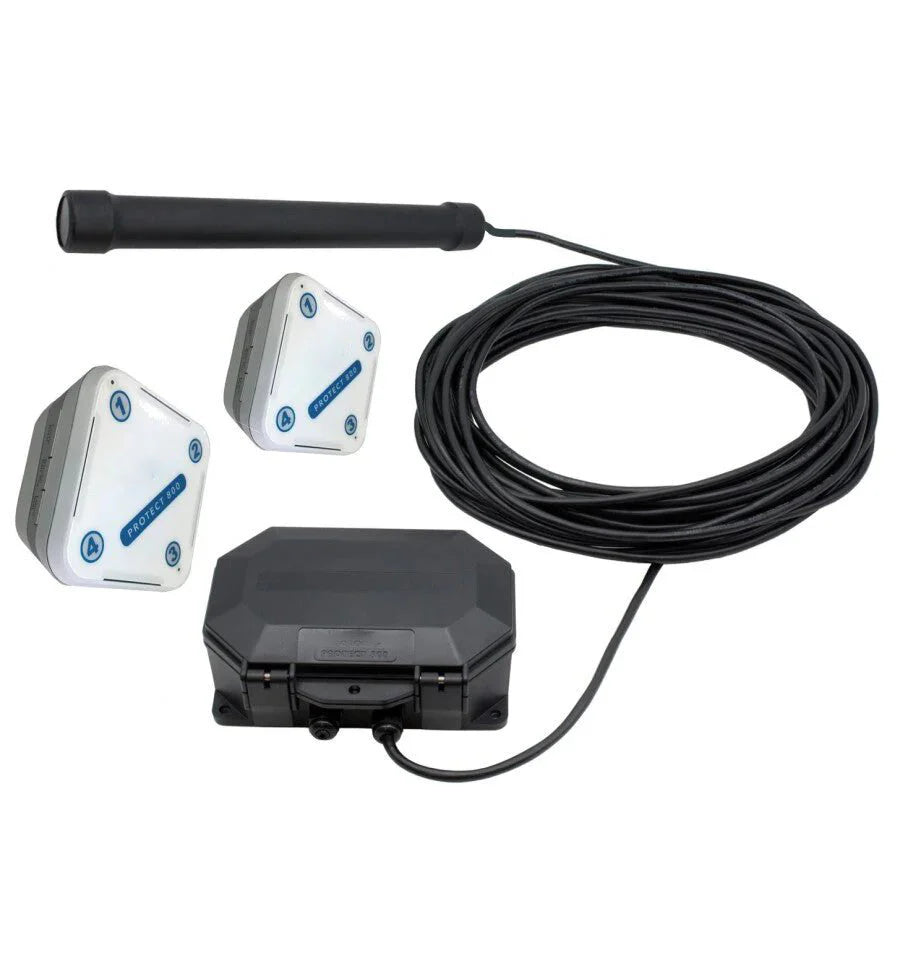

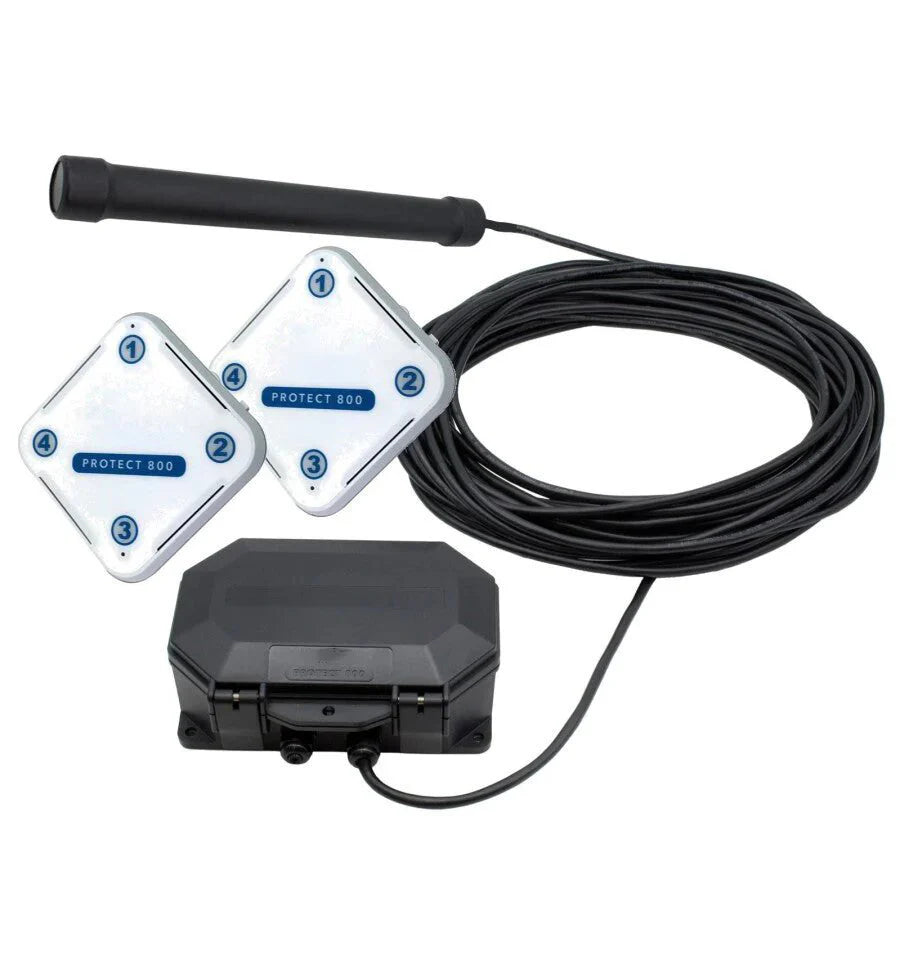

Kit Includes

• 2 × Wireless Indoor Receivers with plug-in transformers

• 1 × Wireless Transmitter with Vehicle Detecting Probe

• Batteries for the transmitter

• Full set of installation accessories

Specifications

Wireless Transmitter & Probe

• Size: 155 × 100 × 65 mm

• Weatherproof: Yes

• Colour: Black

• Power Supply: 3 × CR123A lithium batteries

• Sensitivity Adjustment: Yes

• Reset Settings: 3 / 5 / 9 seconds

• ON/OFF Switch: Yes

• Probe: 315 × 35 mm

• Cable Length: 14 m, 2-core

• Wireless Range: 800 m (line of sight)

Receiver

• Wireless Range: 800 m (line of sight)

• Adjustable Volume: Yes, up to 85 dB

• Melody Options: 32

• Power: Mains via plug-in transformer, optional 4 × AAA backup

• Loss of Mains & Low Battery LED notifications

• Maximum Detectors Supported: 16

• Multiple Receivers Supported: Yes, no limit

• Zone Indicator: Visual & chime

• Dry Relay Outputs: 4 (N/O & N/C, momentary)

• 12V DC Output: Adjustable duration (5, 30, 60 seconds, 10 minutes)

• Relay Duration: Momentary

• Mounting: Wall or desk

• PIR Battery Check: Yes

• Optional Pause Modes: Yes

• Input Voltage: 12V DC, 500 mA

• Frequency: 869.400 – 869.650 MHz
