Wireless Vehicle Detecting Driveway Alarm with Loud Bell

The Protect 800 Wireless Vehicle Detecting Driveway Alarm is a premium driveway security solution, designed to detect moving steel only—making it ideal for properties with animals roaming freely. This system offers long-range wireless performance, an adjustable receiver, and a loud bell alert for maximum protection.

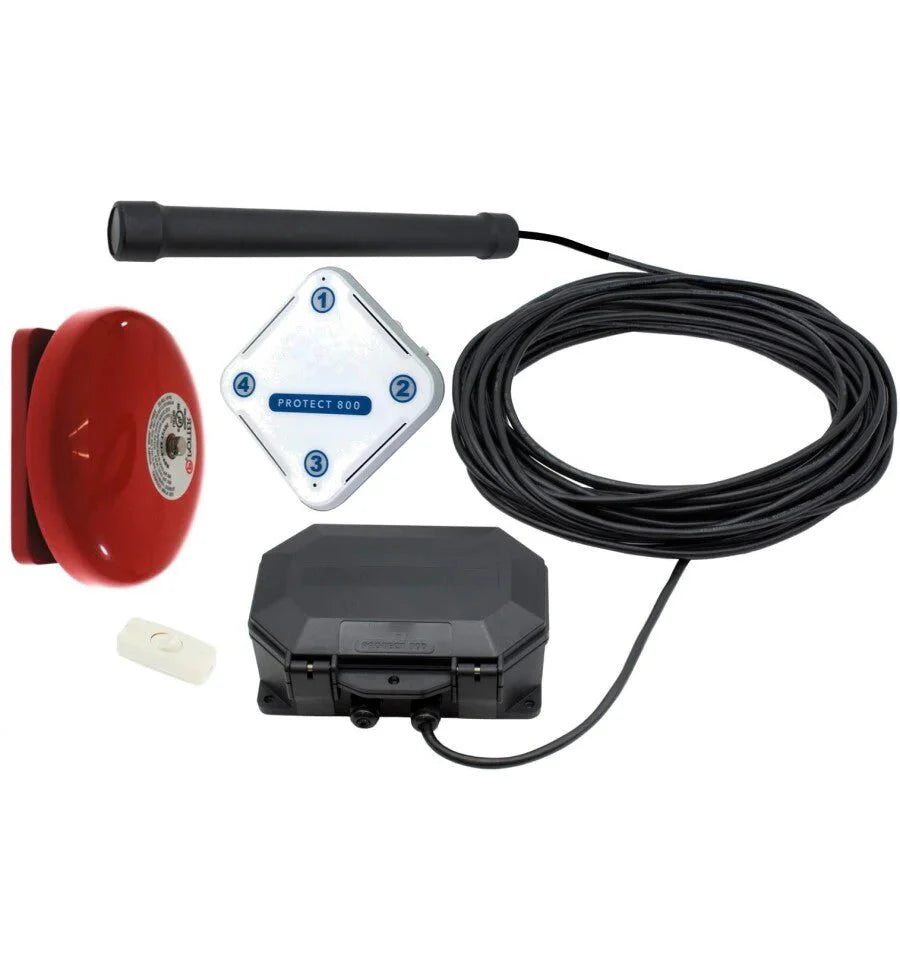

Kit Includes:

• 1 × Indoor 4-Channel Wireless Receiver with Plug-in Transformer

• 1 × Outdoor Wireless Transmitter & Vehicle Detecting Probe (14m Cable)

• 1 × Loud 85 dB Outdoor/Indoor Bell (3m Cable)

• 1 × Siren ON/OFF Cable Switch

• 1 × Set of Batteries

How It Works

• The hidden probe, buried just beneath grass or driveway surfaces, detects moving steel (vehicles) only—ignoring people and animals.

• Once activated, it transmits a wireless signal up to 800m line of sight (approx. 400–600m in most real-world applications) to the indoor receiver.

• The bell connects to the receiver with a 3m cable (extendable on request) and is controlled via the included ON/OFF switch.

• When the receiver is triggered, it chimes and activates the bell for a user-selectable duration: 5s, 30s, 60s, or 10 mins.

• Optional outdoor wireless receivers are available to connect bells, sirens, floodlights, or strobes—ideal when you don’t want to run additional cabling.

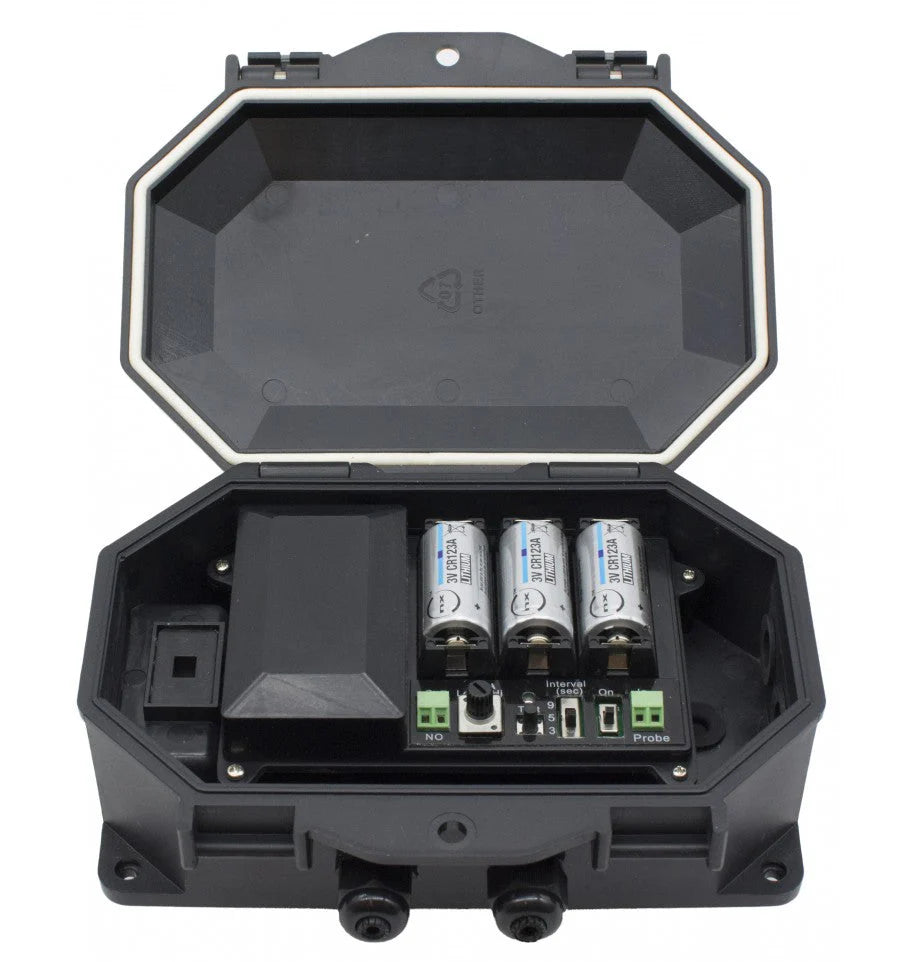

Wireless Transmitter & Probe

• Power: 3 × CR123A Lithium Batteries (supplied)

• Weatherproof transmitter box (155 × 100 × 65 mm)

• Probe size: 315 (L) × 35 (D) mm

• Cable length: 14m (2-core)

• Detection: Moving steel only—perfect for driveways, gateways, and areas with animals

• Adjustable sensitivity for fine-tuning

• Reset options: 3, 5, or 9 seconds

• Installation: Bury the probe just under the surface, parallel to the driveway. Can be placed near steel gates (only detects when moving).

• Recommended: Use protective sleeving for underground cable to prevent damage from small animals.

Wireless Receiver Features

• Wireless Range: 800m (line of sight)

• Adjustable Volume: Low to approx. 85 dB

• 32 Selectable Melodies

• Power: Mains powered (UK 3-pin & EU 2-pin transformer supplied)

• Optional Backup: 4 × AAA batteries (not supplied)

• LED Notifications: Power loss & low battery alerts

• Capacity: Supports up to 16 detectors, unlimited receivers

• Zone Identification: By sound and LED

• Outputs:

  • 4 × Dry relay outputs (N/O & N/C, momentary)

  • 12v DC output (adjustable duration: 5s, 30s, 60s, 10 mins)

• Mounting: Wall or desk

• Other Features: Pause modes, detector battery check

Bell (Loud Alert)

• Power Supply: 12v DC

• Volume: Approx. 85 dB

• Size: Ø150 mm × 60 mm depth

• Mounting: Bracket with 4 fixing holes

• Suitable for indoor & outdoor use

Siren ON/OFF Switch

• Size: 60 × 25 × 15 mm

• Operation: Simple toggle ON/OFF

• Colour: White

Expandable & Flexible

• Works with up to 16 detectors, including:

  • Additional Vehicle Probes

  • PIR Motion Sensors

  • Wireless Gate Contacts

  • Universal MT Transmitters

  • PIRs in bird box housings

  • Wireless SOS button

  • Pull cords, and more

• Add unlimited receivers for coverage across multiple buildings.

• Can trigger floodlights, sirens, bells, strobes, or GSM diallers.

Key Benefits

✔ Detects vehicles only – no false alarms from animals
✔ Long-range wireless (up to 800m)
✔ Loud 85 dB bell with ON/OFF control
✔ Expandable system with multiple detectors & receivers
✔ Easy to install, weatherproof, and reliable

Perfect for driveways, gated entrances, farms, warehouses, and commercial properties requiring reliable vehicle detection and audible alerts.
