Battery 3G GSM UltraDIAL Door & Pressure Mat Alarm with Indoor Sirens

The UltraDIAL 3G GSM Wireless Alarm is a battery-powered system designed to monitor doors, windows, and floor areas via a wireless magnetic contact kit and floor pressure mat. The kit also includes two indoor wireless sirens and will alert up to three key-holders via phone and SMS when triggered.

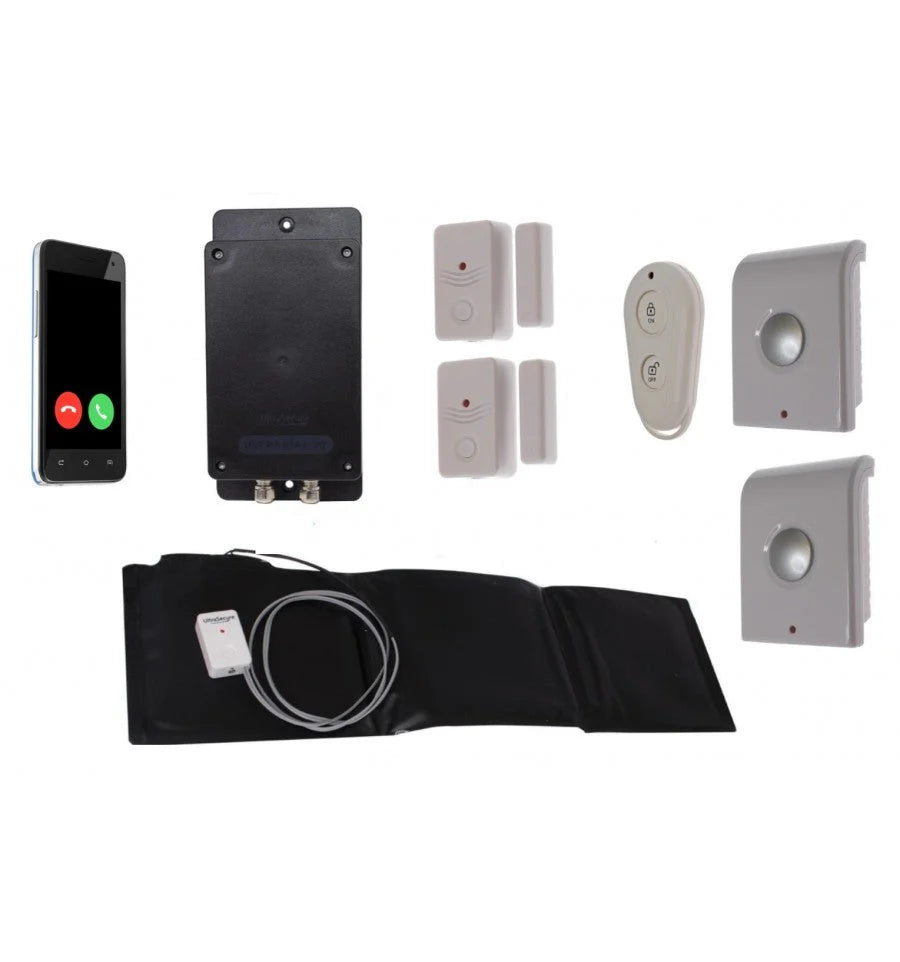

Supplied Kit Includes:

• 1 × UltraDIAL GSM Alarm

• 1 × Remote Control

• 2 × Magnetic Contact Kits

• 1 × Pressure Mat with 1m Cable & Wireless Transmitter

• 2 × Indoor Wireless Sirens with Batteries

• 3 × Lithium AA Batteries (UltraDIAL)

• 1 × Manual & Tool

How It Works

• The UltraDIAL, magnetic contacts, pressure mat, and sirens are linked via a secure wireless network.

• Arming and disarming is done using the remote control (up to 9 supported).

• When a door/window opens or someone steps on the pressure mat while armed, the UltraDIAL will silently alert key-holders via phone/SMS and trigger the sirens.

• Additional contacts, mats, or sirens can be added without limit.

• The UltraDIAL can be covertly hidden, thanks to its wireless, battery-powered design.

Wireless Door & Window Contact

• Magnet and contact installed on door/window; trigger occurs when separated (typically <5 mm).

• Wireless range: up to 100m line-of-sight.

• Powered by CR2 Lithium battery (included).

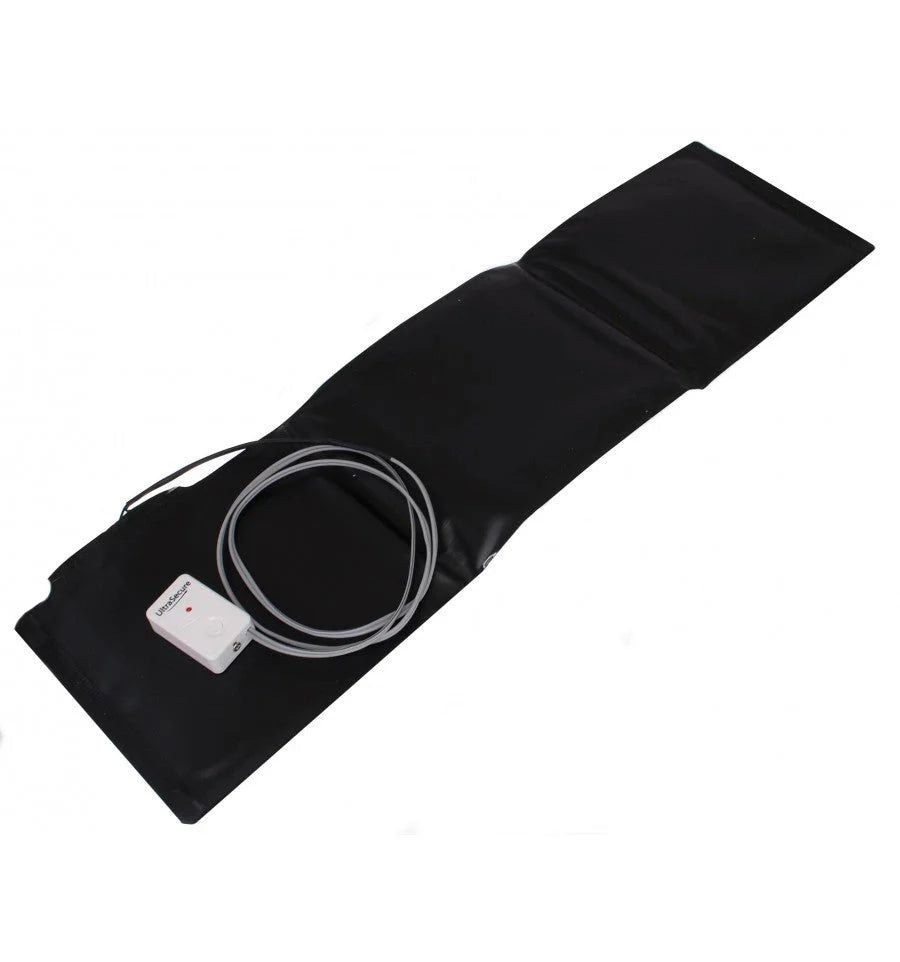

Pressure Mat

• Size: 590 × 180 mm | IP64 rated for light splash protection

• Placed under a small mat or carpet

• Transmitter powered by CR2 Lithium battery

• Sends wireless signal to the UltraDIAL and sirens when stepped on

• Cable length: 1m (can be extended)

Wireless Indoor Sirens

• Compact, battery-powered, 130dB siren

• Wireless range: 100m line-of-sight

• Powered by 2 × AA batteries (supplied)

• Siren duration: 60 seconds, system remains armed

Communication

• Uses a standard SIM card (PAYG or contract) to contact 1–3 key-holders via phone & SMS.

• Optional roaming SIM cards available for reliable UK network coverage.

Expansion Options

• Add more magnetic contacts, pressure mats, UltraPIR sensors, or indoor/outdoor sirens.

• Wireless range: 100m line-of-sight (~40–50m in most environments), allowing protection of multiple buildings.

Arming & Disarming

• Via remote control (up to 100m), SMS, or keypad if powered via 5V DC supply.

• Built-in 30-second exit delay.

• Remote options during alert:

  • Do nothing – continues calling other key-holders

  • Press # – disarm system

  • Press * – stop calls, system remains armed

Power & Battery Life

• UltraDIAL: 3 × Lithium AA batteries, up to 6 months (optional 5V DC/USB supply)

• Magnetic Contacts & Pressure Mat Transmitter: CR2 Lithium battery

• Wireless Sirens: 2 × AA batteries

Additional Features

• Weatherproof: UltraDIAL rated IP66 (refer to manual)

• Low battery notifications via SMS

• Optional weekly status reports

• Alerts for power failure and restoration (if mains used)

• Covert branding for discreet placement

• Security screws included

Specifications

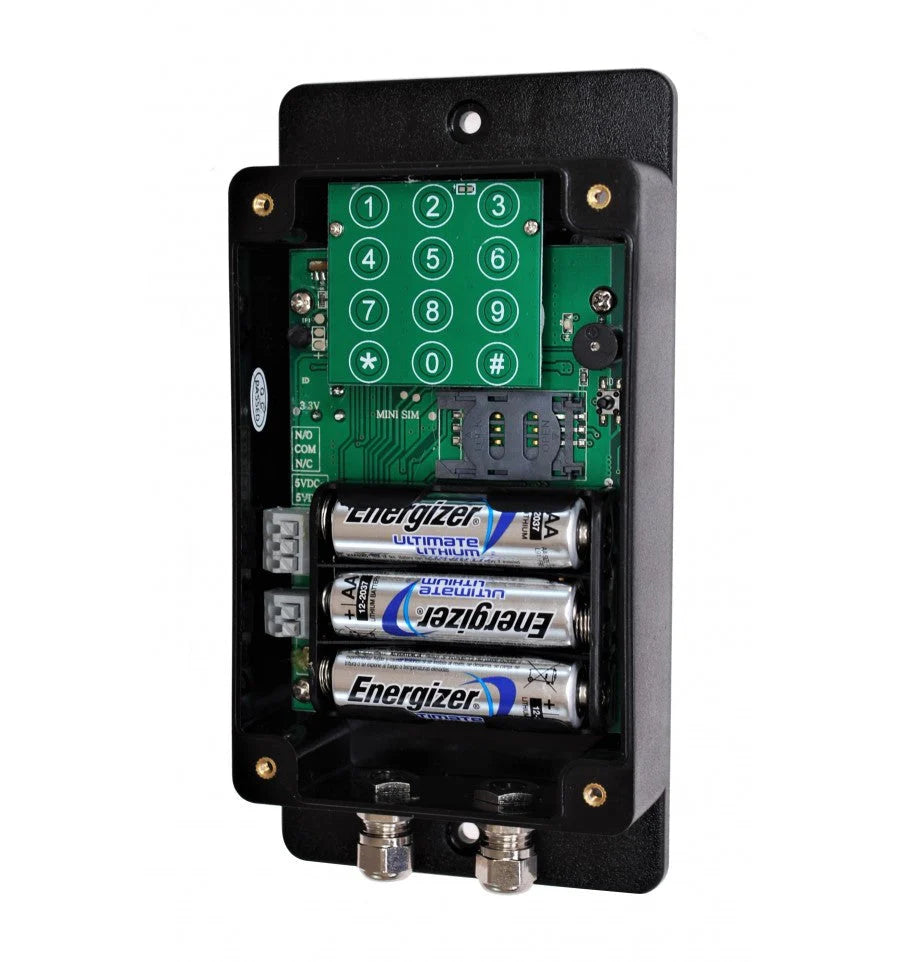

UltraDIAL Alarm

• Battery Power: 3 × Lithium AA

• Wireless Range: 100m

• Size: 160 × 82 × 42 mm | Colour: Black

• Inputs: 1 × volt-free N/O or N/C

• Outputs: Wireless PIRs & sirens

• GSM: 3G, quad-band

• Built-in Siren: No (covert alarm)

Magnetic Contact

• Power: CR2 Lithium battery

• Contact: 52 × 32 × 12 mm | Magnet: 45 × 12 × 14 mm

• Wireless Range: 100m line-of-sight

Pressure Mat

• Size: 590 × 180 mm

• IP64 splash-resistant

• Transmitter cable: 1m

• Wireless range: 100m

Wireless Sirens

• Built-in siren: 130dB

• Power: 2 × AA batteries

• Wireless range: 100m line-of-sight

• Size: 63 × 85 × 21 mm
