Battery Covert & Silent GSM UltraDIAL Alarm with 1 x Outdoor UltraPIR

The UltraDIAL Covert IP66 Standalone GSM Alarm is a battery-powered system supplied with a wireless Outdoor UltraPIR featuring a 130dB built-in siren that can be used in silent mode. It notifies up to three key-holders via phone and SMS. Supplied with two remote controls, this system is ideal for a variety of applications.

How It Works

• Includes a 3G GSM UltraDIAL alarm and one wireless Outdoor UltraPIR with a rubber hood.

• Both devices form a secure wireless network and are armed/disarmed simultaneously using the remote controls.

• The UltraPIR can operate silently or trigger its siren after activating the UltraDIAL.

• Unlimited additional PIRs and sirens can be added.

• The UltraDIAL can be covertly hidden due to its wireless, battery-powered design.

Applications

• Scaffolding

• Workshops, sheds, garages – UltraDIAL hidden from reach

• Caravans – Hidden in cupboards, under beds, or storage hatches

• Boats – Mounted discreetly in cabins or engine hatches

• New builds or renovations – Protect sites before they are weatherproof

• Rental or temporary homes – UltraDIAL out of sight

• Exhibition stands & shows – Temporary covert protection

Communication

• Requires a standard-size SIM card (PAYG or contract).

• Sends alerts to up to three key-holders via call and SMS.

• Optional roaming SIM cards ensure coverage across UK networks.

Outdoor UltraPIR Sensor

• Power: 3 × AA batteries (9–12 months typical)

• Built-in siren: 130dB, can be silenced

• Rubber hood: Narrows detection angle, provides weather protection, and helps conceal the PIR

• Detection range: 10 meters, 120° horizontal × 90° vertical

• Exit delay: 30s | Entry delay: 5s

• Supports silent operation and additional wireless sirens

Arming & Disarming

• Using 2 supplied remote controls (up to 9 supported)

• Range: 100m (line of sight)

• Optional SMS arming/disarming if UltraDIAL is powered via 5V supply

• Built-in 30-second exit delay

Key-Holder Notifications

• Contacts 1–3 key-holders by phone and SMS

• Typical alert: 30–60 seconds on battery, faster on mains power

• Options during call:

  • Do nothing – continues contacting others

  • Press # – disarm UltraDIAL

  • Press * – stop calls, keep system armed

Recording

• Record a 30-second message for key-holders

Power Supply

• UltraDIAL: 3 × Lithium AA batteries (6 months typical) or optional 5V DC/USB

• UltraPIR: 3 × AA batteries

• Remote controls: 1 × 3V lithium coin battery each

Additional Features

• Weatherproof: IP66, not for submersion

• Low battery notifications via SMS

• Optional weekly status report

• Power failure alerts if external supply used

• Security screws included for lid

• Covert branding for discreet installation

Wired Alarm Inputs

• 1 × volt-free input (N/O or N/C), compatible with:

  • Water/flood sensors

  • Door/gate contacts

  • Pressure mats

  • Perimeter beams

  • Tilt switches

  • Alarm panels

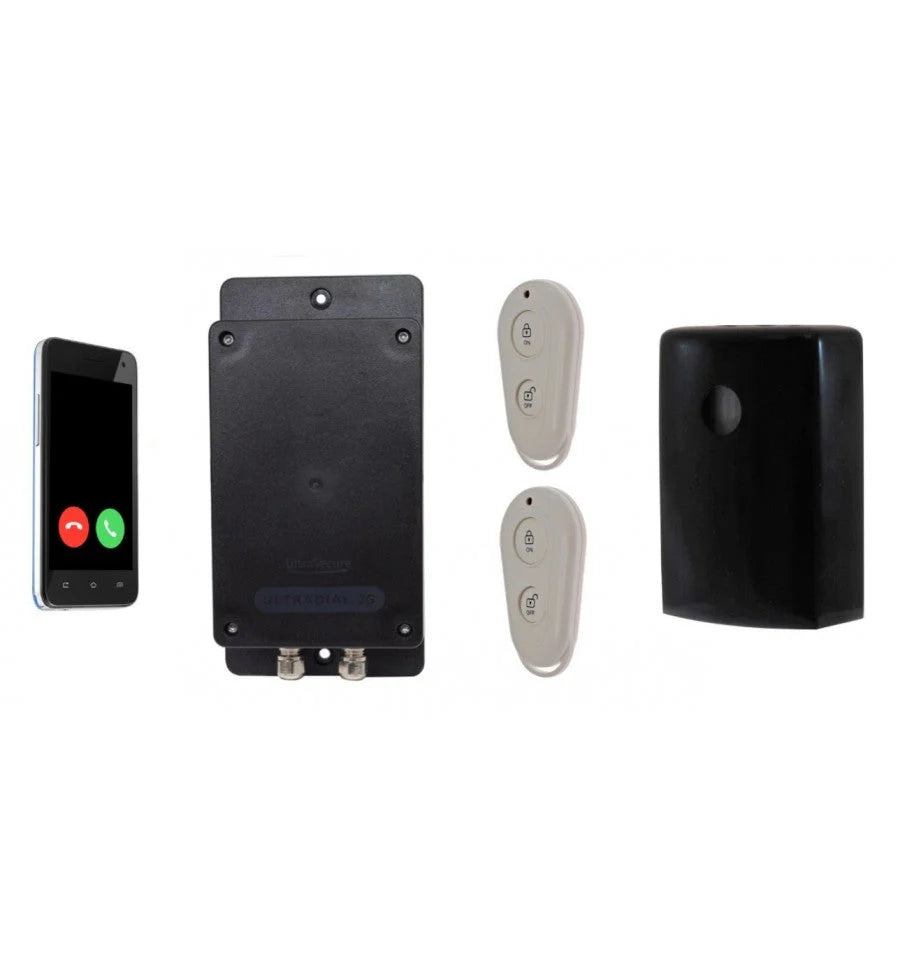

Kit Includes

• 1 × UltraDIAL GSM Alarm

• 1 × Outdoor UltraPIR with mounting bracket and rubber hood

• 2 × Remote controls

• 3 × Lithium AA batteries (UltraDIAL)

• 3 × AA batteries (UltraPIR)

• 1 × Security tool

• 1 × User manual

Specifications

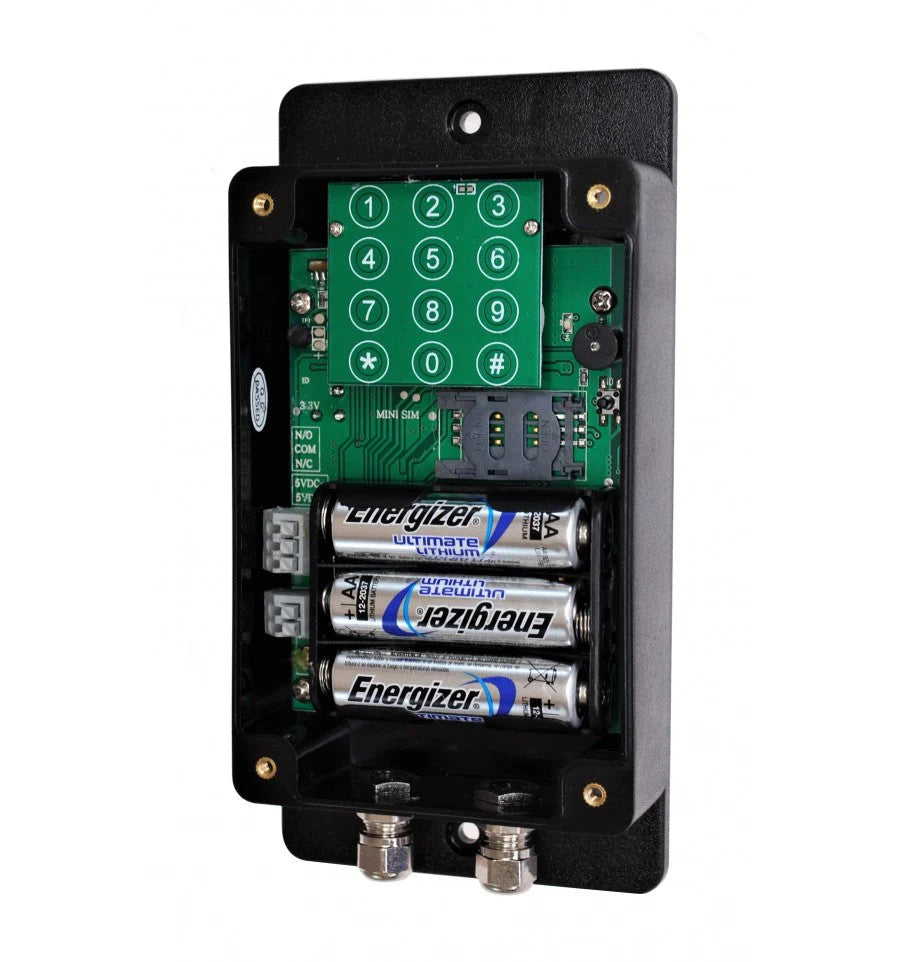

UltraDIAL GSM Alarm

• Power: 3 × Lithium AA batteries (6 months typical) or optional 5V DC/USB

• Size: 160 × 82 × 42 mm | Colour: Black

• Wireless range: 100m (line of sight)

• GSM: 3G, quad-band

• Inputs: 1 × volt-free N/O or N/C

• Outputs: Wireless PIRs, sirens

• Arming/Disarming: Remote, keypad, SMS, call

• Alerts: Low battery, power fail/restore, optional weekly report

Outdoor UltraPIR

• Power: 3 × AA batteries

• Detection range: 10m | Angle: 120° H × 90° V

• Wireless range: 100m (line of sight)

• Built-in siren: 130dB, can be silenced

• Exit delay: 30s | Entry delay: 5s

• Silent operation: Supported

• Rubber hood: Included for beam adjustment and concealment

• Size: 110 × 70 × 40 mm (depth incl. bracket 65 mm)
