Battery GSM UltraDIAL Alarm with PIR, Door Contact & Solar Siren

The UltraDIAL 3G GSM Wireless Alarm is a covert, battery-powered IP66 alarm system that connects a PIR sensor, magnetic door/window contact, and an outdoor solar-powered siren to protect your property. The system will alert up to three key-holders via phone and SMS while simultaneously triggering sirens when an intrusion is detected.

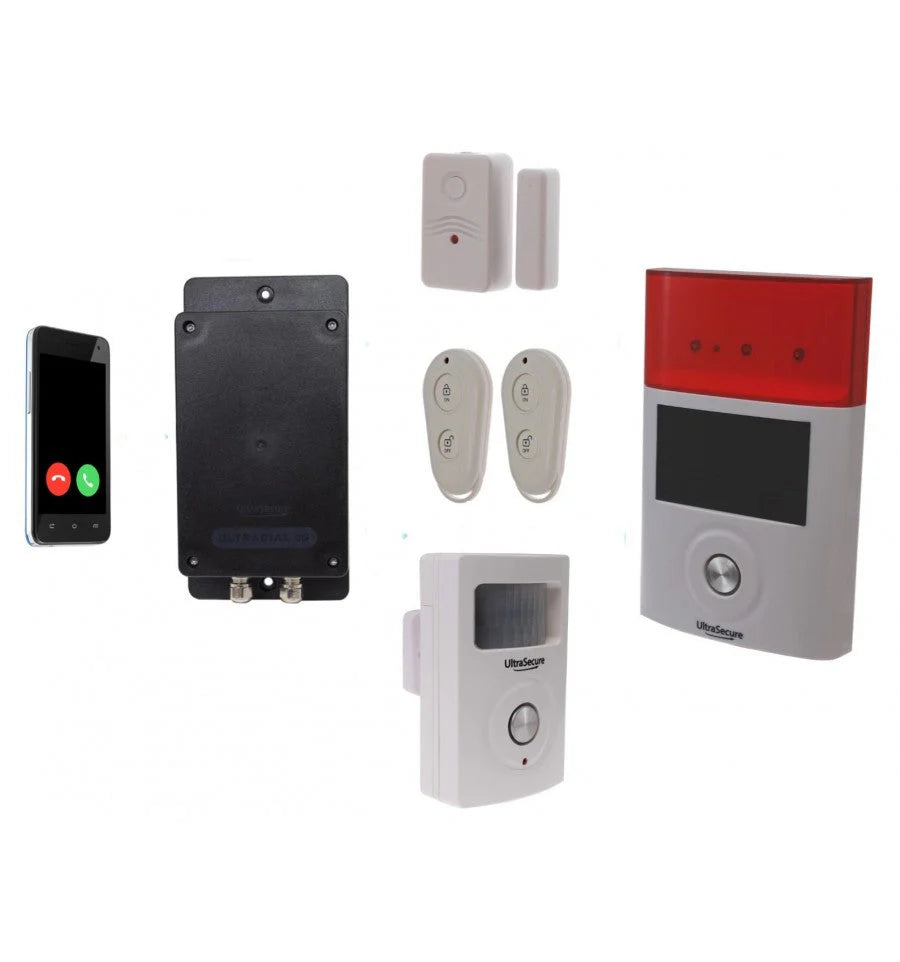

Supplied Kit Includes:

• 1 × 3G UltraDIAL GSM Alarm

• 1 × BT Wireless PIR (130dB Siren)

• 1 × Magnetic Door/Window Contact

• 1 × Outdoor Wireless Solar Siren

• 2 × Remote Controls

• 3 × Lithium AA Batteries (UltraDIAL)

• 1 × Manual

How It Works

• All devices are connected via a secure wireless network, armed/disarmed together using the remote control.

• PIR sensor or door/window contact activation triggers the UltraDIAL alarm, alerts key-holders, and activates both the PIR’s siren and the outdoor siren.

• Additional PIRs or sirens can be added with no limit.

• UltraDIAL can be discreetly hidden thanks to its wireless, battery-powered design.

Applications

• Workshops, sheds, and garages

• Caravans and boats

• New builds, renovations, or temporary rental homes

• Exhibition stands

Wireless PIR

• Passive infrared detection with 8m range, 120° horizontal × 90° vertical coverage

• Built-in 130dB siren, 30s exit delay, 5s entry delay

• Powered by 3 × AA batteries, 12–18 months battery life

Magnetic Door/Window Contact

• Triggers when door/window opens (≤5mm separation recommended)

• Wireless range: 100m line-of-sight

• Powered by CR2 Lithium battery

Outdoor Solar Siren

• Built-in 130dB siren with rapid strobe light

• Powered by solar-rechargeable 3.7V battery or optional AA batteries for low-light locations

• Battery life: 9–12 months (normal use)

• Weatherproof (IP65) with tamper switch

• Wireless range: 50m (2G) / 100m (3G)

Communication

• Requires a standard SIM card (PAYG or contract) to call or SMS up to three key-holders.

• Optional roaming SIM cards available for UK-wide coverage.

• Pre-recorded 30-second message can be sent to key-holders during alerts.

Arming & Disarming

• Remote control (up to 100m, 9 remotes supported)

• SMS or keypad when using 5V power supply

• 30s exit delay built-in

• Remote call options: # to disarm, * to stop calls but stay armed

Additional Features

• Wireless range: 100m line-of-sight (~40–50m in most applications)

• Expandable with additional PIRs, sirens, or wireless contacts

• One volt-free wired input (N/O or N/C) for other devices (e.g., flood sensors, pressure mats, tilt switches)

• Fully weatherproof IP66

• Low battery and power failure notifications via SMS

• Optional weekly status reports

• Security screws and covert branding for discreet installation

Specifications

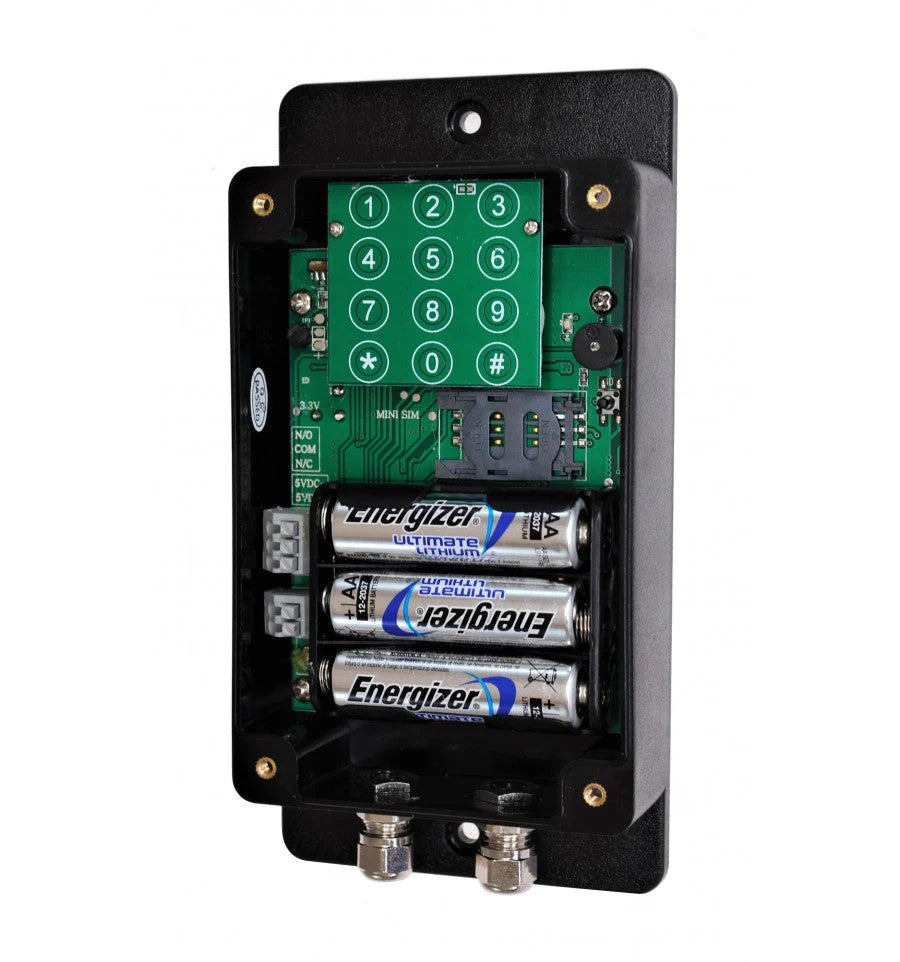

UltraDIAL Alarm:

• Battery: 3 × Lithium AA (6-month life)

• Optional 5V DC/USB power

• Wireless range: 100m

• Size: 160 × 82 × 42 mm | Colour: Black

BT PIR:

• Detection: 8m, 120° × 90°

• Built-in 130dB siren, 30s exit, 5s entry delay

• Power: 3 × AA batteries

• Size: 68 × 108 × 36 mm

Magnetic Contact:

• Wireless range: 100m

• Power: CR2 Lithium battery

• Size: 52 × 32 × 12 mm

Outdoor Solar Siren:

• Siren: 130dB, 3-min duration, rapid strobe

• Power: Built-in 3.7V lithium (solar-rechargeable) or optional 4 × AA

• Weatherproof: IP65

• Size: 110 × 170 × 28 mm

Remote Control:

• Wireless range: 100m

• Battery: 3V coin battery

• Size: 75 × 45 × 12 mm

Warranty: 1 year on all components
