Protect 800 Driveway Alarm & 4G Battery Camera Kit

The Protect 800 Security Kit combines a long-range wireless driveway alarm system with 2 PIR sensors and a 4G battery-powered outdoor camera to monitor and safeguard your property. These two systems operate independently but can be used together, allowing you to check the camera feed whenever the driveway alarm detects activity. The camera also supports two-way audio and recording.

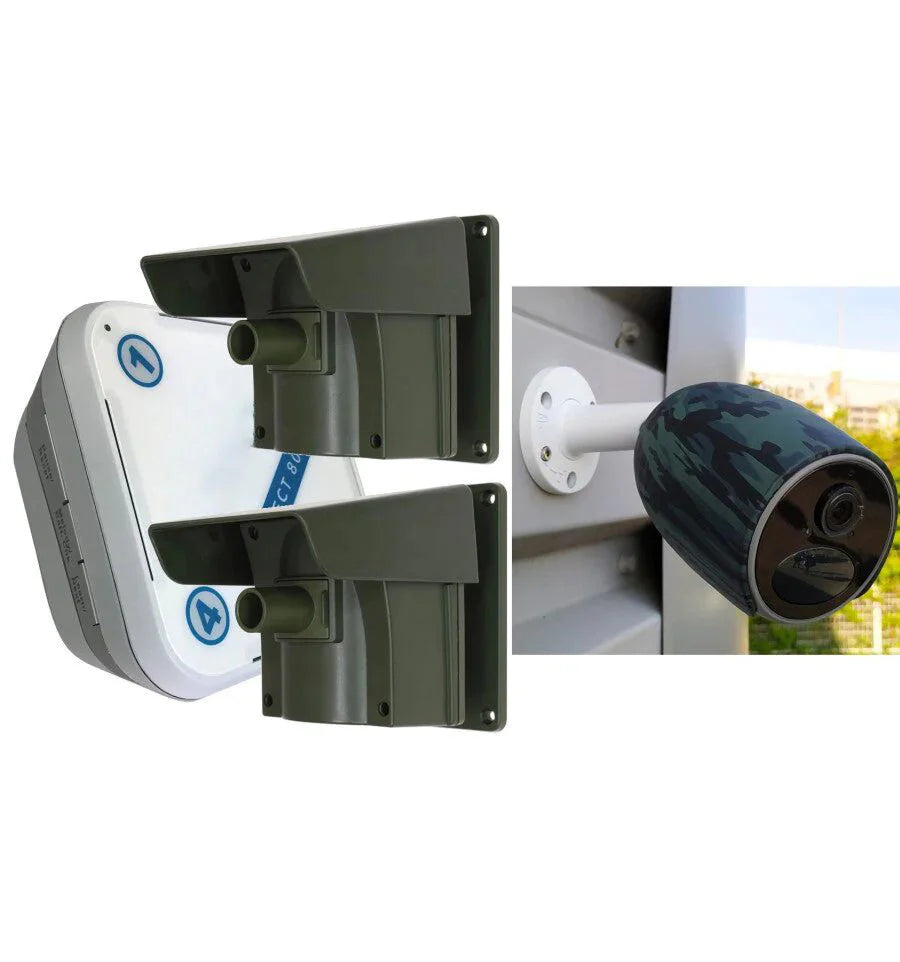

Kit Includes

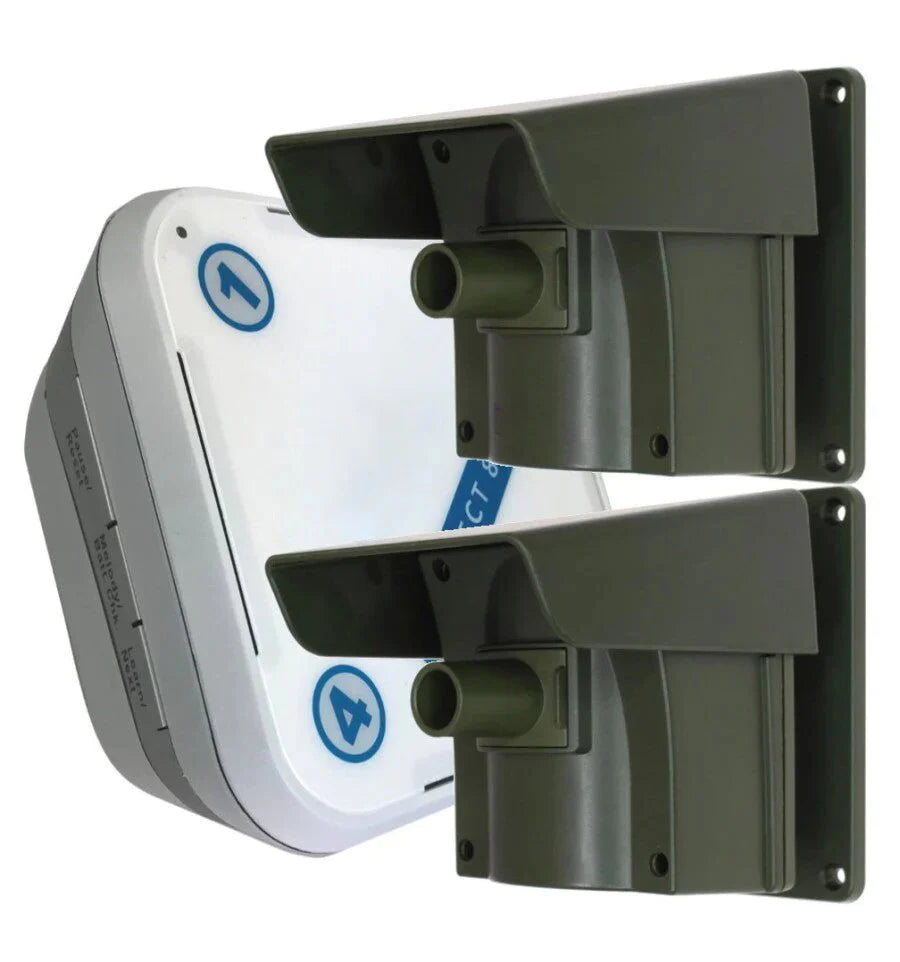

• 1 × Indoor 4-Channel Wireless Driveway Alarm Receiver (expandable)

• 2 × Outdoor Wireless PIR Sensors (expandable)

• 1 × 4G Battery-Powered Outdoor Camera with SD card and SIM (expandable)

Driveway Alarm Features

PIR Sensors:

• Battery-powered and weatherproof, ideal for driveways, gardens, sheds, garages, fuel tanks, and more.

• Single-sided beam for easy installation—no alignment with other devices required.

• Detects vehicles and people; optional lens caps prevent small animal detection (foxes, cats).

• Wireless signal transmission up to 800 metres line-of-sight (~400–600 metres typical).

• Additional detectors can be added, including PIRs, vehicle sensors, gate contacts, push buttons, or transmitters.

Receiver:

• Plays a chosen chime at a selected volume when motion is detected.

• Expandable: Supports up to 16 PIRs and unlimited receivers.

• Adjustable volume (up to 85 dB), 32 selectable melodies.

• Mains powered with optional battery backup (4 × AAA, not supplied).

• Zone indicators, dry relay outputs, 12V DC outputs, and optional pause modes.

Operational Options:

• 24-hour operation for all-day monitoring.

• Night-time only operation for reduced daytime alerts.

• Multiple receivers and PIRs can be used to cover different areas with different alert types.

Lens Cap Options:

• Pencil Beam: Narrow, avoids small to medium animals.

• Medium Beam: Detects vehicles, avoids most small animals.

• Wide Beam (no cap): Prioritises vehicle detection.

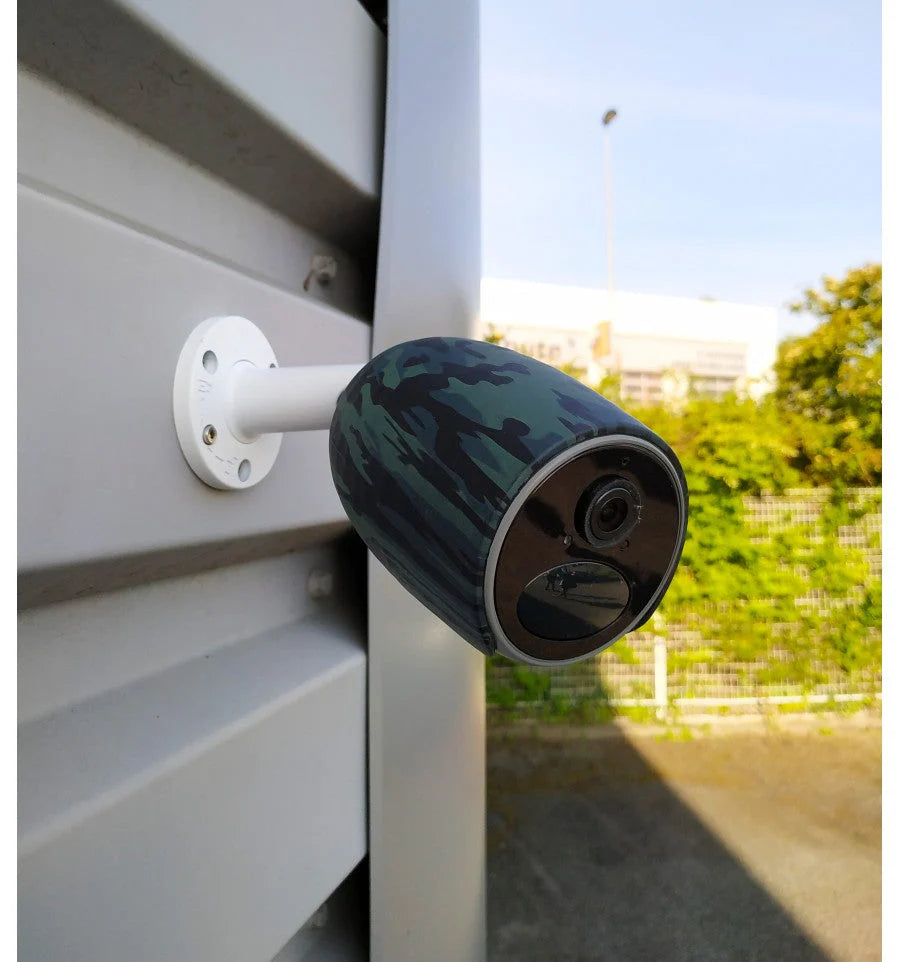

4G Battery Camera Features

Ideal for remote locations without Wi-Fi, including second homes, caravans, boats, stables, workshops, farm buildings, scaffolding, and storage units.

Camera Capabilities:

• 1080P resolution with adjustable Fluent Mode for low data usage

• Built-in PIR with 3 sensitivity levels:

  • Low: 4 m (people/animals) – 10 m (vehicles)

  • Medium: 6 m – 12 m

  • High: 10 m – 16 m

• Night vision (10 metres, colour day / black & white night)

• Two-way audio for listening and speaking

• Push notifications for real-time alerts

• Built-in siren, manually or automatically triggered

• Recording of video, images, and audio to 16GB SD card (expandable to 64GB)

• Live streaming via Reolink app, with up to 6× digital zoom

• Fully weatherproof (IP67) and battery powered (7800 mAh, approx. 2 months usage)

• Optional solar panel for continuous power

• Supplied with a camouflage cover and adjustable mounting brackets

Battery & Connectivity

• Camera battery is rechargeable via USB and can be charged in or out of the device.

• Supplied with a multi-network 4G SIM card (compatible with O2, EE, Vodafone).

• Remote access and operation via smartphone or tablet.

Kit Contents

Driveway Alarm:

• 1 × Protect 800 Wireless Receiver

• 1 × Optional Wall Bracket

• 3-pin UK & 2-pin EU plug-in power supply

• 2 × PIR sensors, sun & rain hoods, 8 × AA batteries, detection caps, screws, screwdriver, manual

Camera:

• 1 × 4G Battery Camera

• 1 × Rechargeable battery

• 1 × USB charging cable

• Mounting brackets & screws

• 16GB micro SD card

• 4G data SIM

• Camouflage cover

• User manual

Technical Specifications

Driveway Alarm:

• Wireless range: 800 metres line-of-sight

• Adjustable volume: up to 85 dB

• 32 melodies

• Expandable: up to 16 detectors and unlimited receivers

• Relay outputs: 12V DC with adjustable duration

• Operating temperature: -20°C to 50°C

Camera:

• Resolution: 1080P

• Night vision: 10 metres

• PIR detection: 120°

• Battery: 7800 mAh (2 months typical)

• Weatherproof: IP67

• SD card: 16GB (expandable to 64GB)

• Two-way audio & built-in siren

• App: Reolink, live streaming, push notifications, recording
