Protect 800 Long Range Driveway Metal Detecting Alarm with Outdoor Receiver & Adjustable Siren

The Protect 800 Long Range Driveway Metal Detecting Alarm is a comprehensive security solution featuring an outdoor receiver and a surface-mounted, weatherproof adjustable siren. Designed to alert you to intruders, the siren’s volume and tone can be customized to your preference, and its duration is fully controllable via a long-range remote control. The siren can also be triggered manually at any time using the SOS button.

How It Works

• The hidden metal-detecting probe monitors moving steel and sends a wireless signal up to 800 metres (line of sight; typically 400–600 metres in most environments) to the outdoor receiver.

• When the receiver is armed, the adjustable siren is activated for the set duration. This can be turned off before the duration ends using the remote control.

• The SOS button can be used in security or medical emergencies, latching the siren on until it is manually turned off via the remote.

• The weatherproof outdoor receiver is powered by a 12V plug-in transformer, with cable entry through waterproof glands.

Wireless Transmitter & Probe

• Fully weatherproof, powered by 3 × CR123A batteries

• Comes with 15 metres of cable to position the transmitter in a covert location suitable for wireless transmission

• Probe designed to be buried just below surface level/grass, detecting only moving steel—perfect for properties with large roaming animals or near locked steel gates

• Cable should be fitted in protective sleeving to prevent damage from small animals

• Sensitivity adjustable via transmitter board

• Optional indoor chime receiver can be added for notifications inside the home or office

Siren Duration Options

Selectable via internal dip-switches:

• 1, 3, 10, 15, 20, 30 seconds or minutes

• Latched ON until disarmed using remote control

Outdoor Receiver Features

• Two channels, each capable of supporting up to 4 Protect-800 sensors

• Compatible sensors: PIRs, vehicle probes, MT transmitters, gate contacts, PIRs in bird boxes, and transmitter boards

• Each channel can control additional 12V devices with independently adjustable durations, e.g.:

  • Loud siren for 20 seconds

  • 12V floodlight for 10 minutes

Remote Control Features

• Arm & disarm each channel on the receiver

• Trigger SOS button to activate connected devices regardless of armed status

• Device remains latched ON until switched off via remote

• Intelligent LED feedback confirms signal reception

• Unlimited additional remote controls can be added

• Operating range: 800 metres line-of-sight (approx. 400–600 metres in real applications)

• Powered by 2 × AAA batteries (supplied)

Indoor Receiver

• Optional indoor receivers can be added for notifications inside the house, regardless of the outdoor receiver’s armed status

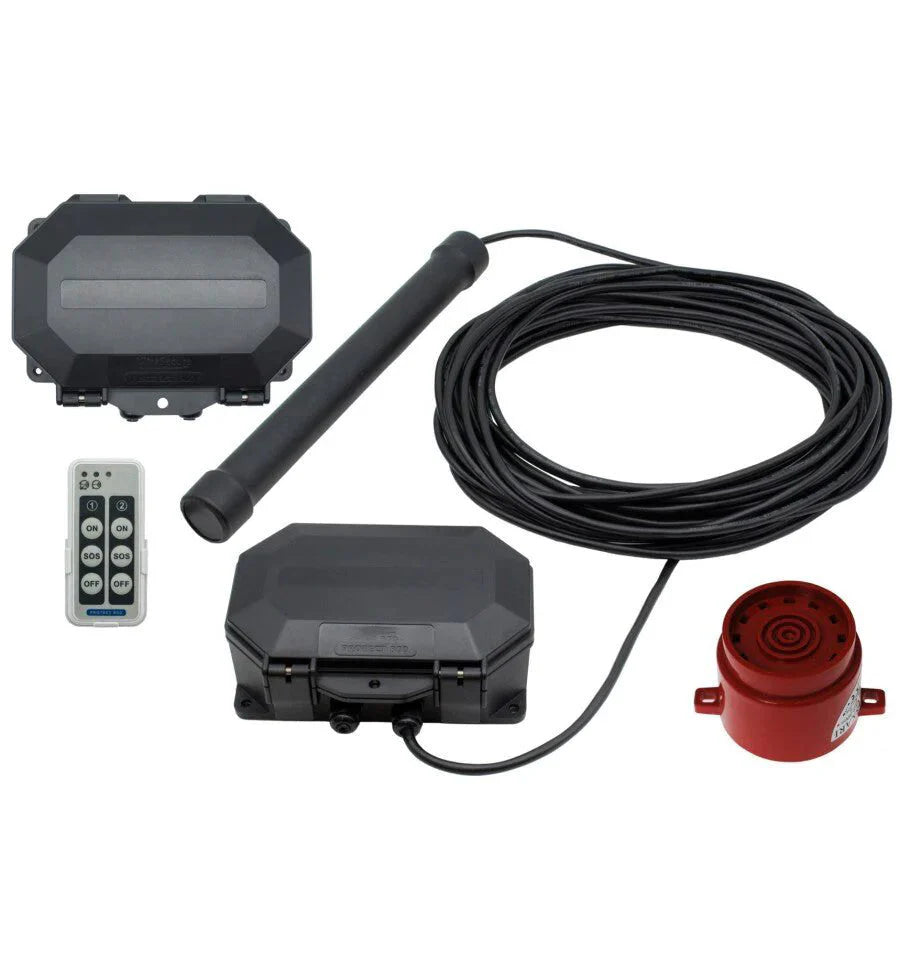

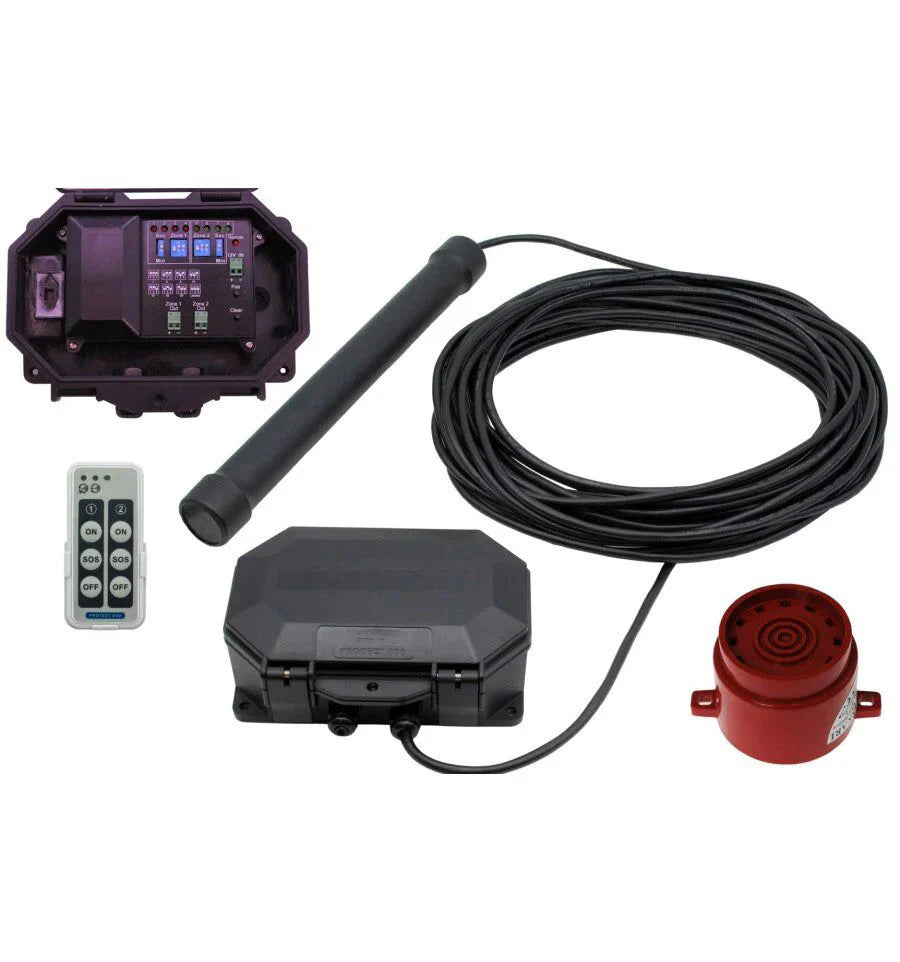

Kit Includes

• 1 × Outdoor Receiver (P800-WSR/1)

• 1 × Remote Control (P800-WSK/1)

• 1 × 12V DC Plug-in Power Supply

• 2 × AAA Batteries

• 1 × Protect 800 Wireless Driveway Metal Detecting Probe & Transmitter (with batteries)

• 1 × Adjustable Siren

Specifications

Outdoor Receiver

• Weatherproof: Yes

• Power Supply: 12V 5A DC

• Channels: 2 (4 sensors per channel)

• Operating Range: 800 metres (line of sight)

• Outputs: 2 × 12V DC

• Output Duration: 1, 3, 10, 15, 20, 30 seconds/minutes, or latched ON

• Arming/Disarming: Remote control

• Frequency: 869.400–869.650 MHz

• Size: 170 × 125 × 60 mm

Remote Control

• Operation: Arm, Disarm, SOS (both channels)

• Power: 2 × AA batteries (supplied)

• Range: 800 metres line-of-sight

• Multiple remote support: Unlimited

• Feedback LED: Yes

• Size: 85 × 40 × 25 mm

• Wall bracket: Supplied

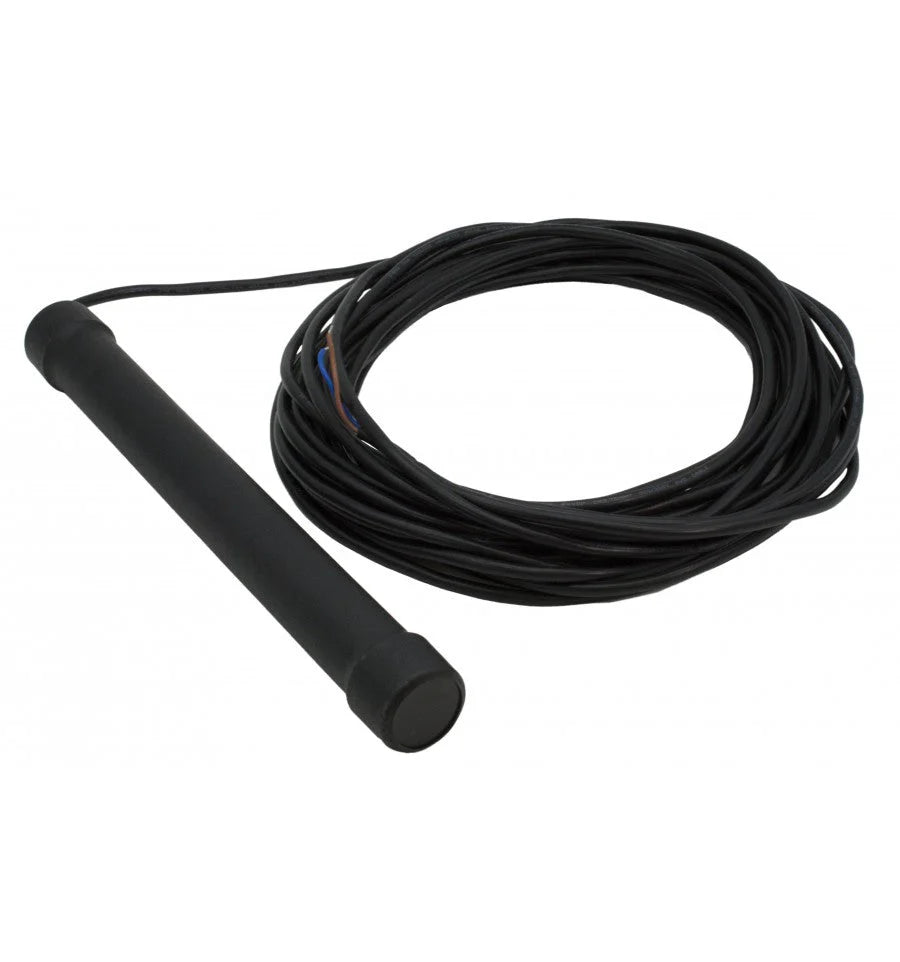

Wireless Transmitter & Probe

• Mounting Box Size: 170 × 125 × 60 mm

• Weatherproof: Yes

• Power: 3 × CR123A batteries

• Probe Cable Length: 15 metres

• Probe Size: 310 × 35 mm

• Wireless Range: 800 metres line-of-sight

Adjustable Siren

• Colour: Red

• Input Voltage: 9–28V DC

• Weatherproof: IP65

• Siren Tones: 32 selectable

• Volume: Adjustable (0–106 dB)

• Dimensions: Rear diameter 50 mm, Front diameter 25 mm, Height 45 mm, Body depth 32 mm, Lug spacing 70 mm

• Mounting: 2 × lugs (~5 mm diameter)
