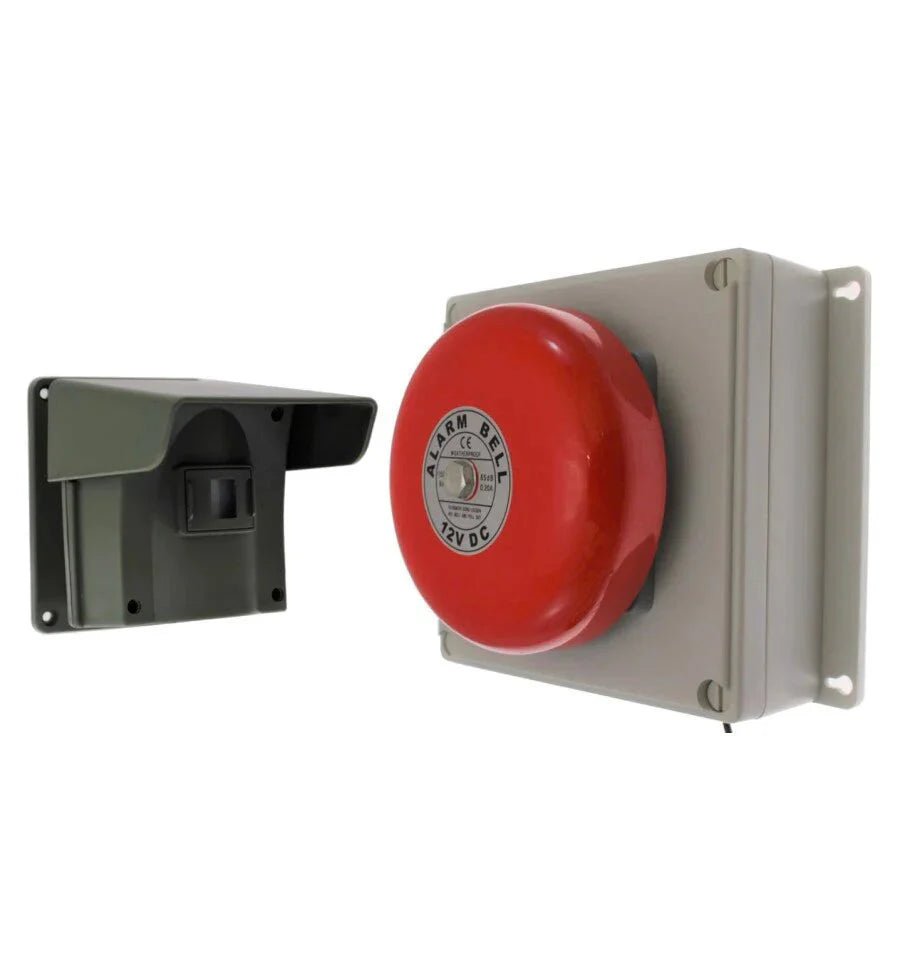

Protect 800 Long-Range Wireless Driveway Alert – Outdoor Bell Receiver & PIR with New Pencil Beam

The Protect 800 is a high-performance, long-range (800 m line-of-sight) wireless driveway alert system, ideal for monitoring driveways, yards, gardens, homes, or commercial premises. This kit includes:

• 1 × Outdoor Bell Receiver – for audible alerts while outside

• 1 × Outdoor Wireless PIR – with attachable lens caps

How It Works:
The weatherproof, battery-powered PIR can be installed around your property to monitor:

• Driveways

• Gardens

• Sheds & garages

• Fuel tanks

• And more

The PIR uses a single-sided beam for fast and simple installation—no alignment with other devices is needed. It detects both vehicles and people and comes with optional clip-on lens caps to ignore small animals like foxes or cats.

When motion is detected, the PIR sends a wireless signal up to 800 m (approx. 400–600 m in most practical applications) to the outdoor bell receiver, which triggers a loud bell for a preset duration. The receiver is powered via a plug-in transformer.

Expandable System:
Additional detectors and accessories can be added for complete property coverage:

• PIR sensors

• Vehicle detectors

• Gate contacts

• Push buttons

• Other transmitters

• Additional indoor and outdoor receivers (no limit)

Outdoor Bell Receiver Features:

• Weatherproof mounting box (IP65)

• Loud 85 dB bell with adjustable activation: 5, 30, 60 seconds, or 10 minutes

• Night mode option for selective PIR activation

• Wireless range: up to 800 m line-of-sight

• Optional 4 × AAA battery backup (not supplied)

• Supports up to 16 detectors per system

• Multiple receivers can be added without limit

• 1 × dry relay output for triggering other devices

• 12 V DC output with adjustable duration

PIR Sensor Features:

• Wireless range up to 800 m (line-of-sight)

• Fully waterproof with sunshade and rain hood

• Detection range up to 15 m (longer for large objects)

• Adjustable sensitivity settings

• Up to 16 PIRs per system

• Quick and simple installation

• Battery-powered (4 × AA batteries supplied, 9–12 months typical life)

• Low battery warning and status check via receiver

• Vehicle detection optimized with lens cap adjustments

• Flexible operation: 24 hour or night-time only

Lens Cap Options:

• Pencil Beam: Very narrow, ideal for avoiding small/medium animals

• Medium Beam: Narrow, ignores most small animals while detecting vehicles efficiently

• No Cap: Maximizes vehicle detection

Installation Tips:

• Avoid pointing the PIR directly toward the rising sun

• Can be discreetly hidden inside plastic or wooden enclosures without affecting the 800 m wireless range

Kit Includes:

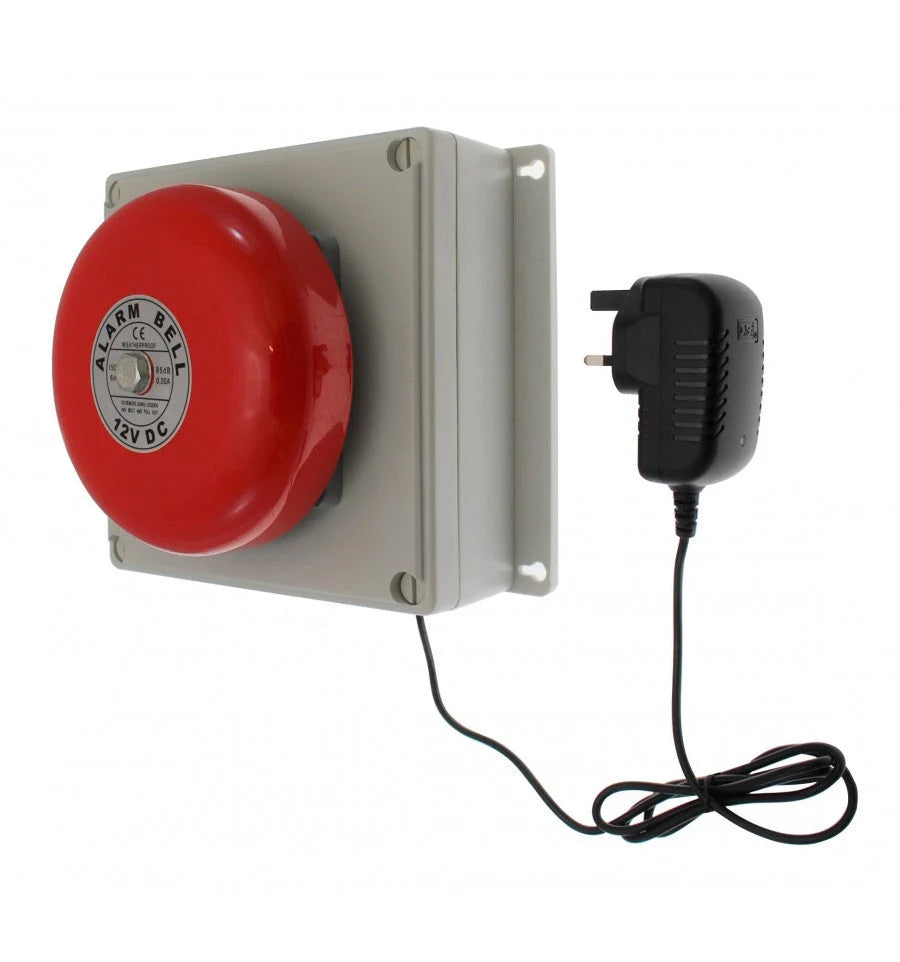

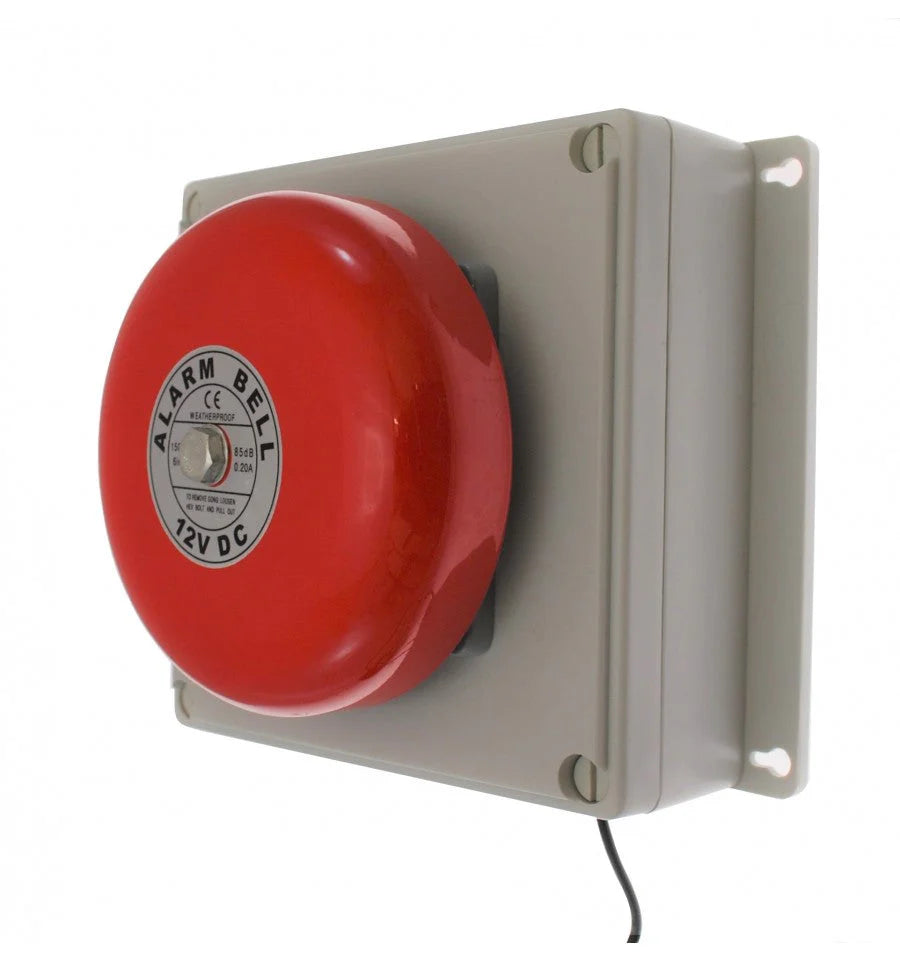

Outdoor Bell Receiver:

• 1 × Protect 800 Wireless Receiver

• 1 × Weatherproof Mounting Box

• 1 × 85 dB Bell

• 3-pin (UK) & 2-pin (EU) plug-in transformer

PIR Sensor:

• 1 × Protect 800 Wireless PIR

• 4 × AA batteries

• 1 × Set of removable detection caps

• 1 × Sun & rain hood

• 1 × Screwdriver and screws

• 1 × User manual

Specifications:

Receiver:

• Wireless range: 800 m line-of-sight

• Volume: Adjustable up to 85 dB

• Melody options: 32

• Power: 3-pin UK / 2-pin EU transformer

• Battery backup: 4 × AAA (not supplied)

• Dry relay: 1 (N/O & N/C)

• 12 V DC output with adjustable duration

• Mounting: Wall or desk

PIR Sensor:

• Wireless range: 800 m line-of-sight

• Detection range: Up to 15 m

• Detection angle: 9–12° @ 12 m

• Lens caps: Pencil, Narrow, Wide

• Battery: 4 × AA, 9–12 months

• Operating temperature: -20 °C to 50 °C

• Size with bracket & sun hood: 120 × 80 × 100 mm

This Protect 800 Driveway Alert Kit provides flexible, scalable, and reliable protection for homes and businesses, with long-range wireless coverage and adjustable detection to suit your property’s needs.
