Protect-800 Long Range Wireless Gate Alarm with Outdoor Receiver & 6-Tone 118 dB Siren

The Protect-800 Wireless Gate Alarm is a high-performance security solution featuring a magnetic gate contact, fully weatherproof outdoor receiver, and a powerful 6-tone 118 dB siren. Designed for maximum security, the siren duration is fully adjustable and controlled via a long-range remote control. When armed, the siren activates for the selected duration whenever the gate is opened. You can also trigger the siren manually at any time using the SOS button on the remote from up to 800 m away.

How It Works:
The battery-powered transmitter board is housed inside a weatherproof box and communicates wirelessly with the outdoor receiver over a range of up to 800 m line-of-sight (typically 400–600 m in most applications). Powered by a 3 V CR123A battery (supplied), the transmitter lasts 12–18 months under normal use.

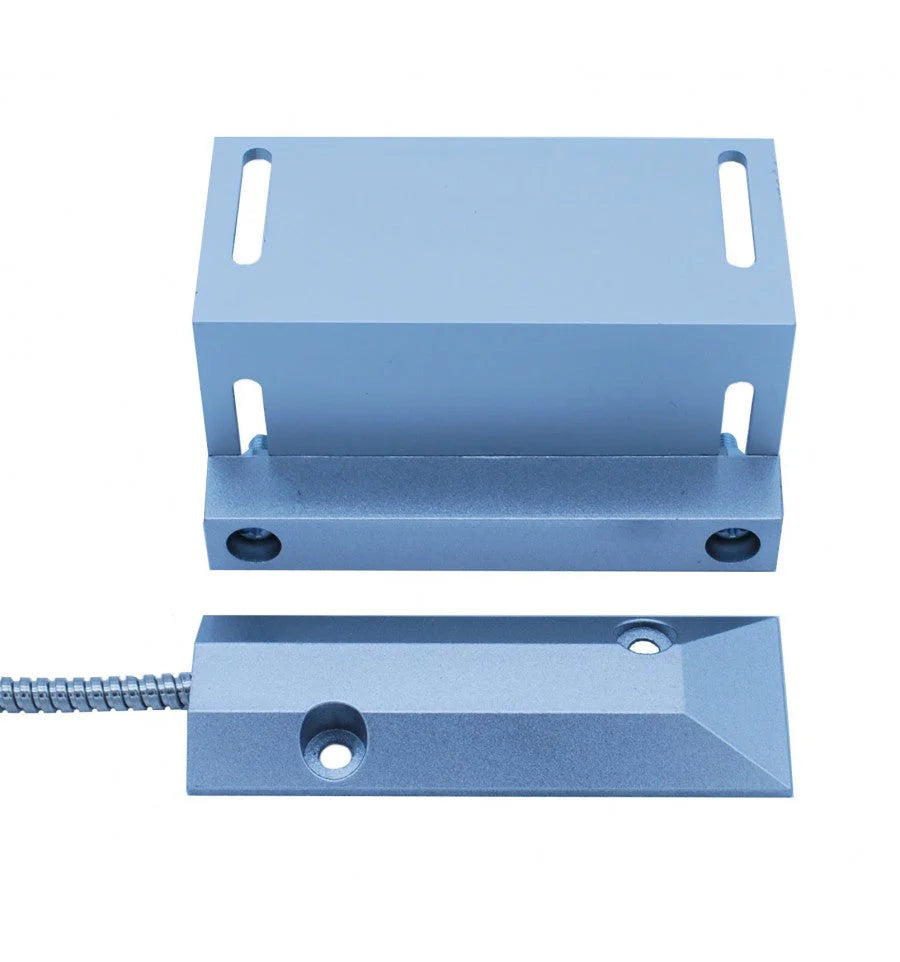

A wired magnetic contact with an armored protective sleeve attaches to the gate post, door frame, or floor (for doors or roller shutters), while the magnet is mounted on the gate, door, or shutter. An optional right-hand mounting bracket is included to simplify installation.

When the gate is opened while the system is armed, the siren sounds for the selected duration. Owners can manually stop the siren using the remote. In emergency situations, the SOS button can trigger the siren, which will remain latched ON until manually deactivated. Additional remote controls can be added for convenience.

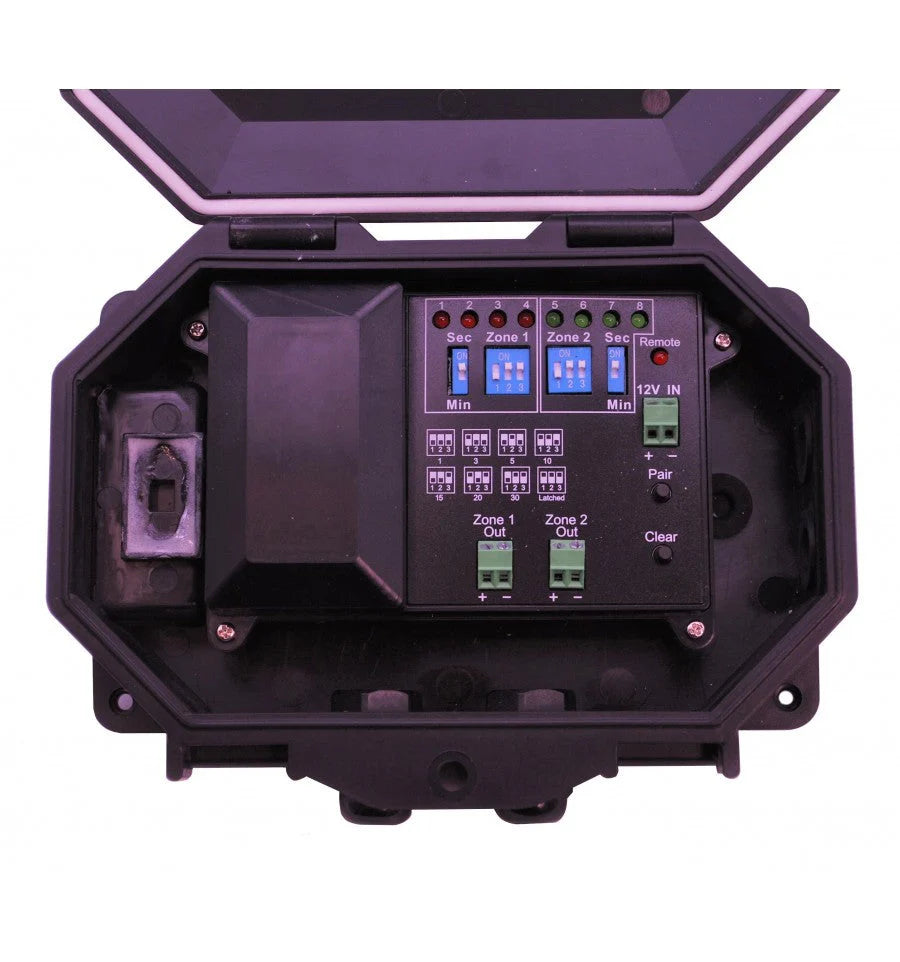

The fully weatherproof outdoor receiver is powered by a 12 V plug-in transformer, with cable entry via waterproof glands on the bottom or rear panel. An optional indoor chime receiver can be added to provide alerts inside the home or office.

Siren Duration Options:
Adjustable via internal dip-switches:

• 1, 3, 10, 15, 20, or 30 seconds/minutes

• Latched ON (until disarmed via remote control)

Outdoor Receiver Features:

• 2 channels with 12 V outputs

• Supports up to 4 Protect-800 sensors per channel, including PIRs, vehicle probes, MT transmitters, gate contacts, bird box PIRs, and transmitter boards

• Customizable output durations per channel for devices such as sirens or 12 V floodlights

• Weatherproof construction with cable entry glands

• Remote-controlled arming, disarming, and SOS activation

• Operating range: 800 m line-of-sight

Remote Control Features:

• Arm/disarm either channel independently

• SOS button activates connected devices regardless of arming status

• Intelligent feedback LED confirms successful transmission

• Unlimited additional remotes supported

• Range: 800 m line-of-sight

• Powered by 2 × AAA batteries (supplied)

Gate Contact & Transmitter:

• Wireless range: 800 m line-of-sight

• Battery: 3 V CR123A (12–18 months)

• Wired input: NO momentary volt-free for circuit board use

• Weatherproof plastic mounting box (IP65)

• Magnetic contact: normally open (NO) or normally closed (NC)

• Cable protection: armored

• Magnet dimensions: 105 × 15 × 15 mm

Siren Specifications:

• Voltage: 12 V DC

• Current: 310 mA

• Size: 101 × 96 mm

• Sound level: 118 dB

• Tone: 6-tone

• Colour: Black

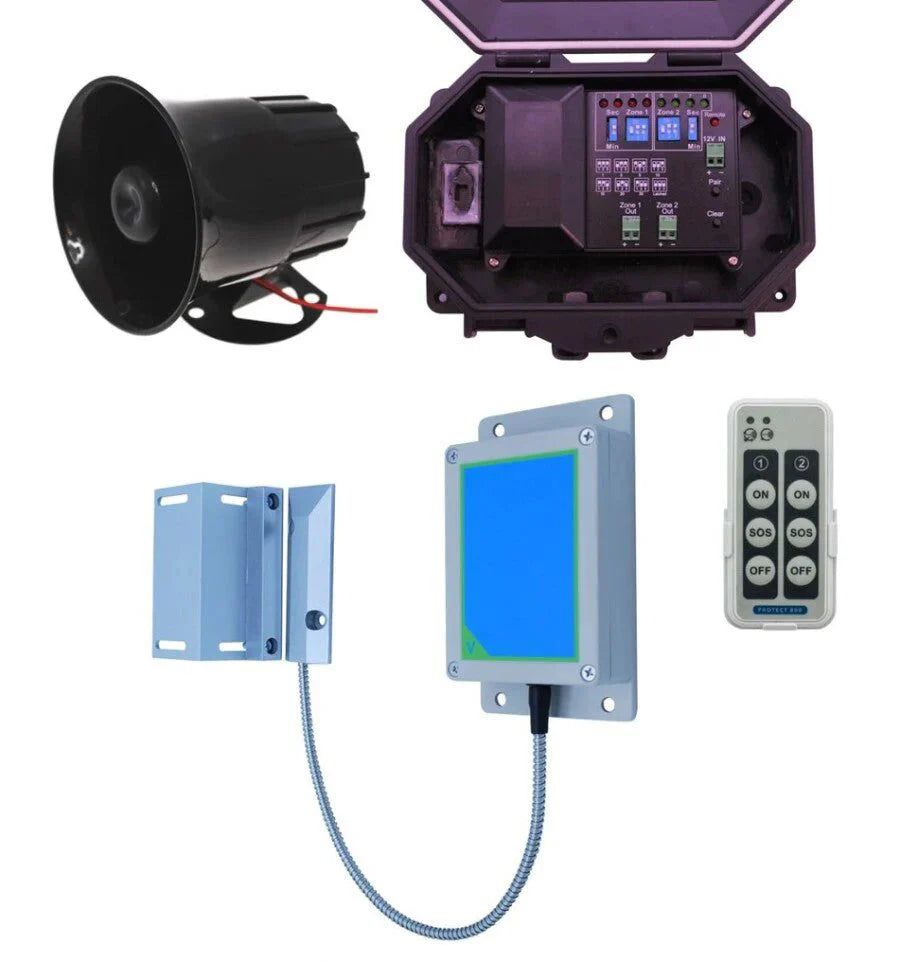

Kit Includes:

• 1 × Outdoor Receiver (P800-WSR/1) with 12 V plug-in transformer

• 1 × Remote Control (P800-WSK/1) with batteries

• 1 × Wireless Gate Contact Kit (004-4300)

• 1 × Weatherproof 6-tone 118 dB Siren

The Protect-800 Wireless Gate Alarm is a versatile, high-security system suitable for gates, doors, or roller shutters, delivering reliable long-range monitoring and immediate audible alerts to protect your property.
