Protect-800 Wireless Commercial Doorbell Kit – Heavy-Duty Push Button with Siren & Flashing Strobe, Fully Adjustable Duration

The Protect-800 Wireless Commercial Doorbell Kit is a robust, versatile alert system ideal for warehouses, yards, commercial premises, and industrial applications. It includes a heavy-duty push button, an 800-metre battery-powered transmitter, a weatherproof outdoor receiver, and a siren with flashing strobe, offering reliable, long-range notifications.

Key Features & Benefits:

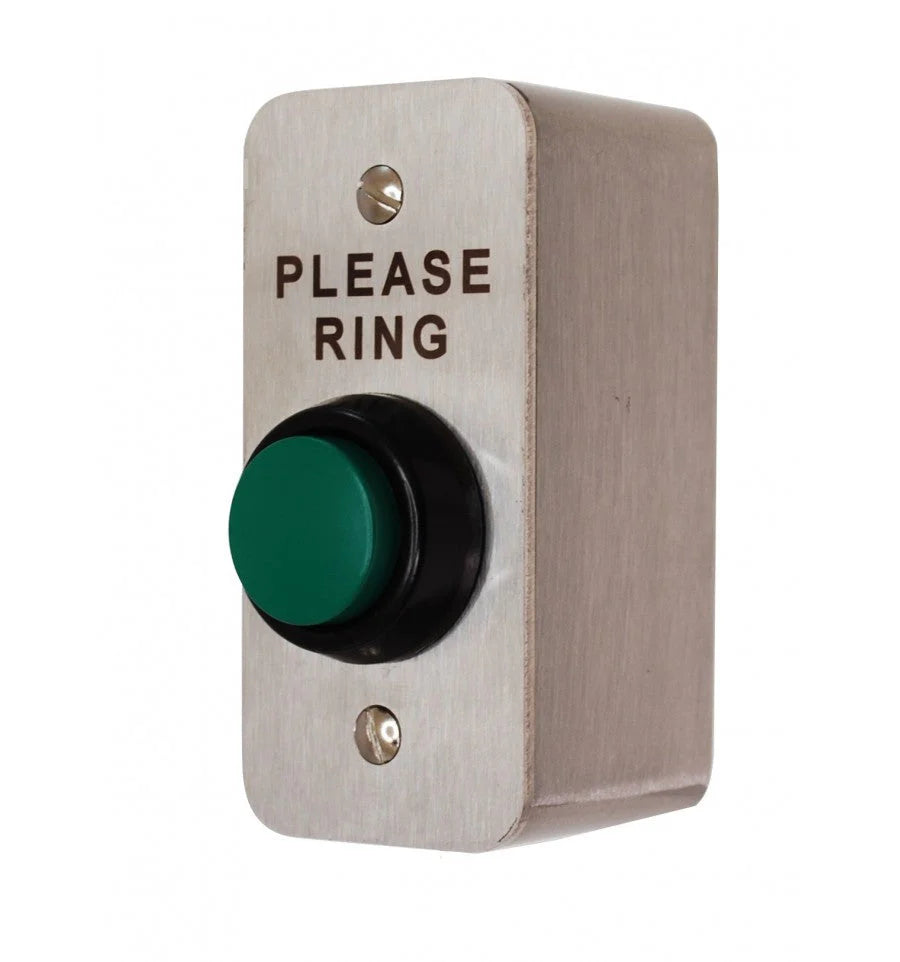

• Heavy-Duty Push Button: Steel construction with “Please Ring” engraving, connected via 3 metres of cable to the transmitter for flexible installation.

• Long-Range Wireless: Transmitter signals reach up to 800 metres line-of-sight (approx. 400–600 metres in typical buildings).

• Fully Adjustable Siren Duration: Controlled via long-range remote, with settings from 1 second/minute up to 30 seconds/minutes or latched ON until disarmed.

• Remote Control & SOS Function: Arm/disarm channels or trigger the siren instantly in emergencies. SOS alerts remain latched ON until manually turned off. Multiple remote controls can be added.

• Expandable System: Add extra push buttons, transmitters, PIR sensors, vehicle probes, gate contacts, or indoor chimes to suit multiple entrances or areas.

• Weatherproof Outdoor Receiver: Plug-in 12V DC powered, fully sealed with cable glands, supports up to four Protect-800 sensors per channel.

How It Works:

1. Press the heavy-duty push button.

2. A wireless signal is sent to the outdoor receiver.

3. If armed, the siren and strobe activate for the preset duration or until remotely disarmed.

4. SOS mode can override settings for urgent security or medical situations.

5. Optional indoor chime receivers can alert staff inside the building regardless of the outdoor receiver’s status.

Technical Specifications:

Outdoor Receiver:

• Weatherproof IP65, 12V DC power supply

• Two channels, up to 4 sensors per channel

• Wireless range: 800 m line-of-sight

• Adjustable output durations: 1, 3, 10, 15, 20, 30 seconds/minutes or latched ON

• Remote-controlled arming/disarming and SOS activation

• Dimensions: 170 × 125 × 60 mm

Remote Control:

• Arm/disarm both channels and trigger SOS alerts

• Wireless range: 800 m line-of-sight

• Feedback LED confirms successful signal

• Powered by 2 × AAA batteries

• Unlimited additional remotes supported

• Size: 85 × 40 × 25 mm

Push Button & Transmitter:

• Heavy-duty steel button, IP67, weatherproof

• Transmitter: 800 m wireless range, powered by 3V CR123A battery (12–18 months)

• Flexible mounting, wired input supported

Siren & Strobe:

• Loud 100 dB siren with flashing strobe

• Fully weatherproof, powered via 12V DC

• Size: 70 × 45 × 120 mm

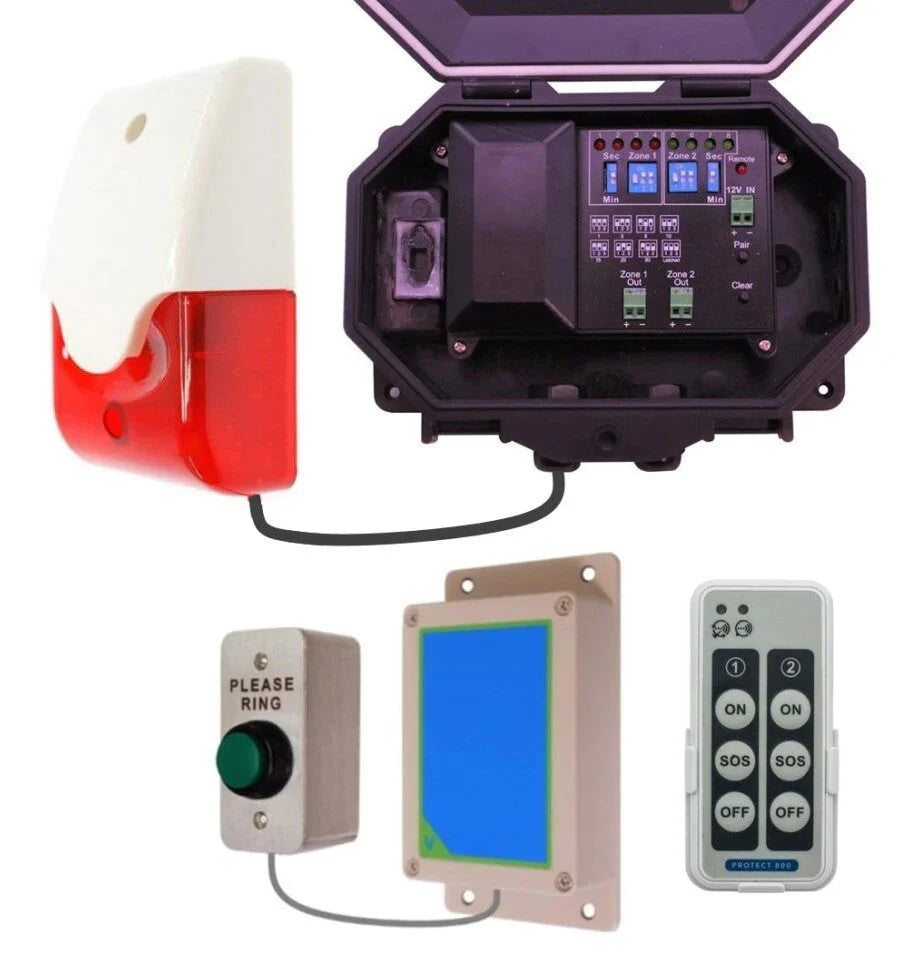

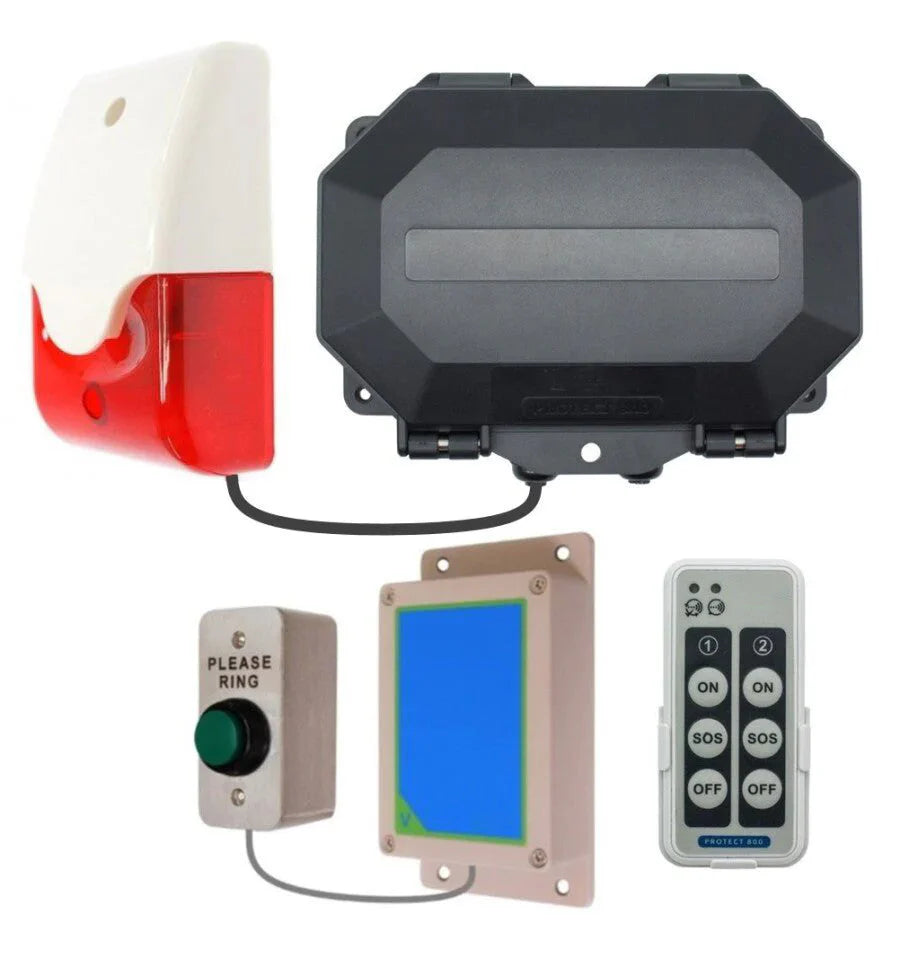

Kit Includes:

• 1 × Outdoor Receiver (P800-WSR/1)

• 1 × Remote Control (P800-WSK/1)

• 1 × 12V DC Plug-in Power Supply

• 2 × AAA Batteries

• 1 × MT Transmitter

• 1 × Heavy-Duty Push Button with 3 m cable

• 1 × Siren & Flashing Strobe

• 1 × Set of Screws

Perfect For:

• Commercial buildings, warehouses, yards, and industrial sites

• Emergency notifications, security alerts, or access control

• Internal or external alerting across multiple entrances
