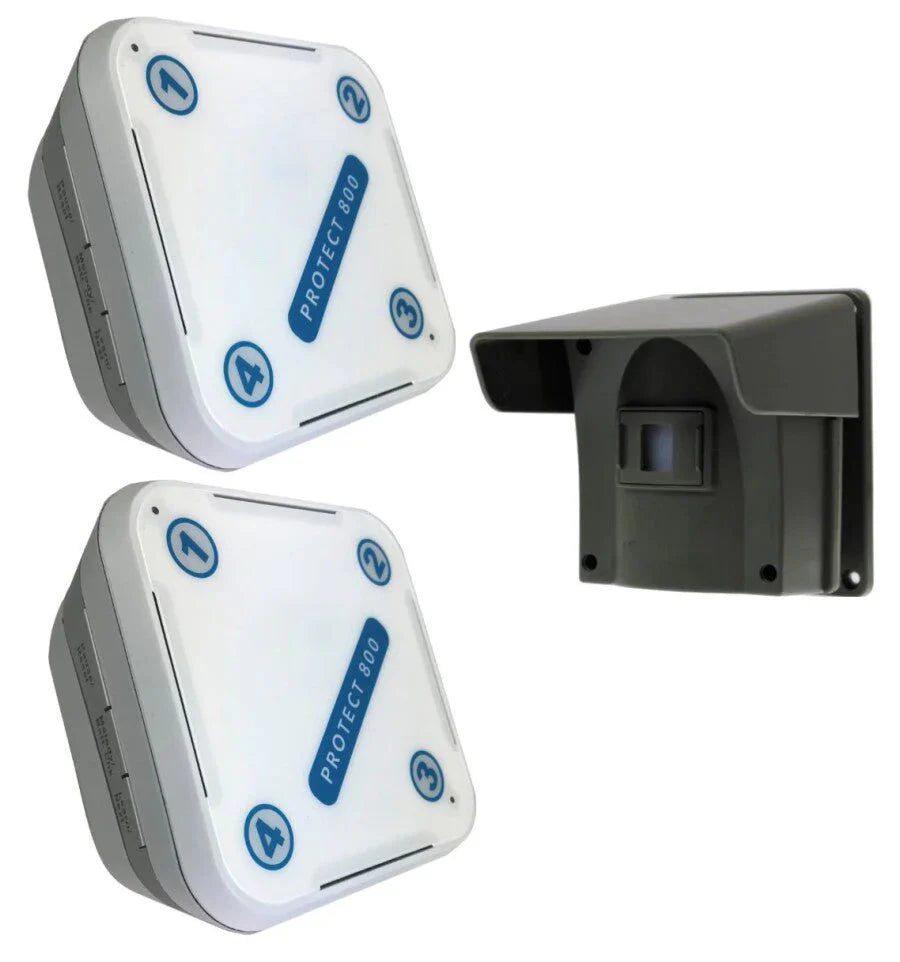

Protect 800 Wireless Driveway Alert System – Twin Receivers with Attachable Lens Caps

The Protect 800 Long-Range (800 m line-of-sight) Wireless Driveway Alert System is designed to help you monitor and safeguard your driveway, yard, garden, home, or commercial property. This twin-receiver system includes:

• 2 × Indoor 4-Channel Wireless Receivers

• 1 × Outdoor Wireless PIR Sensor with attachable lens caps

How It Works:
The weatherproof, battery-powered PIR sensor can be installed around your property to monitor areas such as:

• Driveways

• Gardens

• Sheds and garages

• Fuel tanks

The PIR uses a single-sided beam for simple installation—no alignment with other devices required. It detects both vehicles and people, and optional clip-on lens caps prevent detection of small animals like foxes or cats.

When movement is detected, the PIR sends a wireless signal up to 800 m (around 400–600 m in typical use) to both indoor receivers. The receivers then play your selected chime at the chosen volume, alerting you to visitors or intruders. Additional accessories can be connected to the system for enhanced functionality.

Expandable System:
This versatile system supports additional detectors and accessories, including:

• Extra PIR sensors

• Vehicle detectors

• Gate contacts

• Push buttons

• Other transmitters

• Additional indoor or outdoor receivers (no limit)

Receiver Features:

• 800 m wireless reception

• Adjustable volume (up to 85 dB)

• 32 selectable melodies

• Mains powered (3-pin UK & 2-pin EU transformers supplied)

• Optional battery backup (4 × AAA, not supplied)

• LED indicator for mains power loss

• Low battery alert

• Supports up to 16 detectors per system

• Multiple receivers can be used

• Zone indicators (visual and chime)

• 1 × dry relay output (N/O & N/C) to trigger sirens, bells, or other devices

• 12 V DC output with adjustable duration (5, 30, 60 seconds or 10 minutes)

• Wall or desk mountable

• PIR battery check and optional pause modes

PIR Sensor Features:

• Wireless range: 800 m line-of-sight

• Fully waterproof with sunshade & rain hood

• Detection range: up to 15 m (longer for large objects)

• Detection angle: 9–12° at 12 m

• Adjustable sensitivity

• Supports up to 16 PIRs per system

• Quick and easy installation

• Battery powered (4 × AA included, 9–12 months expected life)

• Low battery warning and status check via receiver

• Effective vehicle detection

• Operation modes: 24-hour or night-only

Lens Cap Options:

• Pencil Beam: Narrow beam to avoid small/medium animals

• Medium Beam: Narrower beam for better vehicle detection while ignoring small animals

• No Cap: Maximizes vehicle detection

Installation Tips:

• Avoid pointing PIRs directly at the rising sun

• PIRs can be discreetly hidden in structures without affecting wireless range

Operational Flexibility:
Each PIR can operate independently: one can run all day with a subtle chime, while the other only triggers at night with a louder alert—ideal for protecting workshops or sensitive areas. Additional PIRs and receivers can be added to meet your needs.

Kit Includes:

Receivers:

• 2 × Protect 800 Wireless Receivers

• 2 × Optional wall brackets

• 2 × 3-pin UK & 2-pin EU plug-in transformers

• 1 × Manual

PIR Sensor:

• 1 × Protect 800 Wireless PIR

• 4 × AA batteries

• 1 × set of attachable lens caps

• 1 × sun & rain hood

• 1 × screwdriver

• 1 × set of screws

• 1 × Manual

Specifications:

Receiver:

• Wireless range: 800 m line-of-sight

• Volume: Adjustable up to 85 dB

• Melody options: 32

• Battery backup: 4 × AAA (not supplied)

• Dry relay output: 1 (N/O & N/C)

• 12 V DC output with adjustable duration (5, 30, 60 s or 10 min)

• Mounting: Wall or desk

• Maximum detectors: 16

• Multiple receivers supported

• Frequency: 869.400–869.650 MHz

• Input: 12 V DC, 500 mA

PIR Sensor:

• Wireless range: 800 m line-of-sight

• Detection range: up to 15 m

• Detection angle: 9–12° at 12 m

• Adjustable sensitivity

• Supports up to 16 PIRs per system

• Lens caps: Pencil, Narrow, Wide

• Battery powered: 4 × AA (9–12 months)

• Weatherproof: Yes

• Vehicle detection optimized without cap

• Size with bracket & hood: 120 × 80 × 100 mm

• Operating temperature: -20 °C to 50 °C

The Protect 800 Driveway Alert System offers a scalable, reliable solution for driveway and property monitoring, with flexible PIR settings and dual indoor receivers for complete coverage.
