Security Floodlight & Adjustable Siren Long Range Driveway PIR Alarm with Outdoor Receiver

A powerful Protect-800 Long Range Wireless Driveway Alarm System featuring an Outdoor Receiver, Bright Security Floodlight, Adjustable Siren, and 2 Outdoor PIR Sensors.

This unique system offers full flexibility—allowing you to control the Floodlight and Siren independently via the long-range remote control. Each zone can be armed, disarmed, or triggered separately, giving you complete customisation.

Flexible Zone Control

• Pair the Floodlight with PIR 1 (Zone 1) and set its duration to your choice (e.g., 5 or 15 minutes).

• Pair the Siren with PIR 2 (Zone 2) and set a different duration (e.g., 10 seconds or 3 minutes).

• Control each zone independently with the supplied long-range remote.

• Both zones can be activated simultaneously or individually, depending on your needs.

• Use the SOS button on the remote to instantly activate one or both zones—ideal for emergencies. In SOS mode, the Floodlight or Siren remains ON until manually switched off.

• Optionally, pair both PIRs into a single zone so that the Floodlight and Siren operate together.

How It Works

• The battery-powered PIR sensors can be installed up to 800m away (typically 400–600m in real-world conditions).

• When triggered by movement, the PIR sends a wireless signal to the Outdoor Receiver.

• If armed, the Receiver activates the assigned Floodlight or Siren.

• The owner can switch them OFF at any time using the remote control.

• The remote can also be used to manually activate either accessory using the SOS function.

Outdoor Receiver

• Fully weatherproof and powered by a 12V plug-in transformer.

• Two independent 12V output channels, each capable of handling up to 4 Protect-800 sensors.

• Works with PIRs, Vehicle Probes, Gate Contacts, MT Transmitters, and more.

• Adjustable output duration: 1 second, 3s, 10s, 15s, 20s, 30s, or Latched ON (until disarmed).

Remote Control Features

• Arm/disarm each channel independently.

• Trigger emergency SOS mode (latches output until turned OFF).

• LED feedback indicator confirms successful operation.

• Operating range: up to 800m line of sight (approx. 400–600m in most situations).

• Powered by 2 x AAA batteries (supplied).

• Unlimited remotes can be added.

PIR Sensor Features

• Wireless range: 800m (line of sight).

• Detection range: up to 15m (extendable with large objects).

• Waterproof & durable with sunshade and rain hood.

• Adjustable sensitivity + interchangeable lens caps:

  • Pencil Beam (narrow, avoids small animals).

  • Medium Beam (reduces false alarms, ideal for vehicles).

  • No Cap (wide detection, best for vehicles).

• Day/night mode options:

  • 24-hour detection.

  • Night-only detection.

• Low battery warning and status check via Receiver.

• Battery life: 9–12 months (4 x AA batteries included).

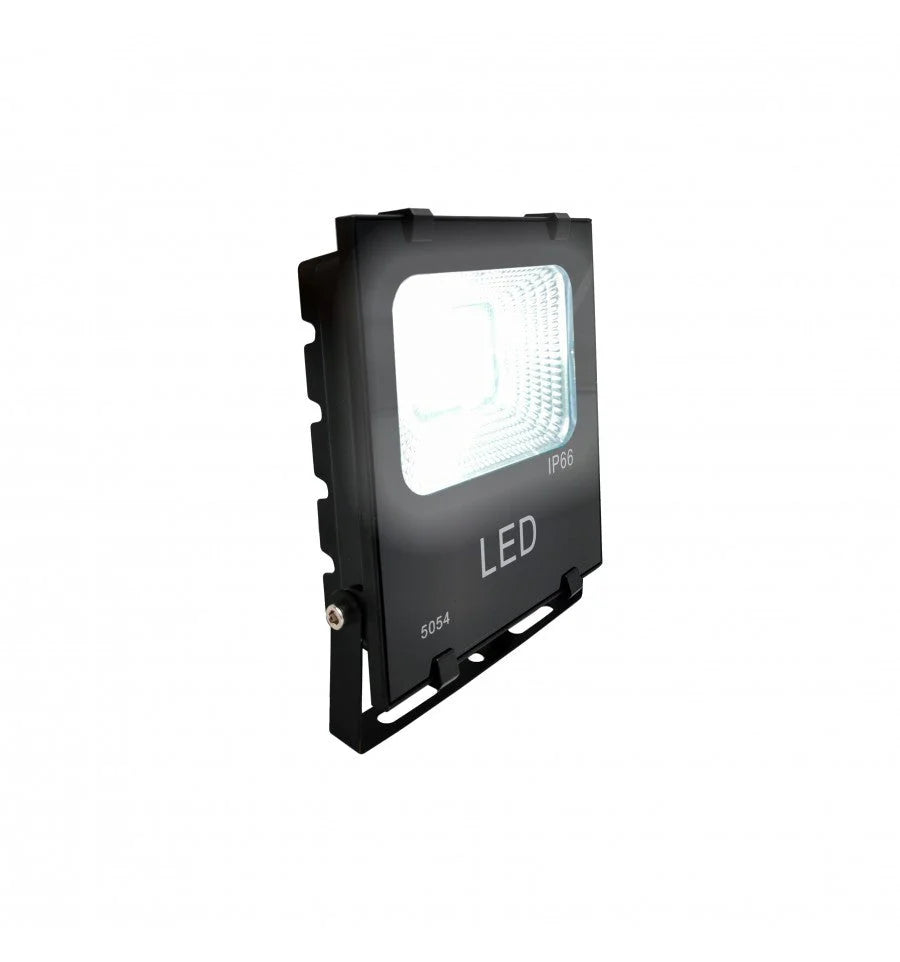

Floodlight

• 12V DC, 20W output.

• Weatherproof, black finish.

• Adjustable mounting bracket.

• Size: 155 (W) x 180 (H) x 65 (D) mm.

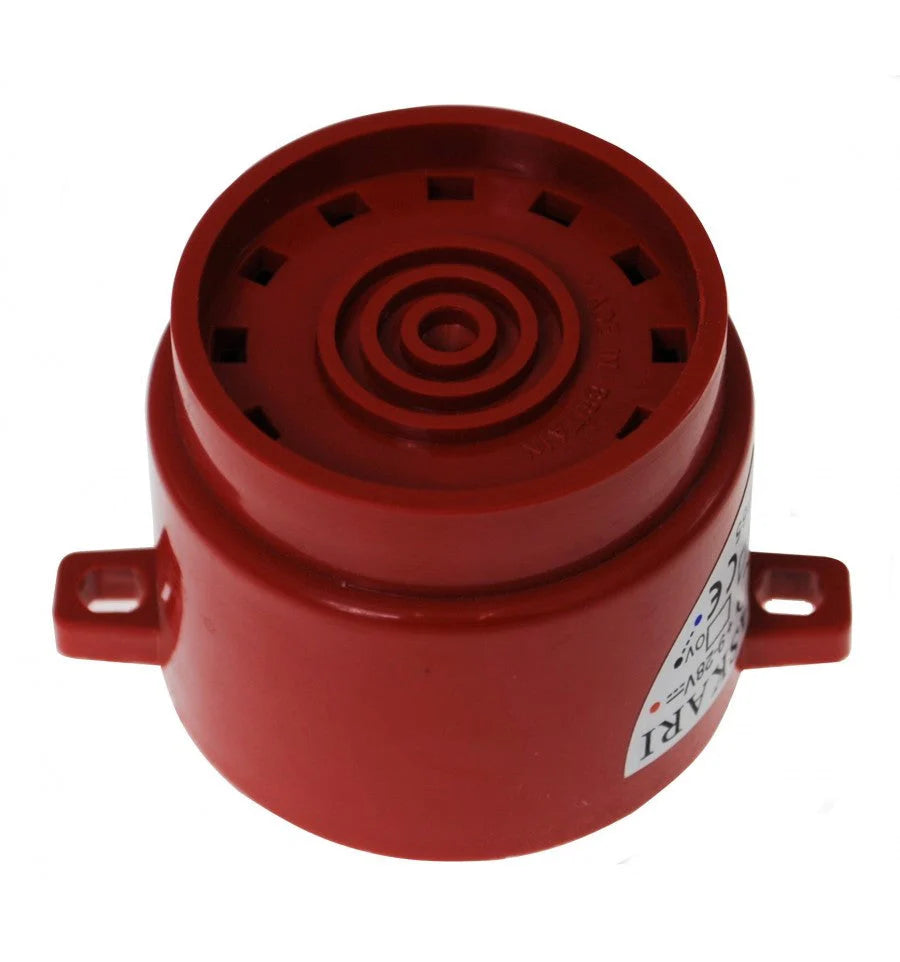

Adjustable Siren

• 12V DC input (9–28V compatible).

• 32 selectable tones with adjustable volume (0–106dB).

• Weatherproof (IP65).

• Size: Rear Ø 50mm, Front Ø 25mm, Height 45mm, Depth 32mm.

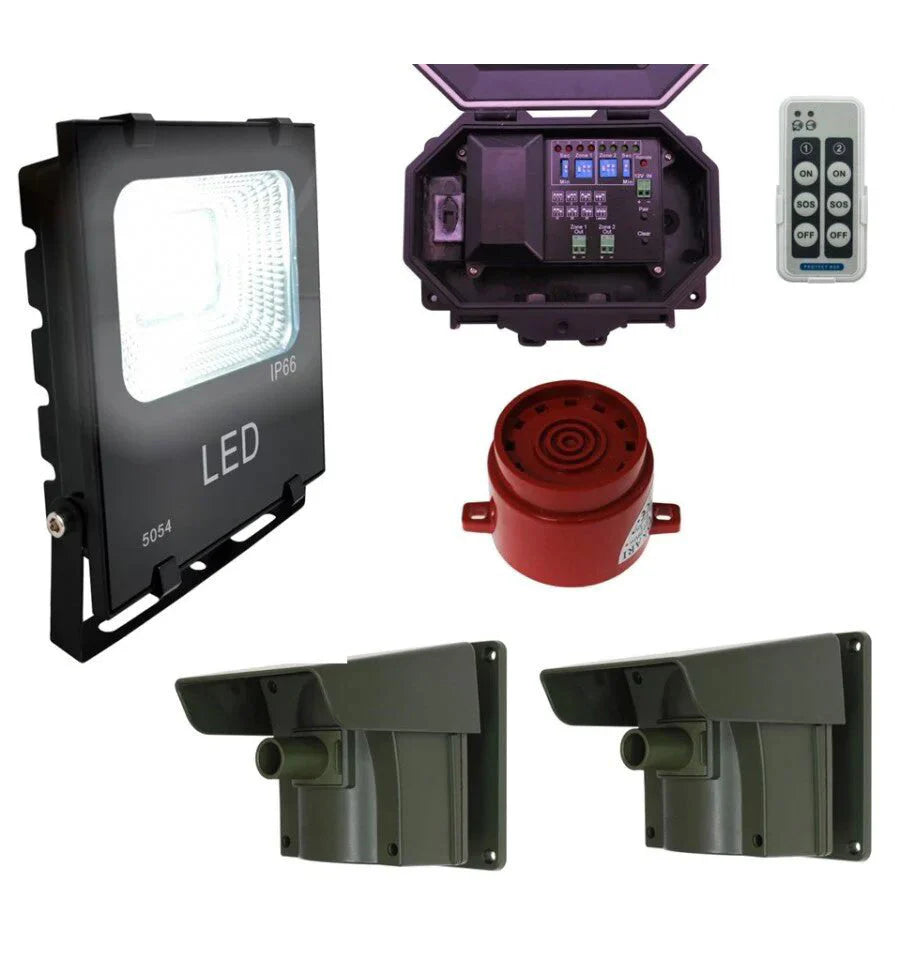

Kit Includes

• 1 x Outdoor Receiver (P800-WSR/1)

• 1 x Remote Control (P800-WSK/1)

• 1 x 12V DC Power Supply

• 2 x Protect-800 PIR Sensors (with brackets, lens caps, sun/rain hoods & batteries)

• 1 x 12V Security Floodlight

• 1 x 12V Adjustable Siren

• 2 x AAA Batteries (for remote)

• Fixing Screws
