Wireless Commercial Siren Kit – Heavy Duty Push Button & Loud 6-Tone Siren with Adjustable Duration

The Protect-800 Wireless Commercial Siren Kit is a complete system designed for warehouses, yards, and other commercial environments. It features a heavy-duty push button, an 800 metre battery-powered transmitter, a unique wireless receiver with fully adjustable output durations, and a loud 6-tone 118 dB siren.

Push Button:

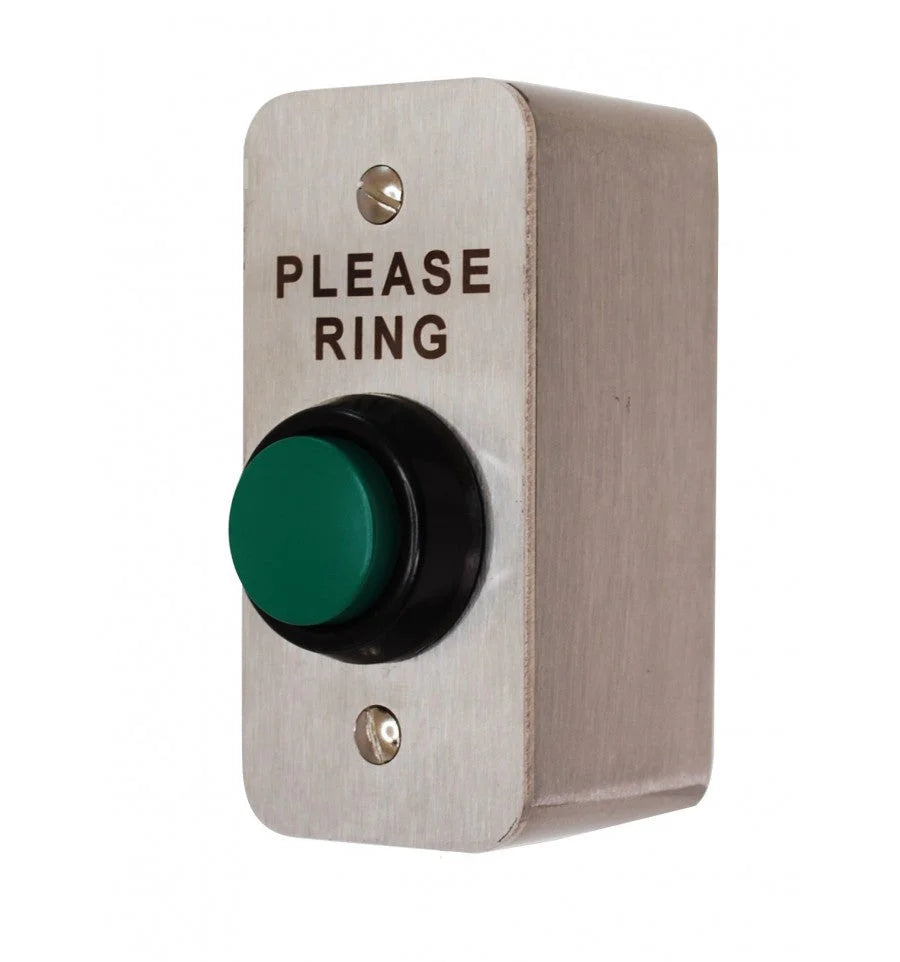

The steel push button, laser-etched with “Please Ring,” is connected via 3 metres of cable to a battery-powered wireless transmitter housed in a weatherproof box. This allows flexible positioning of the push button and transmitter for optimal placement. The wireless transmission reaches up to 800 metres line-of-sight (typically 400–600 m in most settings). The transmitter uses a 3 V CR123A battery (included) with a 12–18 month lifespan. Additional push buttons and transmitters can be added to cover multiple entrances.

Operation:
Pressing the push button sends a signal to the outdoor receiver. When armed, the siren activates for the selected duration, which can also be adjusted or turned off using the long-range (800 metre) remote control. The SOS button on the remote can trigger the siren immediately, which will remain latched on until manually turned off—ideal for medical or security emergencies. A secondary siren can be added on channel two for separate emergency alerts.

The weatherproof outdoor receiver is powered by a 12 V plug-in transformer and can also integrate internal chime receivers for notifications inside the building.

Duration Settings:
The siren duration is fully adjustable via internal dip-switches:

• 1 second or minute

• 3 seconds or minutes

• 10 seconds or minutes

• 15 seconds or minutes

• 20 seconds or minutes

• 30 seconds or minutes

• Latched ON (until disarmed with the remote)

Outdoor Receiver:

• Weatherproof: Yes

• Power Supply: 12 V 5 A DC

• Channels: 2

• Sensors per channel: 4 (PIRs, vehicle probes, MT transmitters, gate contacts, PIR in bird box, transmitter boards)

• 12 V DC outputs: 2

• Operating range: 800 metres line-of-sight

• Arming/disarming: Remote control

• Size: 170 × 125 × 60 mm

• Frequency: 869.400–869.650 MHz

Remote Control:

• Arm, disarm, or SOS activation for each channel

• Feedback LED confirms successful transmission

• Operating range: 800 metres line-of-sight

• Powered by 2 × AA batteries (included)

• Unlimited number of additional remotes can be paired

Siren:

• Voltage: 12 V DC

• Current: 310 mA

• Sound level: 118 dB

• Tone: 6-tone

• Size: 101 × 96 mm

• Colour: Black

Push Button Specs:

• Size: 85 × 40 × 40 mm

• Contact type: NO or NC, sealed

• Weatherproof: IP67

Transmitter Specs:

• Wireless range: 800 metres line-of-sight

• Power: 1 × 3 V CR123A battery (12–18 months)

• Size: 65 × 33 × 15 mm

• Wired input: Yes, N/O momentary volt-free

Mounting Box:

• Material: Plastic, IP65

• External: 150 × 85 × 34 mm

• Internal: 106 × 76 × 28 mm

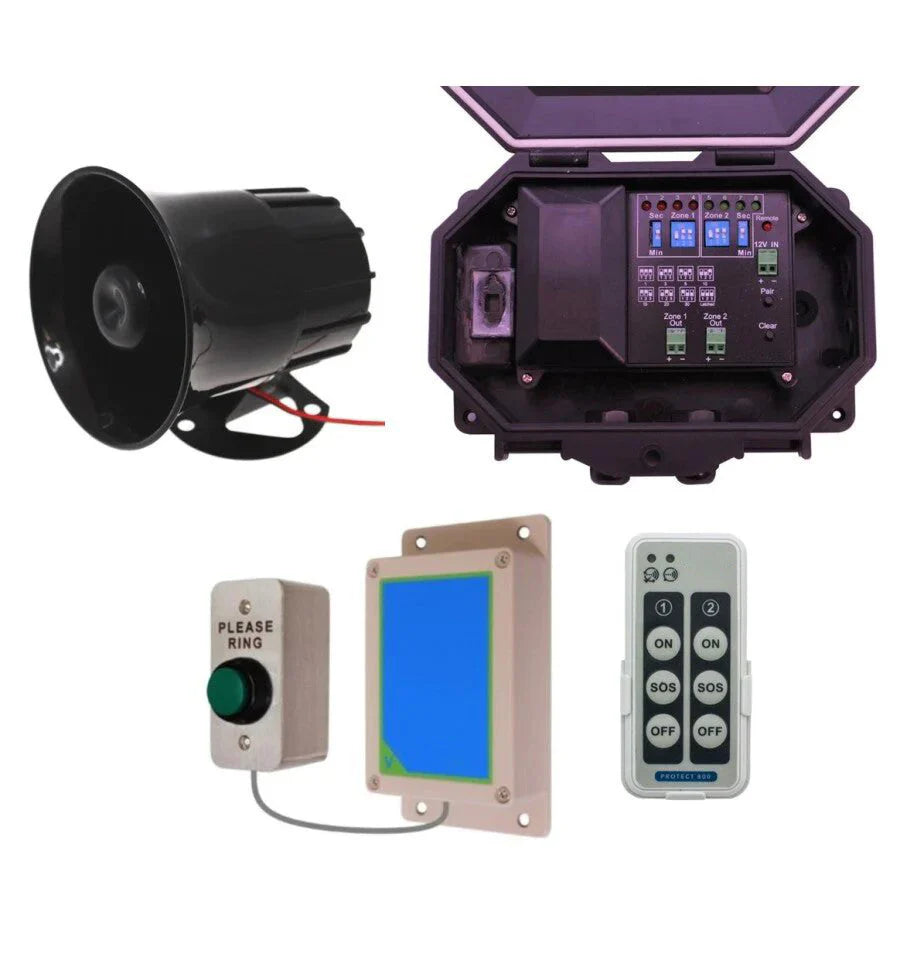

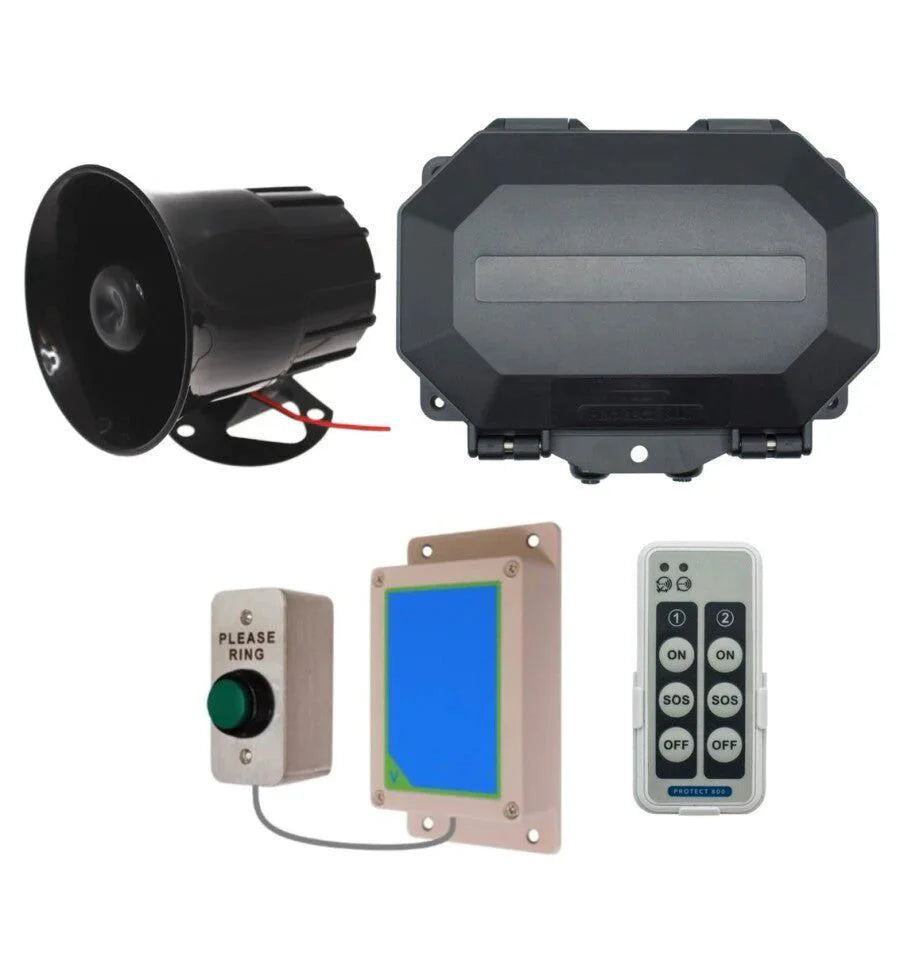

Kit Includes:

• 1 × Outdoor Receiver (P800-WSR/1)

• 1 × Remote Control (P800-WSK/1)

• 1 × 12 V DC plug-in power supply

• 2 × AAA batteries

• 1 × MT Transmitter in box

• 1 × Heavy Duty Push Button with 3 m cable

• 1 × Set of screws

• 1 × 118 dB 6-tone siren
